Signet WMC Wall Mount Paging Microphone

by Signet
£54.99 (inc. VAT)
SKU WMC
Version

DETAILS

This is a wall-mount microphone with push-to-talk designed for public address applications in warehouse, factories, schools & environments alike.

The Omni-directional microphone comes on a double-gang steel wall plate which has screw holes to permanently fix the microphone into place; ideal for public environments where space is at a premium or to avoid theft.

  • Omni-directional microphone
  • Double-gang, (145mm x 85mm), steel wall plate
  • Double-gang back box is available as a separate purchase
  • Push-to-talk button
  • Closed element contact version
  • Open element contact version is also available (Signet OMC)

Closed Circuit

  • Designed for 1x mic per input.
  • Offers a quieter signal than open.

Open Circuit

  • Ideal when connecting multiple microphones into one input
  • Noisier than the closed circuit.

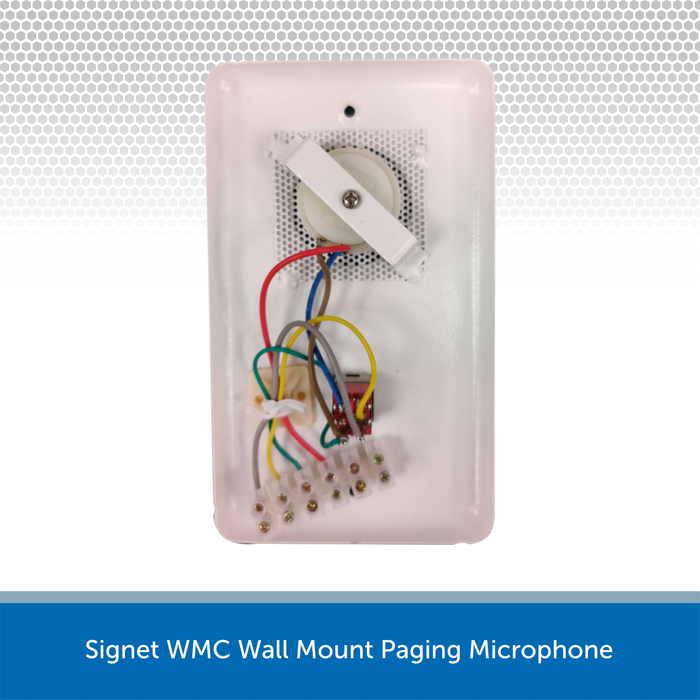

Both microphones are essentially the same except for a difference in the wiring at the back. They can be easily changed from closed to open and vice versa with a simple wiring tweak.

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS

    Signet WMC/OMC Wall Mount Microphone

    • Impedance: 200Ohm
    • Switch Contacts: Closed (WMC) / Open (OMC)
    • Controls: 1 x Push Button (Press to talk)
    • Connector Type: 5 way Terminal strip
    • Weight: 1kg
    • Dimensions: 145mm x 85mm

    Signet Wall Mount Microphone - PDF Downloads

    Download the Spec Sheet HERE
