Q Acoustics E120 In-Wall Wireless HiFi System, Bluetooth, DAB+ FM Radio & In-Ceiling Speakers

Save 22% Save 22%
Original price £499.00 (inc. VAT)
Original price £499.00 (inc. VAT) - Original price £499.00 (inc. VAT)
Original price £499.00 (inc. VAT)
Current price £389.00 (inc. VAT)
£389.00 (inc. VAT) - £389.00 (inc. VAT)
Current price £389.00 (inc. VAT)
SKU QI0132
E120 Panel Colour: White
Number of Speakers: 2 Speakers
Speaker Type: STANDARD - Q Install Qi65CB
DETAILS

The E120 HiFi is a true integrated audio system using ceiling speakers from Q-Install, AudioKraft and Lithe Audio.

Q Acoustics are world-renowned for there audio expertise and they have put it to good use with this high-quality built-in class-D stereo amplifier. Delivering up to 2 x 25W of RMS power. Enough power to fill any room with dynamic immersive stereo audio.

Choose your in-ceiling speaker package to suit your budget or purchase the amplifier control panel on its own. Connect any pair of passive speakers, including cabinet designs between 6 - 8 ohms. Find our full range of home audio speakers HERE>

Bluetooth Wireless Connectivity

Wireless Bluetooth streaming using version 5.0 with an improved range of up to 30 meters.

Connect your computer, iPad, or phone to enjoy your music. Also, enjoy hands-free playback with Amazon Alexa or Google Home devices using Bluetooth connectivity.

DAB+ Digital / FM Radio

Built-in DAB+/FM digital radio with up to five radio presets make it super easy to access your favourite radio stations with a single press of a button or by using one of the two remote controls.

Q Acoustics E120 In-Wall Wireless HiFi System, Bluetooth, DAB+ FM Radio

E120 HiFi System - Key Features

  • Easy to fit installation in any room in your home or summer houses
  • Clutter-free design, a true integrated audio solution
  • Built-in Class-D stereo amplifier serving up 2 x 25W of power
  • Bathroom or Kitchens, not a problem - IP54 splash-proof rated
  • x 2 Infrared Remote Controls ( x 1, IP67 Splash-proof)
  • Wireless streaming from your devices - Bluetooth 5.0 up to 30 meters range
  • DAB+ & FM radio with one-touch operation
  • Splashproof, touch-sensitive control panel
  • Full-colour display 3.2 inches in size
  • Subwoofer audio output
  • Analog inputs for TV connection

5 year warranty with e120 amplifier by Q Acoustics

Splash Proof IP54 Rated - Perfect for Kitchens, Bathrooms, or Hot Tub Summer Houses

The E120 touch control panel with colour display is IP54 rated which enables the system to be installed in rooms with high humidity and where water ingress may be a risk. Using the IP67-supplied splashproof remote control you can listen to your favorite music and radio stations while relaxing in the bath or preparing an evening meal.

Easy Fit Installation: The control panel is easy to fit using the supplied 47mm 2 gang dry lining back box. A dawdle to install for any electrician or DIY enthusiast.

What is an IP Rating? Read our handy guide  HERE>


Connect Your TV For An Immersive Audio Experience

The E120 has direct digital input via a 3.5mm optical input and analogue connections for connecting your TV. In addition, a rear analogue subwoofer output can be configured for extra low-end sub-bass sounds from any active subwoofer using a 3.5mm to RCA cable.

If you need a cable to connect the E120 to your TV you can find it HERE>


Flexible Speaker Options To Suit Your Budget

Choose from Standard, Mid-Range and Premium In-ceiling Speakers

Select an in-ceiling speaker package to suit your project's budget. All 3 options are sure to fill your living space with crystal-clear audio.

(See 'SPEAKER INFORMATION' tab for detailed specifications)

Premium HiFi Speakers -Audiokraft PCS-60 (60W rms)

  • Slimline magnetic grille
  • Frameless, simple, unobtrusive design
  • 60W, Low Z (8ohm)
  • Fast-fix solution (dogleg design)
  • 6 inch 2-way co-axial speaker system
  • Front accessible environment EQ
  • Titanium dome tweeter
  • Kevlar woven driver
  • Quick & easy to install

Mid-Range Speakers - Audiokraft PCS-40 (40W rms)

  • 6 inch 2-way coaxial - 40W Speaker
  • Polypropylene Cone
  • Butyl Rubber Surround
  • Quality Metal Construction
  • Extremely Fast Fitting Design
  • Easy Fit Magnetic Front Grille

Standard Speakers - Q Install Qi65CB (50W rms)

  • Suited to low to medium level music applications
  • Designed for dry environments
  • Low-profile magnetic grill and ultra-thin bezel
  • Quick and easy to install
  • Made from 'UL94' flame retardant materials

(See 'SPEAKER INFORMATION' tab for detailed specifications)


What's Included with the Q Acoustics E120?

  • Q Acoustics E120 Integrated In-Wall Amplifier (Black or White)
  • Add 2 or 4 x In-Ceiling Speakers (choose Standard, Mid-rage or Premium Speakers)
  • IP67 Splash Proof Infrared Remote Control
  • Standard Infrared Remote Control
  • 14 Metres of Speaker Cable with the 120 & 2 Speaker Kits (Additional 20m cable with 4 speaker kits = 34 Metres in total)
  • Power Supply (5M)
  • 47mm 2 Gang Dry Lining Back Box

Shop Now > E120 HiFi Amplifier Only (no speakers)

Shop now for E120 Amplifier Only, no speakers

Shop Now > E120 HiFi System, Outdoor Wall Mount Speakers by Polk Audio Speakers

Shop now for E120 HiFi System with Polk Wall Mount Speakers

Shop now for Bathroom E120 HiFi System
Read our IP rating blog post now

Q Acoustics - PDF Brochure Download HERE>

    SPECS & DOWNLOADS

    Q Acoustics - PDF Brochure Download HERE>

    E120 Brochure Download - HERE>

    E120 User Manual Download - HERE>

    E120 Installation Manual Download - HERE>


    STANDARD - Q Install/Q Acoustics In-Ceiling Speakers HERE>

    MID-RANGE - Audiokraft PCS-40 HERE>

    PREMIUM - Lithe Audio 01556 HERE>


    Q Acoustics E120 In-Wall Amplifier Specification

    Audio Sources: DAB / DAB+ / FM with RDS

    Bluetooth: Version 5.0, A2DP

    Analogue Input:

    • Type: 3.5mm Stereo
    • Sensitivity: 350mV
    • Max Level: 1.5V
    • Impedance: 10k ohm

    Optical Input:

    • Type: Mini TOSLINK
    • Resolution: 16bit 48kHz

       Speaker Outputs: Left & Right, stereo or dual mono

      Analogue Output:

      • Type: 3.5mm Stereo
      • Modes: Fixed or variable
      • Max level: 670mV

      Amplifier:

      • Type: Class D
      • Continuous Power: 2 x 25W @ 6 ohm
      • THD: 0.07% @ 1W / 0.2% @ rated power
      • SNR: >75dB @ Rated power
      • Frequency Response: 20Hz - 20Hz +/- 1dB

      IP Ratings:

      • E120 Wall Panel: IP54
      • Splash Proof Remote: IP67

      Control:

      • Touch sensitive buttons
      • Infra-red remote control
      • Bluetooth AVRCP v1.6: Play, pause, skip, track, artists, album name

      Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish

      Alarms: x2 once, daily, weekdays, weekends

      Power Supply:

      • Input: 100 - 240V AC 50/60 Hz
      • Output: 22V DC 1.5amps
      • Dimensions (HxWxD): 30mm x 50mm x 115mm

      Power Consumption:

      • Typical: 10W
      • Standby: <1W
      • Deep Standby: <0.5W

      Wall Panel:

      • Net Weight: 0.251kg
      • Dimensions (HxWxD): 91mm x 151mm x 33mm

      Speaker Cable Supplied:

      • Gauge: 19 AWG
      • Lengths: 14m (2 speaker kits), 34m (4 speaker kits)

      Power Cable Supplied:

      • Gauge: 16 AWG
      • Length: 5m
      • Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female

      Q Install QI65CB Ceiling Speakers

      • Tweeter: Swivel
      • Tweeter diameter: 0.75" (19mm)
      • Woofer diameter: 6.5"
      • Power handling (program): 15-60W
      • Impedance (nominal) ohms: 8ohm
      • Sensitivity dB spl (2.83V, 1m): 89
      • Response(Low freq.) -3dB Hz: 75
      • Maximum rear depth: 79mm
      • Size(Round grilles): 232mm dia
      • Cut-Out Size: 203mm

      AudioKraft PCS-40 Ceiling Speakers (Mid-Range Speakers)

      • Power Output: 40W rms
      • Impedance: 8 Ohms
      • Frequency Response: 70Hz~20Khz
      • Efficiency: 87dB
      • Dimensions: 227(Ø) x 60(D)mm
      • Cut Out Size: 210 (Ø) mm

      AudioKraft PCS-60 Ceiling Speakers (Premium Speakers)

      • Nominal Impedance:    8Ω
      • Power (RMS):     60W
      • Driver:     6.5 inch
      • Driver Material:     Kevlar Woven Cone
      • Single Tweeter:     0.75 inch
      • Tweeter Material:     Titanium Dome
      • Frequency Response (±3db):     60 Hz-20 kHz
      • Efficiency:     90dB
      • Colour:     White (RAL 9010)
      • Dimension:     Ø 227mm x 87mm
      • Cut-out Size:     Ø 210mm
      • Weight (Net):     1.52kg
      • Weight (Gross):     2.00kg
      SPEAKER INFO

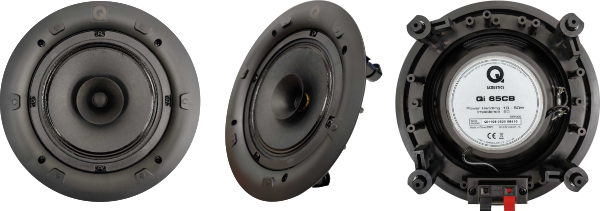

      Standard Speakers - Q Install Qi65CB (50W rms)

      The Q Install QI65CB by Q Acoustics is a 6.5 inch in-ceiling speaker designed for a range of custom installs in the home or commercial environment.

      Thanks to a low-profile magnetic grille and ultra-thin bezel, the QI65CB offers a discreet appearance whilst still retaining excellent sound quality.

      Operates on 8 Ohms with a power handling of 50W ideal for low to medium level audio applications.

      The Q Install QI65CB is made from 'UL94' flame retardant materials ideal for installs into new-build homes and commercial/public environments.

      Q Install In-ceiling speakers

      QI65CB Key Features

      • Ideal for low to medium level music applications
      • 6.5 inch - 8 Ohms 50W
      • Less than 84 mm deep
      • Low-profile magnetic grill and ultra-thin bezel
      • Quick and easy to install
      • Made from 'UL94' flame retardant materials

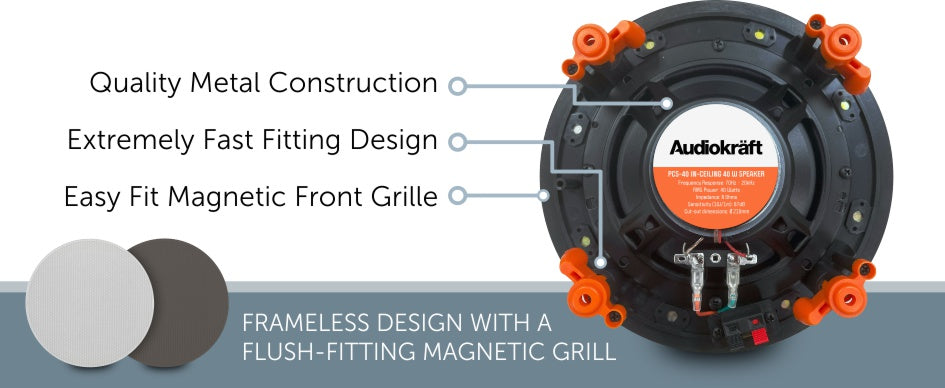

      Mid-Range Speakers - Audiokraft PCS-40 (40W rms)

      AudioKraft PCS-40 is a discrete 40W low impedance frameless, flush-fitting ceiling speaker designed for high quality music reproduction in background and foreground applications.

      AudioKraft PCS-40 - Premium 40W 6.5 inch, 8 Ohm In-Ceiling Speaker

      The frameless design of the PCS-40 ceiling speaker makes it one of the most discrete ceiling speakers able to match most decors.

      With its Polypropylene cone and butyl rubber surround the speaker is suited to a wide variety of applications where high quality background or foreground music is required, such as, restaurants, bars, retail, residential or even schools and colleges.

      Constructed in metal and utilising a 'dog-leg' installation, this product is extremely fast fitting and accessible from the front with accessible environmental EQ controls.

      The PCS-40 can be used as part of a 2.1, 5.1 or 7.1 speaker system for a professional home entertainment install or in a commercial environment where a little extra volume and depth is required. The PCS-40 speaker works great with high grade amplifiers from major bands such as Yamaha, Sony, Denon and more.

      AudioKraft PCS-40 Ceiling Speaker Key Features

      • Frameless, simple, unobtrusive design
      • 40W, Low Z (8ohm)
      • Fast-fix solution (dogleg design)
      • 6 inch 2-way co-axial speaker system
      • Magnetic front grille
      • Front accessible environment EQ
      • Plastic rear housing/ enclosure

      Premium HiFi Speakers - Audiokraft PCS-60 (60W rms)

      AudioKraft PCS-60 is a discrete 60W low impedance frameless, flush-fitting ceiling speaker designed for high quality music reproduction in background and foreground applications.

      Q Acoustics E120 Installed Wireless HiFi System, Bluetooth Streaming

      The frameless design of the PCS-60 ceiling speaker makes it one of the most discrete ceiling speakers able to match most decors. With its woven Kevlar cone and butyl rubber surround the speaker is suited to a wide variety of applications where high quality background or foreground music is required.

      Constructed in metal and utilising a 'dog-leg' installation, this product is extremely fast fitting and accessible from the front with accessible environmental EQ controls.

      Audiokraft PCS-60 Passive Ceiling Speaker Key Features

      • Frameless, simple, unobtrusive design
      • 60W, Low Z (8ohm)
      • Fast-fix solution (dogleg design)
      • 6 inch 2-way co-axial speaker system
      • Magnetic front grille
      • Front accessible environment EQ
      • Plastic rear housing/ enclosure
