Q Acoustics E120 Bluetooth & DAB Wall Panel, Ceiling Speakers & Q Acoustics 3060 Subwoofer

Original price £745.00 (inc. VAT) - Original price £745.00 (inc. VAT)
Original price £745.00 (inc. VAT)
£745.00 (inc. VAT)
£745.00 (inc. VAT) - £745.00 (inc. VAT)
Current price £745.00 (inc. VAT)
SKU QI0120-QA3568-2
Panel Colour: Black
Number of Ceiling Speakers: 2
Subwoofer Colour: Arctic White
DETAILS

This bundle is a fantastic-sounding and modern-looking home audio system perfectly suited for Music Playback, TV, Film, and Video Games. It provides crystal-clear audio for any application and is easy to use thanks to the intuitive and sleek E120 Panel.

This bundle is designed to be installed in any lounge or media room to provide superb-sounding audio for any playback application.

Included:

  • 1x Q Acoustics E120 Panel (Black or White)
  • 2 or 4 Audiokraft PCS-60 Speakers
  • 1x Q Acoustics 3060S Subwoofer (Black, White, Grey, Walnut)

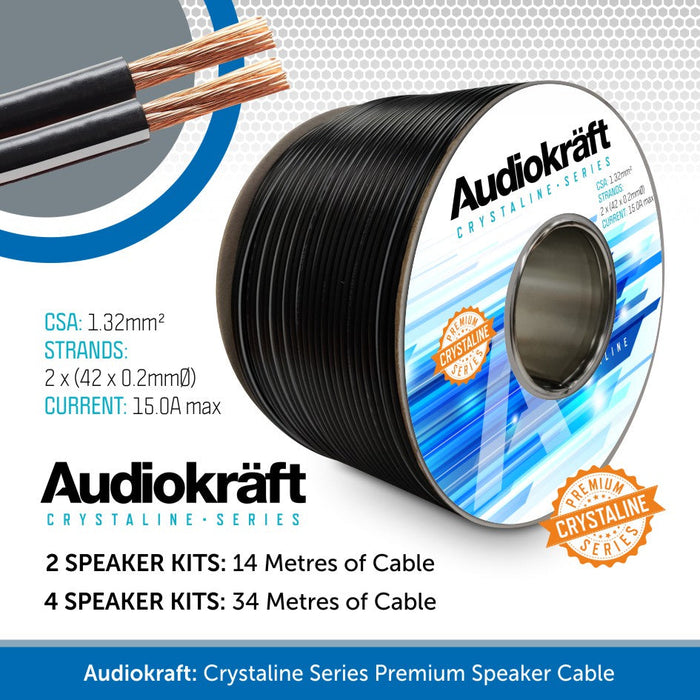

  • Speaker Cable (14m for 2 speaker Kits, 34m for 4 speakers)
  • 1x 6m 3.5mm Jack - Phono Cable

The Audiokraft PCS-60 Ceiling Speakers provide a clear and accurate representation of the audio source, while the 3060S Subwoofer provides a deep, booming low-frequency - perfect for films and video games. The Q Install E120 Panel provides a modern and easy method of playing music, whether via a smartphone, smart home system or DAB.

E120 installed HIFI system by Q Acoustics

The E120 HiFi is a true integrated audio system using ceiling speakers from Q-Install and the Audiokraft PCS premium range.

Q Acoustics are world-renowned for your audio expertise and they have put it to good use with this high-quality built-in class-D stereo amplifier. Delivering up to 2 x 25W of rms power. Enough power to fill any room with dynamic immersive stereo audio.

Choose your in-ceiling speaker package to suit your budget or purchase the amplifier control panel on its own. Connect any pair of passive speakers, including cabinet designs between 6 - 8 ohms. Find our full range of home audio speakers HERE>

Bluetooth Wireless Connectivity

Wireless Bluetooth streaming using version 5.0 with an improved range of up to 30 metres.

Connect your computer, iPad, or phone to enjoy your music. Also, enjoy hands-free playback with Amazon Alexa or Google Home devices using Bluetooth connectivity.

DAB+ Digital / FM Radio

Built-in DAB+/FM digital radio with up to five radio presets make it super easy to access your favourite radio stations with a single press of a button or by using one of the two remote controls.

Connect Your TV For An Immersive Audio Experience

The E120 has direct digital input via a 3.5mm optical input and analogue connections for connecting your TV. In addition, a rear analogue subwoofer output can be configured for extra low-end sub-bass sounds from any active subwoofer using a 3.5mm to RCA cable.

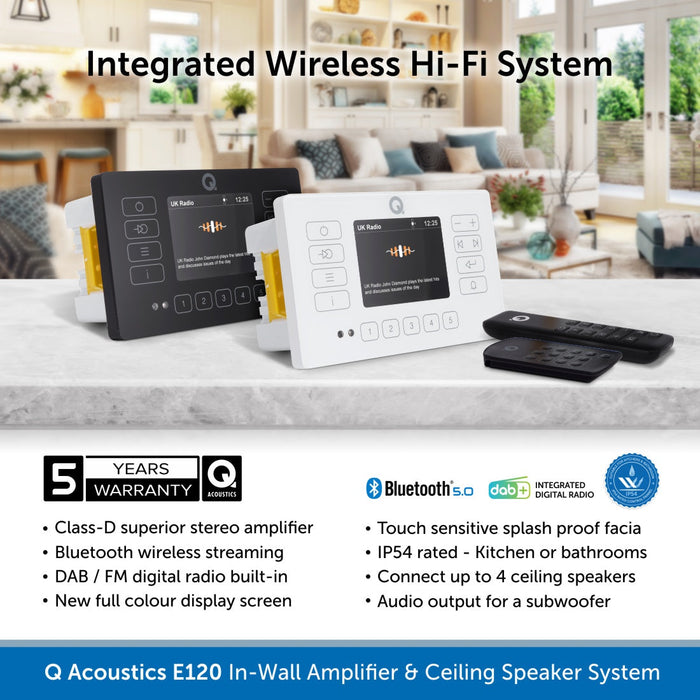

E120 HiFi System - Key Features

  • Easy to fit installation in any room in your home or summer houses
  • Clutter-free design, a true integrated audio solution
  • Built-in Class-D stereo amplifier serving up 2 x 25W of power

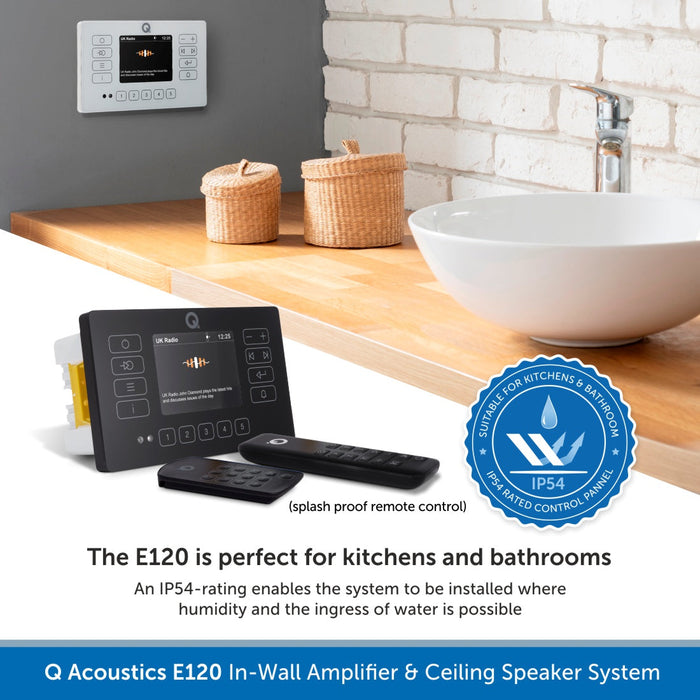

  • Bathroom or Kitchens, not a problem - IP54 splash-proof rated
  • x 2 Infrared Remote Controls ( x 1, IP67 Splash-proof)
  • Wireless streaming from your devices - Bluetooth 5.0 up to 30 meters range
  • DAB+ & FM radio with one-touch operation
  • Splashproof, touch-sensitive control panel
  • Full-colour display 3.2 inches in size
  • Subwoofer audio output
  • Analogue inputs for TV connection

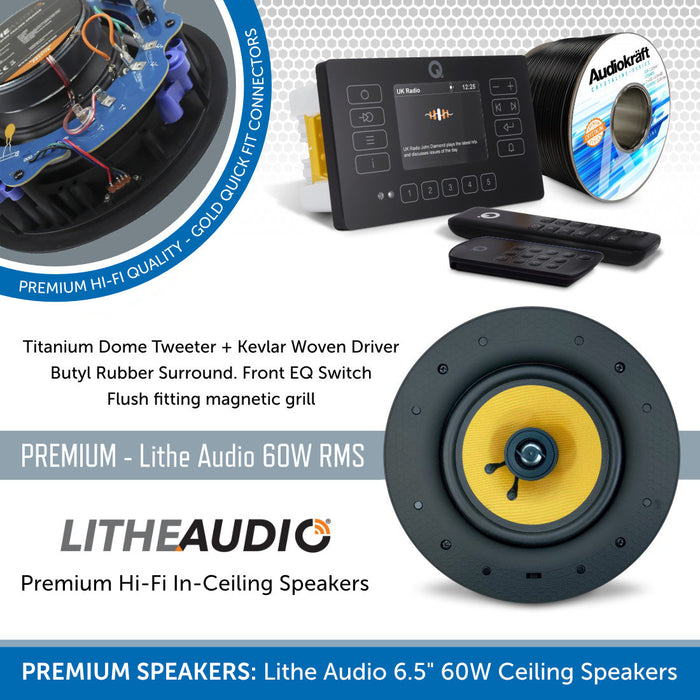

    AudioKraft PCS-60 - Premium 60W 6.5 inch, 8 Ohm In-Ceiling Speaker - Easy to fit design

      Audiokraft PCS-60 In-Ceiling Speakers

      The frameless design of the PCS-60 ceiling speaker makes it one of the most discrete ceiling speakers able to match most decors. With its woven Kevlar cone and butyl rubber surround the speaker is suited to a wide variety of applications where high quality background or foreground music is required, such as, restaurants, bars, retail, residential or even schools and colleges.

      Constructed in metal and utilising a 'dog-leg' installation, this product is extremely fast fitting and accessible from the front with accessible environmental EQ controls.

      The PCS-60 can be used as part of a 2.1, 5.1 or 7.1 speaker system for a professional home entertainment install or in a commercial environment where a little extra volume and depth is required. The PCS-60 speaker works great with high grade amplifiers from major bands such as Yamaha, Sony, Denon and more.

      AudioKraft PCS-60 Ceiling Speaker Key Features

      • Frameless, simple, unobtrusive design
      • 60W, Low Z (8ohm)
      • Fast-fix solution (dogleg design)
      • 6 inch 2-way co-axial speaker system
      • Magnetic front grille
      • Front accessible environment EQ
      • Plastic rear housing/ enclosure

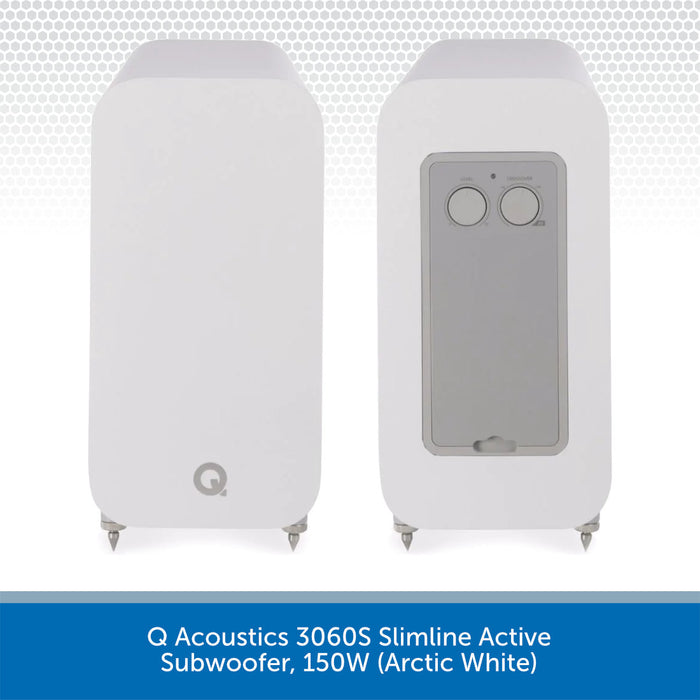

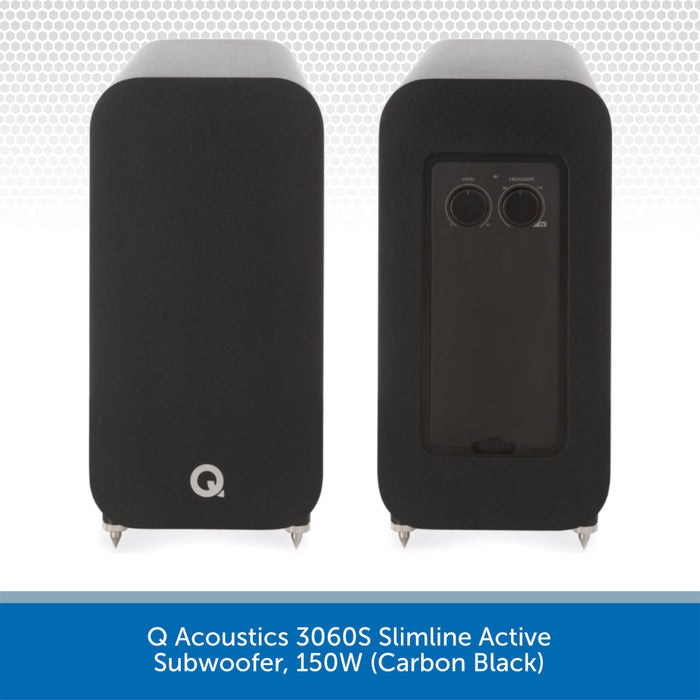

      Q Acoustics 3060S Subwoofer

      The Q Acoustics 3060S is a fantastic-sounding active subwoofer. It's great paired with bookshelf or ceiling speakers and will really enhance your TV, Film, Music or Gaming experience.

      The 3060S has a slimline design that makes it easy to place in your home, and the stylish design will mean it won't look out of place in any decor. Because of its size and shape, it can be placed on the floor, or even wall-mounted with an optional wall bracket. Rubber feet or spikes are included for various floor types.

      Featuring an 8" 150W driver, the 3060S provides a clean, deep bass response with no distortion even at high volumes.

      The rear panel contains a level and adjustable crossover control, as well as and RCA input and power socket, all hidden behind a removable magnetic cover which compliments the clean design.

      The Q Acoustics 3060S comes in four colours - White, Grey, Black and Walnut.

      Key Features:

      • 8" Driver
      • 150W RMS
      • Clean, seamless & slimline design
      • Volume & Crossover Control

      Shop Now > E120 HiFi Amplifier Only (no speakers)

      Shop now for E120 Amplifier Only, no speakers

      Shop Now > E120 HiFi System with In-Ceiling Speakers by Audiokraft

      Shop now for E120 Ceiling Speaker Systems by Audiokraft

      Shop now for Bathroom E120 HiFi System

      Shop Now > E120 HiFi System, Outdoor Wall Mount Speakers by Polk Audio Speakers

      Shop now for E120 HiFi System with Polk Wall Mount Speakers


      Q Acoustics - PDF Brochure Download HERE>

        SPECS & DOWNLOADS

        Q Acoustics - PDF Brochure Download HERE>

        E120 Brochure Download - HERE>

        E120 User Manual Download - HERE>

        E120 Installation Manual Download - HERE>

        Audiokraft PCS-60 HERE>

        Q Acoustics E120 In-Wall Amplifier Specification

        Audio Sources: DAB / DAB+ / FM with RDS

        Bluetooth: Version 5.0, A2DP

        Analogue Input:

        • Type: 3.5mm Stereo
        • Sensitivity: 350mV
        • Max Level: 1.5V
        • Impedance: 10k ohm

        Optical Input:

        • Type: Mini TOSLINK
        • Resolution: 16bit 48kHz

           Speaker Outputs: Left & Right, stereo or dual mono

          Analogue Output:

          • Type: 3.5mm Stereo
          • Modes: Fixed or variable
          • Max level: 670mV

          Amplifier:

          • Type: Class D
          • Continuous Power: 2 x 25W @ 6 ohm
          • THD: 0.07% @ 1W / 0.2% @ rated power
          • SNR: >75dB @ Rated power
          • Frequency Response: 20Hz - 20Hz +/- 1dB

          IP Ratings:

          • E120 Wall Panel: IP54
          • Splash Proof Remote: IP67

          Control:

          • Touch sensitive buttons
          • Infra-red remote control
          • Bluetooth AVRCP v1.6: Play, pause, skip, track, artists, album name

          Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish

          Alarms: x2 once, daily, weekdays, weekends

          Power Supply:

          • Input: 100 - 240V AC 50/60 Hz
          • Output: 22V DC 1.5amps
          • Dimensions (HxWxD): 30mm x 50mm x 115mm

          Power Consumption:

          • Typical: 10W
          • Standby: <1W
          • Deep Standby: <0.5W

          Wall Panel:

          • Net Weight: 0.251kg
          • Dimensions (HxWxD): 91mm x 151mm x 33mm

          Speaker Cable Supplied:

          • Gauge: 19 AWG
          • Lengths: 14m (2 speaker kits), 34m (4 speaker kits)

          Power Cable Supplied:

          • Gauge: 16 AWG
          • Length: 5m
          • Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female

          AudioKraft PCS-60 Specifications

            • Nominal Impedance:    8Ω
            • Power (RMS):     60W
            • Driver:     6.5 inch
            • Driver Material:     Kevlar Woven Cone
            • Single Tweeter:     0.75 inch
            • Tweeter Material:     Titanium Dome
            • Frequency Response (±3db):     60 Hz-20 kHz
            • Efficiency:     90dB
            • Colour:     White (RAL 9010)
            • Dimension:     Ø 227mm x 87mm
            • Cut-out Size:     Ø 210mm
            • Weight (Net):     1.52kg
            • Weight (Gross):     2.00kg

            Q Acoustics 3060S Active Subwoofer

            • Enclosure type: Infinite Baffle
            • Bass Unit: 200 mm (8 in)
            • Frequency Response (+3 dB, -6 dB): 35 – 250 Hz
            • Internal Amplifier Power: 150 W Class D
            • Crossover Frequency: 35 – 250 Hz (var)
            • Effective Volume: 10.6 L (647 cu in)
            • Dimensions H/W/D cabinet: 300 x 480 x 150 mm (11.8 x 18.9 x 5.9 in)
            • Dimensions H/W/D overall: 324 x 480 x 155 mm (12.8 x 18.9 x 6.1 in) overall
            • Weight (per speaker): 8.5 kg (18.7 lbs)

                }
