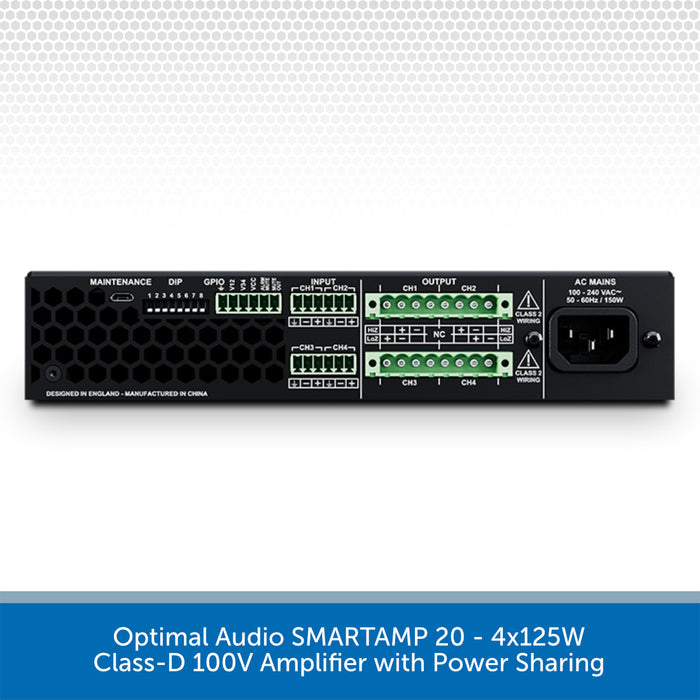

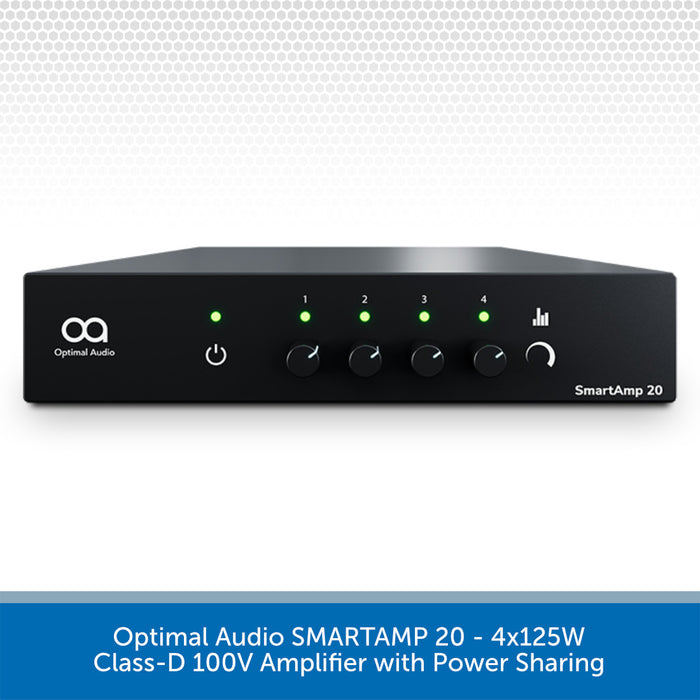

Optimal Audio SMARTAMP 20 - 4x125W Class-D 100V Amplifier with Power Sharing

Original price £1,200.00 (inc. VAT) - Original price £1,200.00 (inc. VAT)
Original price £1,200.00 (inc. VAT)
£1,200.00 (inc. VAT)
£1,200.00 (inc. VAT) - £1,200.00 (inc. VAT)
Current price £1,200.00 (inc. VAT)
SKU OPASAMP20
DETAILS

The SmartAmp series offer power, versatility and reliability - but above all else, simplicity.

The SmartAmp perfectly embodies Optimal Audio's core ethos of providing the highest quality, cutting-edge equipment without ever losing focus on total user-friendliness and simple operation.

While some features - such as integrated DSP presets - are specifically designed around Optimal Audio's own range of loudspeakers, the SmartAmp series will provide absolute excellence and a comfortable experience, regardless of what speaker system you may be using.

Is the SmartAmp right for me?

The combination of impressive power and effortless control make the SmartAmp series appropriate for use in a tremendous range of commercial and domestic settings, including:
  • Bars, Restaurants & Cafes
  • Retail Stores
  • Hotels & Wedding Venues
  • Warehouses & Factories
  • Fitness Studios & Gyms
  • Corporate Offices
  • Places of Education
  • Houses of Worship
  • Museums
  • Residential properties

Power Shared

The SmartAmp 20 offers four channels, each capable of driving both 70-100V Line and Low Impedance loudspeakers, with a maximum power output of 250W per channel pair.

What really impresses though is the inclusion of 'Power Sharing' - a fantastic feature that allows the SmartAmp 20 to flexibly distribute power between channels depending on the current need.

For example, if Channel 1 was only driving a single 25W speaker, then Channel 2 would be able to make use of the remaining 100W - effectively increasing its available power from 125W to 225W!

This allows for far more flexibility in designing unique systems that meet your unique needs.

Power Saved

The SmartAmp 20 benefits from being both Class-D and 'Energy Star' compliant. When not in use, it enters a 'sleep' mode to minimise unnecessary energy consumption. When a signal above -47dBu is received, it will then wake and all functions are resumed.

In a time when energy consumption is a huge concern to all, you can be confident that the SmartAmp 20 offers the highest efficiency for the lowest wastage.

Mounting Options

The SmartAmp 20 comes with a set of rackmount 'ears' attached, allowing for easy installation in an equipment rack. But this is not the only way that the amplifier can be mounted - Optimal Audio also offer a couple of optional rack kits for alternative positioning.

Rack Kit A - suitable for rack mounting both full and half-racksized units and enables coupling of half-rack-sized units to fit two SmartAmp 10 or 20 into a single rack space.

Rack Kit B - provides rear support to units when mounted in mobile racks and other more demanding situations

Wall Mount - used for mounting any of the SmartAmp range against flat surfaces

SmartAmp 20 Key Features:

  • Powerful 4 x 125W amplifier with integral DSP
  • Power sharing technology enables 250 watts from two pairs of channels
  • A range of mounting options - desktop, rack, wall.
  • Signal processing presets for Optimal Audio loudspeakers
  • Universal Mains, PFC and Energy Star Compliant
    SPECS & DOWNLOADS

    Optimal Audio SmartAmp 20 Specifications

    • TYPE: CLASS D power amplifier with DSP
    • POWER OUTPUT (4Ω -16Ω): 4 x 125W
    • 70V-100V OUTPUT: 4 x 125W
    • DIGITAL SIGNAL PROCESSING: EQ & limiter presets for Optimal Audio loudspeakers
    • COOLING: Forced air cooling with fan
    • ANALOGUE IN/LINK: 4 balanced line inputs on Euroblock connectors
    • ANALOGUE INPUT IMPEDANCE: 10kΩ unbalanced, 20kΩ balanced
    • MAXIMUM ANALOGUE INPUT LEVEL: +24dBu
    • AMPLIFIER OUTPUTS: Euroblock
    • SIGNAL TO NOISE RATIO: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
    • FREQUENCY RESPONSE: 20 Hz – 20 kHz, +0/-0.25dB (8 Ω load, 3dB below rated power)
    • TOTAL HARMONIC DISTORTION: < 0.05% (20Hz – 20kHz, 8Ω load, 3dB below rated power)
    • SLEW RATE: 8.796V/µS @ 70V peak, low impedence, 17.77V/µS @ 100V peak, high impedence
    • DAMPING FACTOR: 370 with 8Ω load
    • CONTROL AND MONITORING: GPIO
    • DSP SAMPLE RATE: 48kHz
    • MAINS POWER INPUT: Universal Mains, 100-240V, 50-60Hz
    • MAINS CONNECTOR: IEC
    • POWER CONSUMPTION: 150W
    • HEAT GENERATED: 540 kJ per hour
    •  DIMENSIONS: (W) 220mm x (H) 44mm x (D) 353mm (W) 8.67” x (H) 1.73” x (D) 13.90”
    • WEIGHT: 2.4kg (5.3lbs)







    Optimal Audio SmartAmp 20 PDF User Manual

    Download the SmartAmp 30 User Manual HERE >

    }
