Lab Gruppen CA602 2 x 60W Commercial Amplifier with Energy Star Certification
DETAILS
The Lab Gruppen CA602 is a versatile 2-channel amplifier delivering 60 watts per channel, making it an ideal choice for commercial and industrial environments.
Designed for spaces such as bars, restaurants, retail stores, offices, hotels, and educational facilities, the CA602 provides reliable audio performance, energy efficiency, and intuitive operation in a compact format.
The CA602 offers robust dual-zone output flexibility, remote control options, and efficient power management, making it a scalable solution for installations that require dynamic sound distribution across multiple areas.
Lab Gruppen CA602 Key Features:
-
Dual-Zone Output Flexibility: The CA602 offers two independent outputs with separate volume, bass, and treble controls for each zone, enabling tailored audio settings across different areas. This makes it perfect for installations requiring zonal sound control.
-
Low-Z and High-Z Support: Compatible with both Low-Z (4/8 Ohm) and High-Z (70/100 V) speaker configurations. The rear panel includes dip switches to easily select output modes and adjust gain. The built-in high-pass filter ensures sound clarity across various speaker setups.
-
Energy-Efficient Power Management: The CA602 automatically powers down when no input signal is detected for 20 minutes, conserving energy. The Auto Ramp feature ensures immediate power-up when a signal is detected, maintaining seamless audio performance.
-

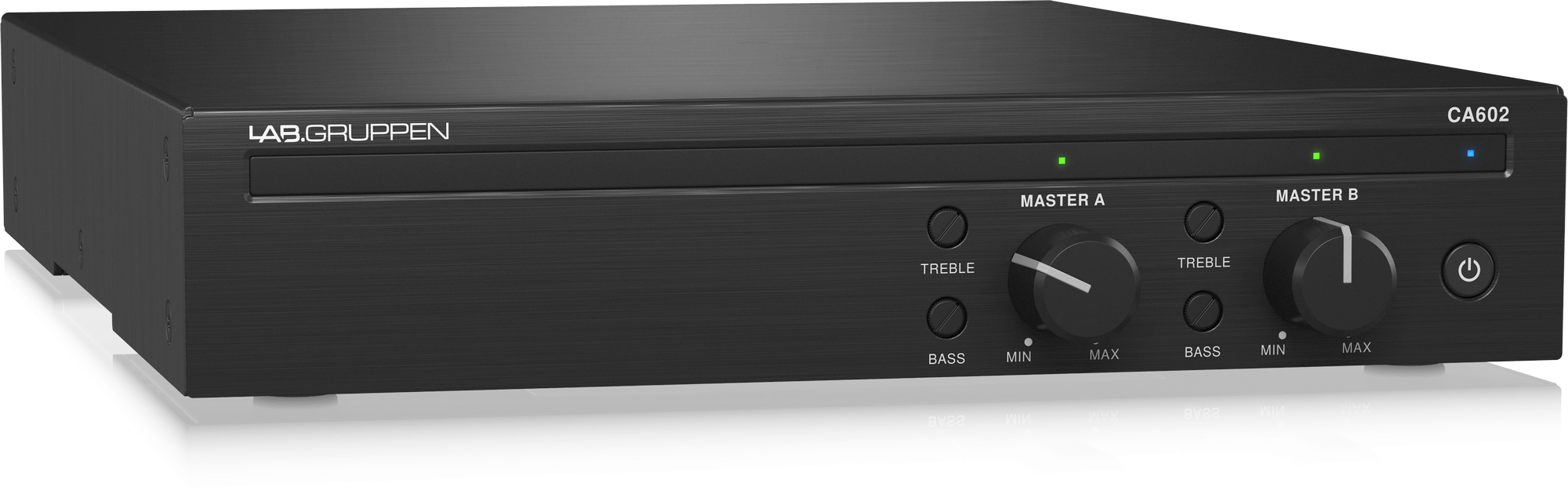

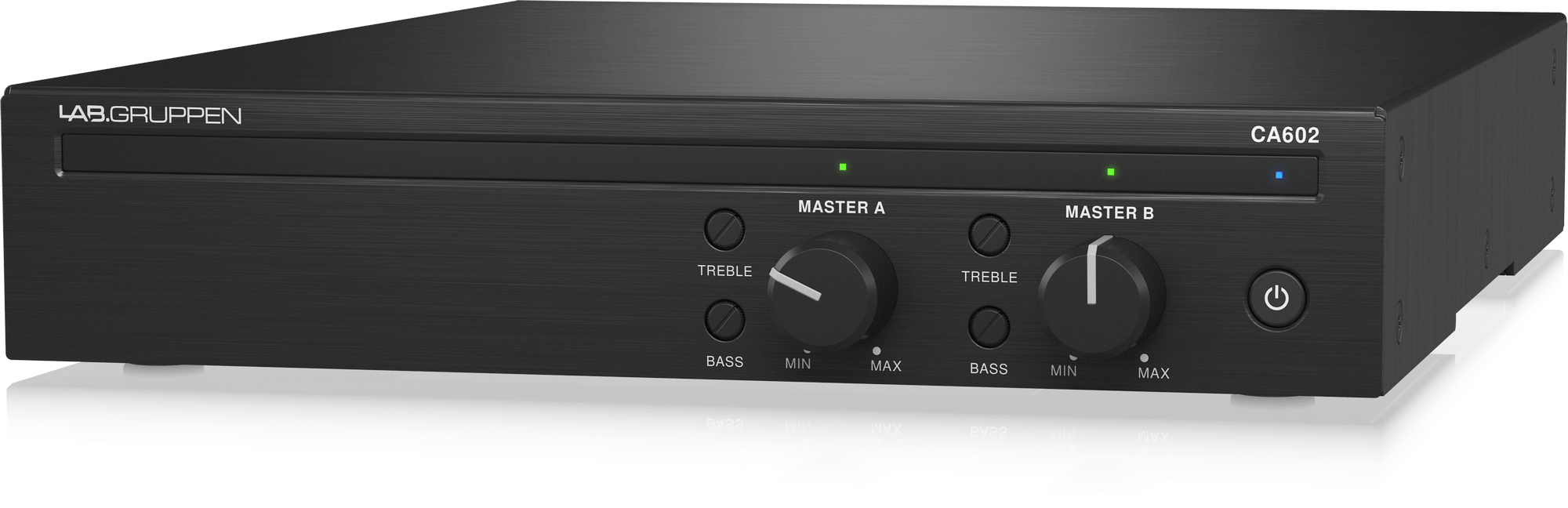

Simplified User Controls: Front panel controls include a master volume knob and power button for quick adjustments. Bass and treble settings require a tool to ensure consistent audio settings, ideal for maintaining stability in commercial environments.
-

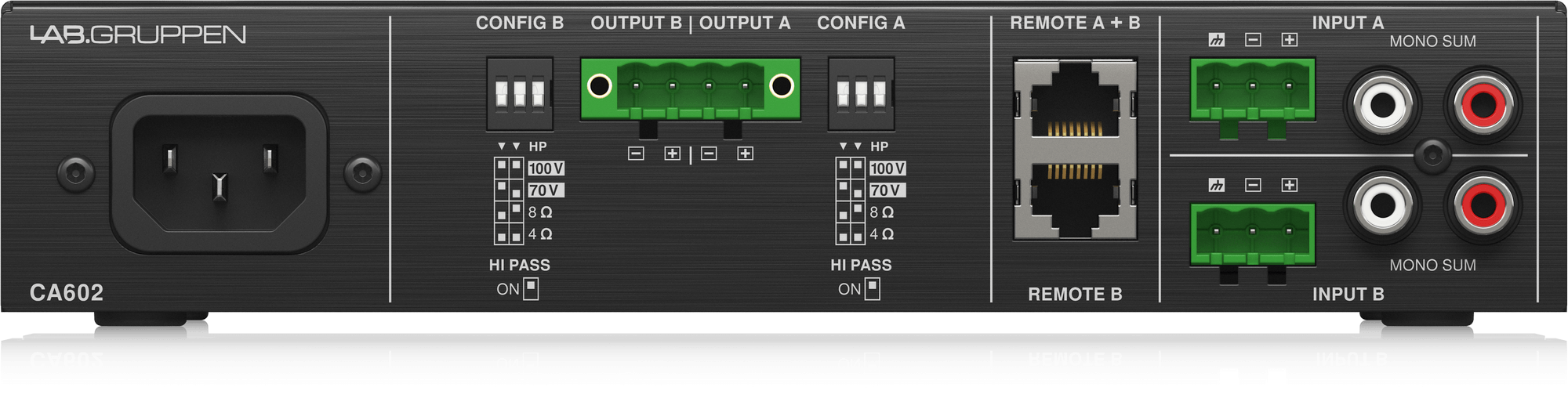

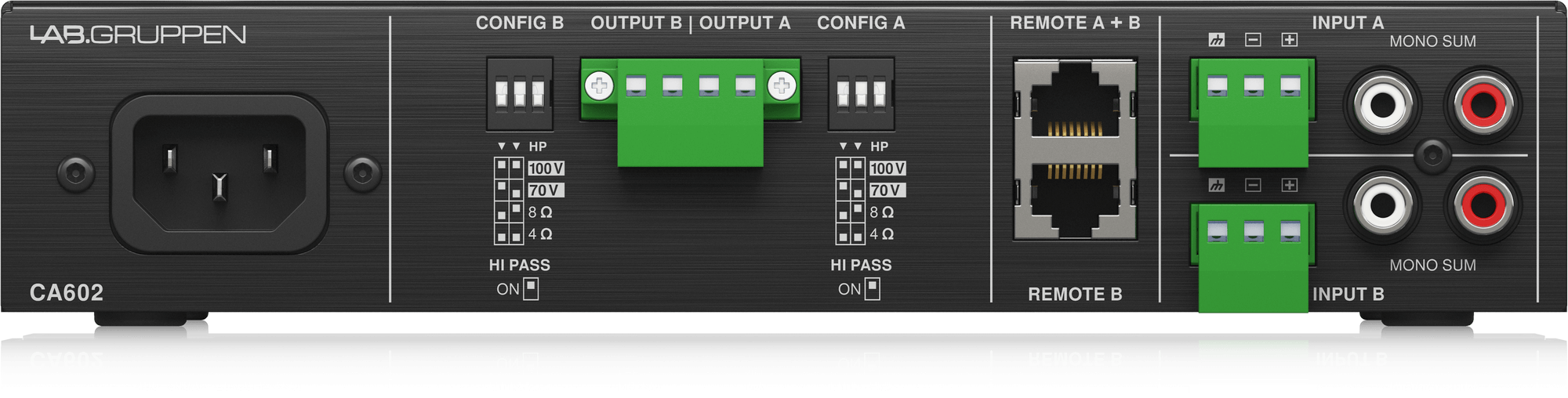

Easy Connectivity: The amplifier features Euroblock connectors for balanced inputs and RCA connections for unbalanced sources such as audio players and computers. The dual Euroblock loudspeaker outputs provide straightforward wiring options for installation.
-
Remote Control Expandability: The CA602 is equipped with RJ45 ports, allowing remote control via Lab Gruppen's CRC-V Series wall controllers or LAB.LEVEL tabletop controllers. Each zone can be individually managed for flexible audio control.
-

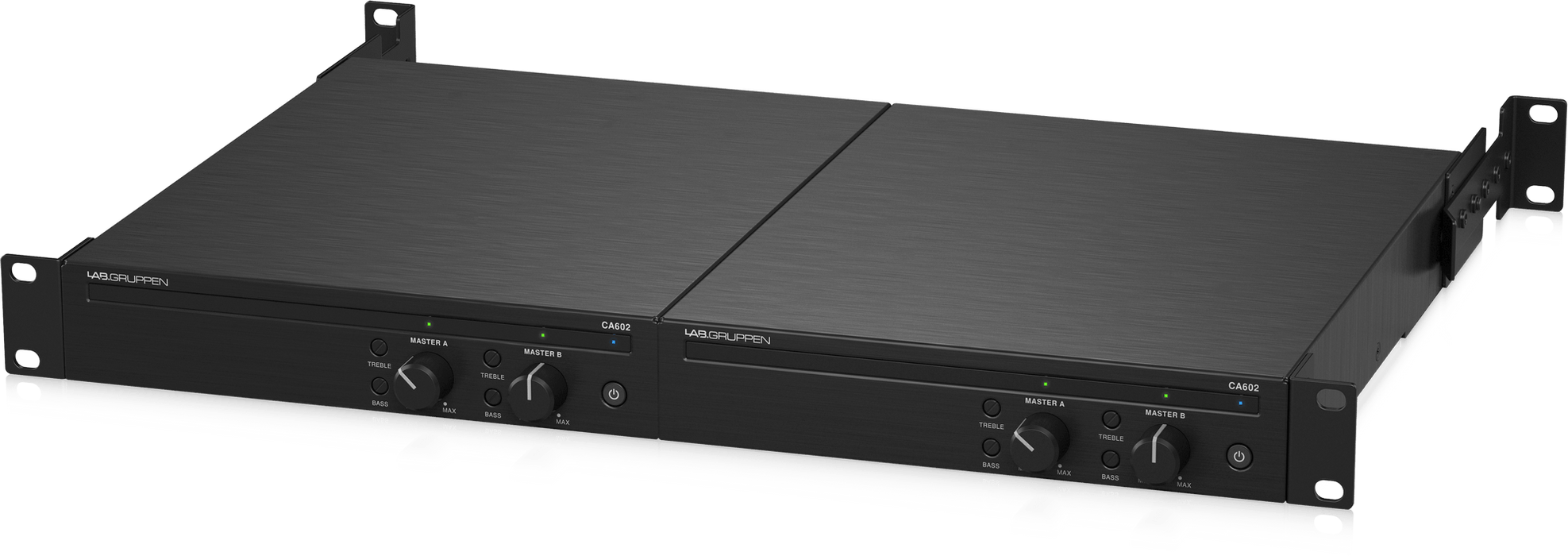

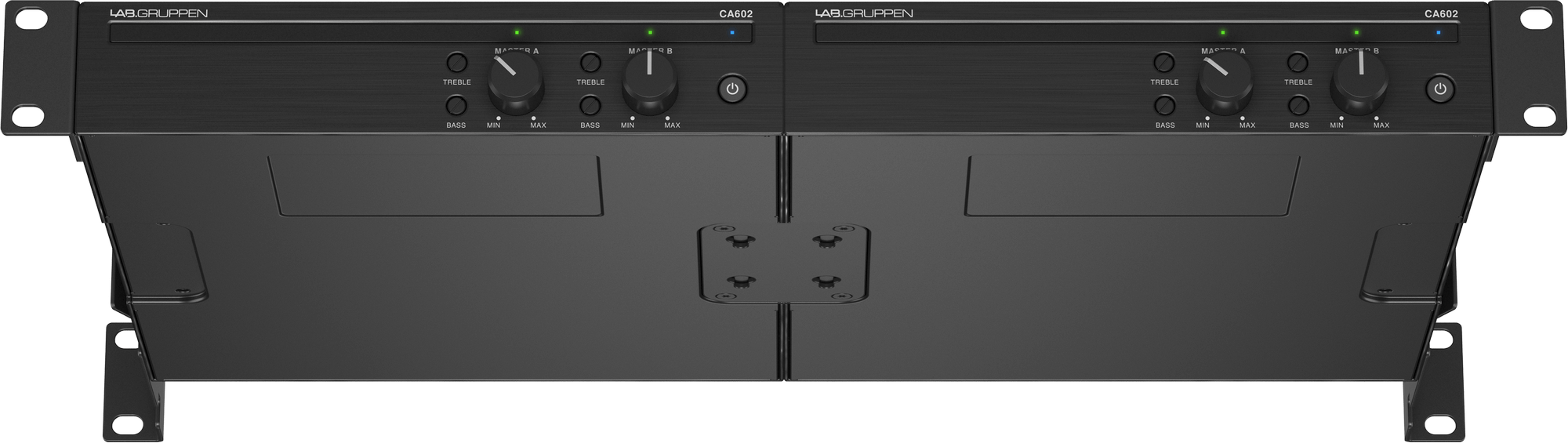

Scalable for Larger Systems: As part of the CA Series, the CA602 is designed for scalability, making it easy to expand as your audio system grows. The amplifier’s dual-zone capability ensures versatile audio distribution for evolving spaces.
-
Energy Star Certified: With Auto Ramp and constant power drive technology, the CA602 meets Energy Star standards, providing energy efficiency and cost savings for commercial installations.
-
Reliable Build and Warranty: Manufactured at Lab Gruppen's high-tech Music Tribe facility, the CA602 offers reliable performance and durability. Backed by a comprehensive warranty, it ensures long-term peace of mind for system integrators and end users.
SPECS & DOWNLOADS
Download the PDF User Guide HERE >
Lab Gruppen CA602 Specifications
Maximum Output Power
- 4 Ω per channel: 60 W
- 8 Ω per channel: 60 W
- 70 V per channel: 60 W
- 100 V per channel: 60 W
Number of Output Channels
- Number: 2
Minimum Load Impedance
- 4 Ω mode: 4 Ω
- 8 Ω mode: 8 Ω
- 70 V output mode: 82 Ω
- 100 V output mode: 166 Ω
Controls
- Front: Power standby button, gain control, tone controls - bass and treble
- Rear: Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter
Tone Controls
- Bass: ±10 dB @ 100 Hz
- Treble: ±10 dB @ 10 kHz
Indicators
- Power: On (blue), force standby (red), sleep (yellow)
- Master
- Signal (green LED): >12.3 mV (-36 dBu)
- Limit (red LED): Input clip, output limit
- Fault (red LED): Overheat, DC fault, over current, etc
System
- Inputs:
- 2 x 3-pin 5.08 mm Euroblock connector
- 2 x RCA stereo summed
- Input impedance: 10 kΩ unbalanced and RCA, 20 kΩ balanced
- Input sensitive: Balanced: 1.23 V (+4 dBu)
- RCA: 0.62 V (-2 dBu) each for mono sum RCA
- Maximum input level: 9.75 V (+22 dBu)
- Outputs: 1 x 4-pin 5.08 mm Euroblock connector
- Output circuit type: Class D
- Remote connector: 2 x RJ45 connector
Performance
- Distortion, 1/8 rated power: <0.05%
- Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
- Crosstalk (2 channel models): >85 dB
- Signal-to-noise: >97 dBA
- High-pass filter: 80 Hz HPF
Circuit Protection
- Cooling: Convection-cooled, fanless
- Amplifier protection: Thermal protection, over current protection, DC protection, high frequency protection
- Load protection: Controlled start and shutdown behaviour, DC-fault protection
Power Supply, Voltage (Fuse)
- Main voltage: 100-240 V~, 50/60 Hz
- Fuse: T 3.15 A L 250 V
- Power consumption 1/8th rated power @ 4 Ω: 40 W
- Mains connector: Standard IEC connector
Physical and Dimensions
- Dimensions (H x W x D): 44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
- Weight: 2.4 kg (5.3 lbs)
- Finish: Brushed black anodized aluminium chassis with black painted steel bottom
- Approvals: CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0
