Intusonic INTUFORCE 2SDL70 2 x 65W Compact Power Amplifier, 4-8 Ohms
DETAILS
The INTUFORCE 2SDL70 is an incredibly compact 2x65W amplifier, perfect for small shops and cafes.
The Intusound INTUFORCE 2SDL70 2x65W amplifier is a great choice for businesses looking for a high-quality, compact and great sounding 2-channel amplifier to power their music system.

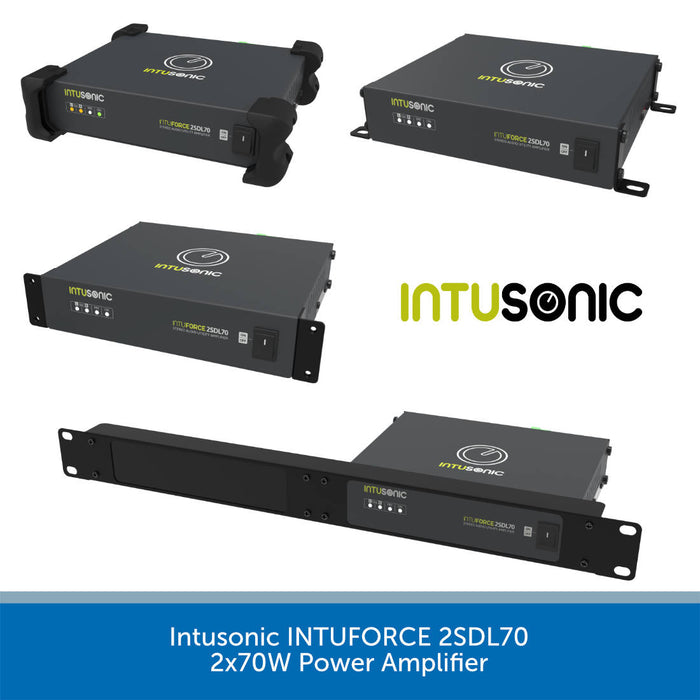

Thanks to multiple included mounting accessories, the 2SDL70 can be permanently installed under or on a counter, in a rack, or simply placed on a shelf.
Input & Output Control
The 2SDL70 features a balanced line input for connecting a phone or mixer, and a balanced output for routing the signal to another device - another amplifier for example.
Each channel has a 100Hz high pass filter which can remove unwanted muddy low-end frequencies - perfect when using with a subwoofer, amd each channel also has a separate volume control.
The 2SDL70 features an anti-tamper design, meaning there are no controls other than an on/off switch at the front. The volume dials are also recessed into the back of the amplifier. This means the volume can be set to a suitable level, without the worry of staff or other people adjusting the sound.
Amplification

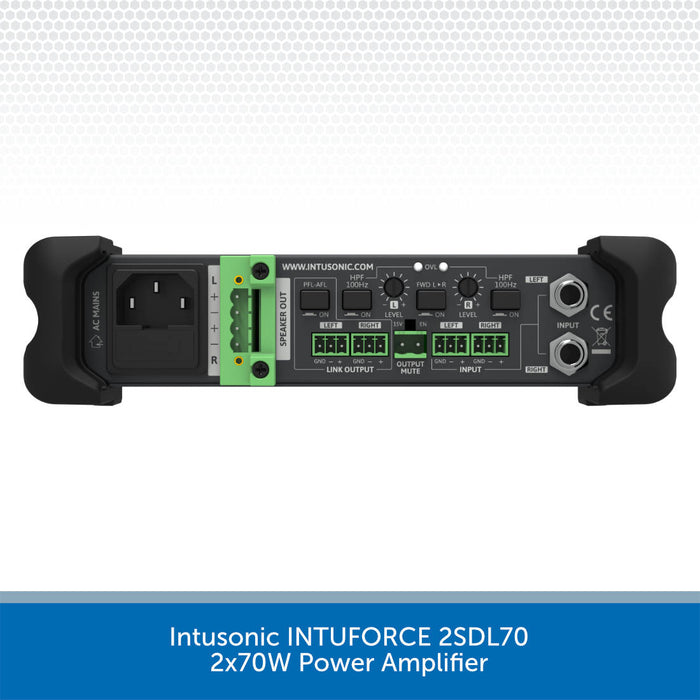

The Intusonic INTUFORCE 2SDL70 features a phoenix style connector for the main speaker outputs for easy installation.
Each output is 65W RMS at 4 Ohm, Class-D. Class-D is very efficient and runs cool, removing the need for a fan. This makes the 2SDL70 silent when in operation.
KEY FEATURES:
- 2 individual amplifier blocks with 65W power @ 4Ω each
- Class D topology with switch mode power supply
- Balanced (TRS and 3.5mm terminal strip) inputs
- Ultra-High CMRR input circuitry for long cable runs
- Input forwarding switch for stereo and parallel mono modes
- Rear-side volume control for each channel with Peak LED
- Separate 100Hz HPF for both inputs
- Line-level LINK output on 3.5mm strip connectors with routing pre/post-volume for flexible scaling of cascaded systems
- External MUTE contact
- Speaker output via 5.0mm terminal strip connectors
- Noiseless convection cooling without fan
- Full metal case, supplied with TPR bumper corner, surface mounting brackets and front mounting brackets for different mounting options
- AC mains voltage selector 115/230V
- CE/ROHS compliant
SPECS & DOWNLOADS
Intusonic INTUFORCE 2SDL160 2x150W Power Amplifier
- Rated Power @ 4Ω/8Ω: 2x 65W/35W
- Frequency response: 20Hz – 20 kHz
- S/N ratio (8Ω, full power): >88 dB
- Resídual Noise (full power): <-71dBu
- Crosstalk damping: >66dB
- THD&N (rated power): <0.08%
- AC IN: 115V/230~ 50/60Hz, max 160W
- Dimensions: WxDxH 180x150x42mm (bare)
- Dimensions: WxDxH 205x181x53mm (corners)
- Weight: 1.22 kg
Downloads
Intusonic INTUFORCE 2SDL70 Spec Sheet
Intusonic INTUFORCE 2SDL70 User Manual
