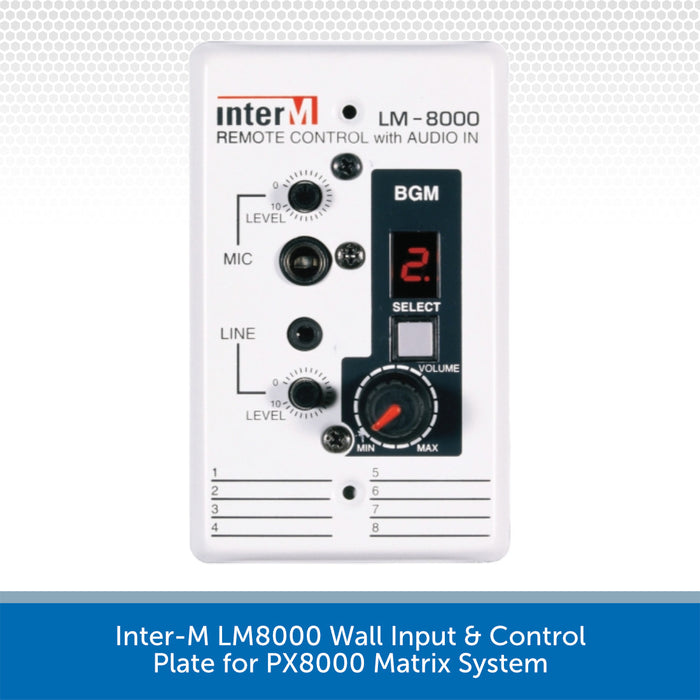

Inter-M LM8000 Wall Input & Control Plate for PX8000 Matrix System

by Inter-M
Original price £105.00 (inc. VAT) - Original price £105.00 (inc. VAT)
Original price £105.00 (inc. VAT)
£105.00 (inc. VAT)
£105.00 (inc. VAT) - £105.00 (inc. VAT)
Current price £105.00 (inc. VAT)
SKU LM8000

Input & control plate for Inter-M PX8000 Matrix System.

    The LM8000 wall plate provides volume and audio source selection from any one of the 8 sources connected to the PX8000 matrix, plus a 3.5mm line input socket and 1/4" jack microphone input - both with their own volume level control.

    The Inter-M LM8000 Wallplate features a Channel LED display, line and Mic. inputs, plus volume level control.

    Can be connected to the PX8000 Matrix unit via standard Cat5e/6 cable up to a 300m distance.

    Includes PS/LMPLATE faceplate for installation.

    Key Features:

    • For use with PX8000 8x8 Audio Matrix
    • Connectivity via standard Cat5e/6 cable
    • Remote Volume Control of Zone
    • Selector Switch for choice of 8 audio sources from Matrix
    • 3.5mm jack for Remote Line Input
    • 1/4 inch jack for Remote Microphone Input
    • Level Control for Remote Line & Mic Inputs
    • Bright LED display of selected source
    • Includes PS/LMPLATE faceplate for installation

      See SPECIFICATION tab for technical specs


      LM8000 Wall Plate

      Mic Input: 60dB (Balanced)
      Audio Output: 0dB (Balanced)
      Maximum Cable Distance: 300 metres
      Power Source: Powered from PX8000
      Dimensions: 200(W) x 70(H) x 206(D) mm
      Weight (Net): 1.40kg
      Weight (Gross): 1.92kg

      Inter-M PX8000 Matrix System - PDF file download

      Download the User Manual HERE
