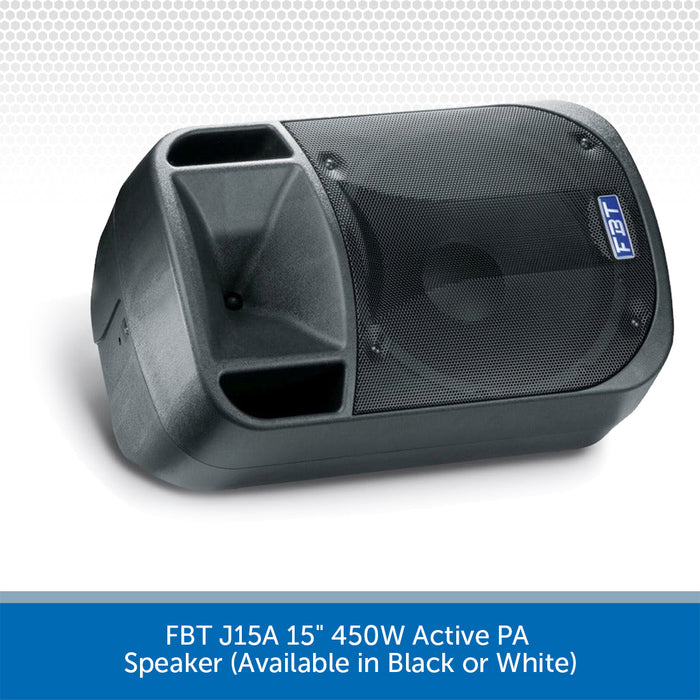

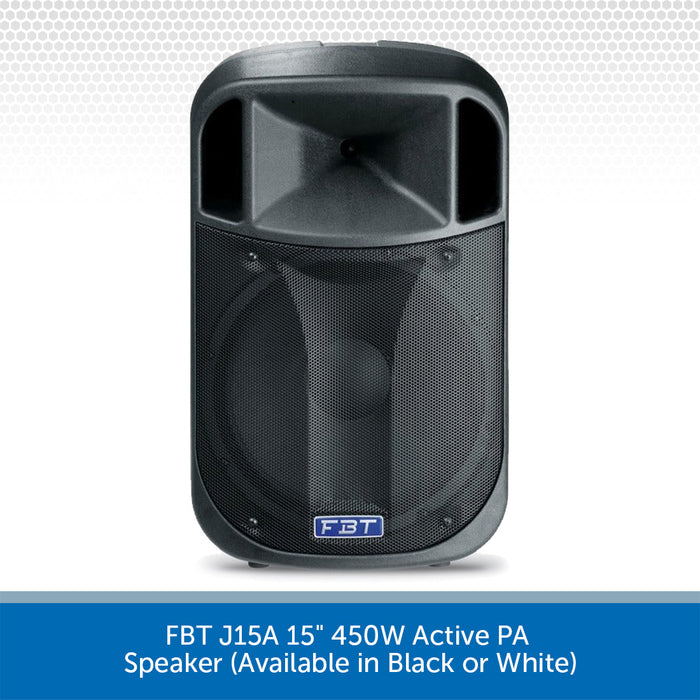

FBT J15A 15" 450W Active PA Speaker (Available in Black or White)
DETAILS
The FBT J15A is a 15-inch 450W active PA speaker designed for portable and installed audio applications.
The FBT J15A speaker features a lightweight, yet rugged gas-injected molded polypropylene cabinet construction. Available in a black finish the FBT J15A speaker boasts a modern cabinet appearance providing fixed installations with an elegant design that blends into any decor.
The FBT J15A has a two-way design incorporating a 15" low-frequency woofer and 2" HF custom compression driver coupled to a 90°H x 60°V horn. The active internal crossover is at a fixed frequency of 1.8kHz. With a frequency range of 48Hz - 20kHz the FBT J15A speakers provide high-fidelity sound for both speech and music applications with a maximum SPL of 129dB.
The bi-amplified FBT J15A active speaker features a 350W RMS low-frequency amp and a 100W RMS high-frequency amp. The control panel features a level control, HP filter switch, mic/line selector, preset switch (original, floor/vocal, boost/lounge, club/dj)) led power on, protection/limiter led indicators, a balanced XLR and Jack in, a balanced XLR link out.
The two M10 fly points built into the cabinet along with the optional mounting brackets allow the FBT J15A speaker to be surface mounted on walls or ceilings. A standard 1,38" speaker stand socket allows the FBT J15Ato be mounted on a speaker stand
FBT J15A Active PA Speaker Key Features:
- 2-way processed active system
- Polypropylene enclosure
- 1 x 15" custom woofer
- 1 x 1" neodymium silk dome tweeter
- 300W/70W built-in amplifier cont. RMS LF/HF
- 350W/100W built-in amplifier max. RMS LF/HF
- 700W/200W built-in amplifier max. peak LF/HF
- 2 x M10 suspension points
- 4 DSPpresets
- Completely manufactured in Italy
Typical Applications:
- Band P.A.
- Personal monitor
- Small theatres
- Auditoriums
- Piano bar
- DJ
- Stage monitor
- Conference rooms
- Fixed installations in live clubs
- Pubs
- Gyms
SPECS & DOWNLOADS
Download the FBT J15A PDF Data Sheet HERE >
Download the FBT J15A PDF User Manual HERE >
FBT J15A Specifications
- Configuration: 2 Way
- Frequency response: 48Hz - 20kHz
- Low frequency woofer: 15" with 2" VC
- High frequency driver: 1" with 1" VC
- Maximum SPL cont/peak: 125 / 129dB
- Dispersion: 90 x 60 (HxV)
- Input impedance: 22 Kohm
- Crossover frequency: 1.8kHz
- Input connector: XLR-Jack Combo with link out
- Net Dimension (WxHxD): 410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
- Net Weight: 14kg / 30.86lb
- Transport Dimension (WxHxD): 495 x 740 x 475mm / 19.48 x 29.13 x 18.70in
- Transport Weight: 17.1kg / 37.69lb
- AC Power requirements: 400VA
- Built-in amplifier LF/HF: 350/100w RMS
- Built-in amplifier peak LF/HF: 700/200W
- Power cord: 5m IEC
