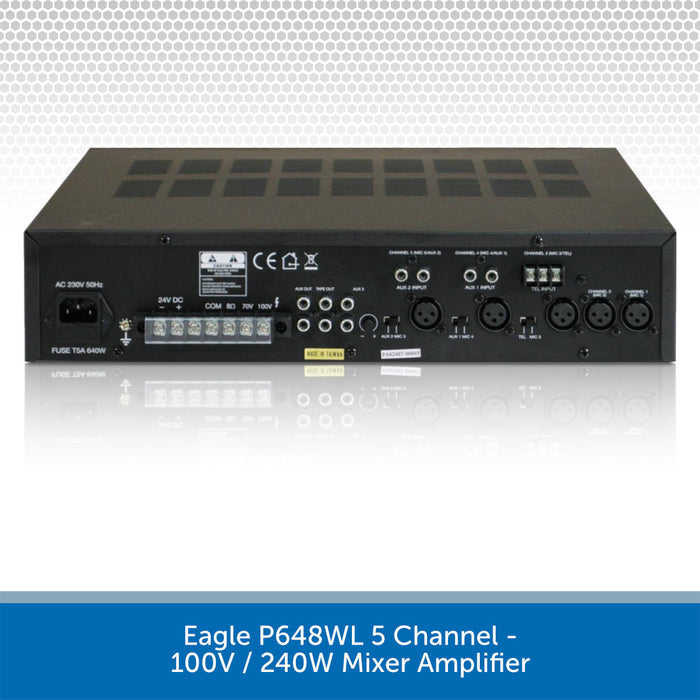

Eagle P648WL 5 Channel - 100V / 240W Mixer Amplifier

by Eagle
Sold out
£189.99 (inc. VAT)
SKU P648WL
DETAILS

Eagle P648WL (PA6240T) 240W / 6 Input 100v line mixer amplifier.

The Eagle P648WL is a rackmountable single zone mixer amplifier perfect for commercial installs that require multiple inputs.

This versatile unit features 6 inputs (5 usable at one time) which consist of 4 mic inputs and 3 aux inputs ideal for a media player of smartphone / tablet.

The Bass & Treble EQ and Master volume can control the overall output and can be used to power either 8 Ohms or 100V line speakers.

Features Included:

  • 5 Channel Mixer Amp - 240W Power RMS

  • Vox Priority (Mic Channel 1)

  • 240v or 24v External DC power option

  • 8 Ohms or 100V line speaker output

  • Ideal for commercial sound installations

  • 2U 19" rack mountable (rack ears supplied)

See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

EAGLE P648WL  240W SINGLE ZONE MIXER AMPLIFIER

  • Power supply: 240Vac, 50/60Hz (IEC)
  • DC power: 24Vdc (screw terminals)
  • Inputs: Mic XLR, 4 x mic/line jack, 3 x RCA line
  • Input sensitivity: mic 1 (balanced): -53dBV
  • Input impedance: mic 1: 5k Ohms
  • Input sensitivity: line (unbalanced): -15dBV (-18.5dBV line 5)
  • Input impedance: inputs 2-5: 1k Ohms
  • Line output: RCA
  • Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equalizer: bass: 100Hz ±10dB
  • Equalizer: treble: 10kHz ±10dB
  • Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power: +20V (mic 1 input)
  • Audio source: USB/SD player, FM tuner and Bluetooth receiver
  • Bluetooth version: 2.0
  • THD: <1.0%
  • Dimensions: 433 x 320 x 89mm
  • Output power: 240Wrms
  • Speaker outputs: 1 x 100V zone / 8 Ohms / COM terminals
  • Weight: 11.15k
