Denon HEOS Drive HS2 - 4-Zone Multi-Room Amplifier
The evolution continues with the HEOS Drive HS2, a network multi-room amplifier. The powerful 4-zone, 8-channel multiroom amplifier covers all HEOS zones with a single 2U tall, rack mountable chassis—ideal for custom installers.
Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a single 2U tall chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.
Rated at 60 watts per channel into each of the 8 channels, 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive features low impedance drive capability (4 ohms).

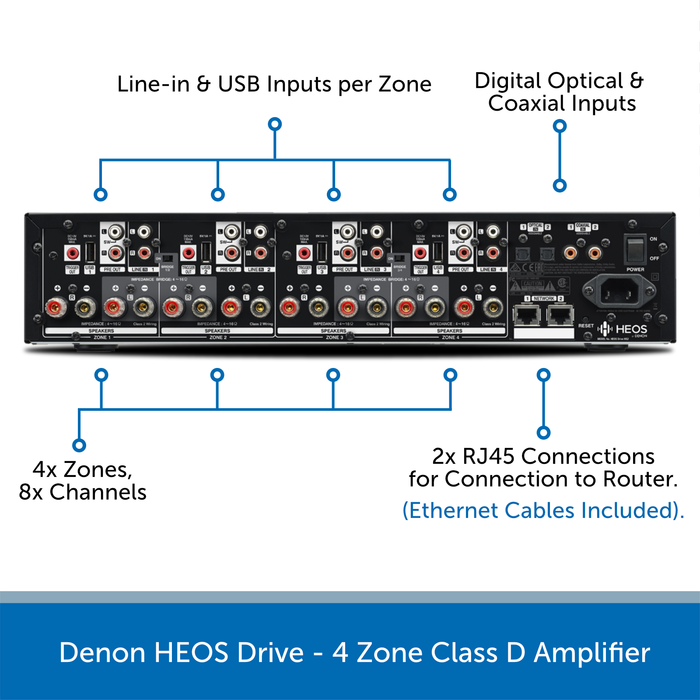

- Whole home amplified multi-zone audio (4 HEOS zones)
- 8 Channels Class D digital amplification; 60 wpc 8 ohms; 4 ohms compatible; bridge mode
- Pre-amp outputs for each zone
- Dual RJ-45 Ethernet LAN ports
- Stereo/Mono selectable output
- Only 2U high; removable rack ears included
- 3rd Party Controllable
- Dolby Digital/Dolby Digital+ downmixing to stereo

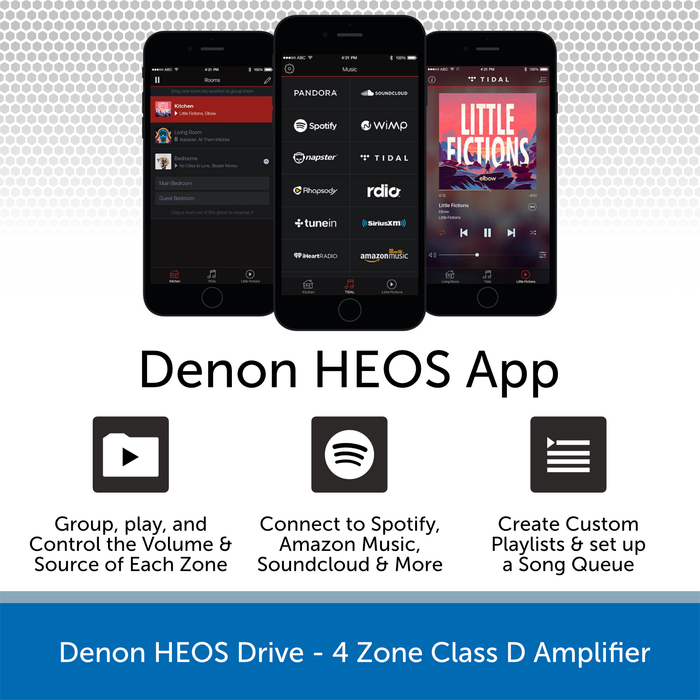

THE HEOS APP. - A SIMPLE, EASY TO USE INTERFACE
Stream from your favourite online music services, or listen to tracks directly from your phone, tablet or USB drives.
With HEOS, you have all the options you need and all the access you want.
ROOMS: Name each HEOS player according to the room where it is located. Group rooms together to play the same song in party mode. Separate rooms to play a different song in each of them.
NOW PLAYING: Instantly control what is playing in every room, view cover art or check the queue for what is coming up next. Create and save playlists.
SPECS & DOWNLOADS
Denon HEOS Drive HS2 Specifications
- Power Output: 60 watts per channel (20Hz~20kHz, .05%THD, 8 ohms, All channels driven)
- Bridged Amplifier Mode: 130 watts per channel
- Wireless Connectivity: Yes ( Dual Band Including 802.11 a/b/g/n/ac standards)
- Wired Connectivity: Yes (Single RJ-45 Jack)
- Power Supply: AC 220-240 V, 50/60 Hz
- Dimensions (mm) (H x W x D): 88 x 430 x 402 mm (without rack ears), 88 x 483 x 402 mm (with rack ears)
- Weight (Kg): 7.2
