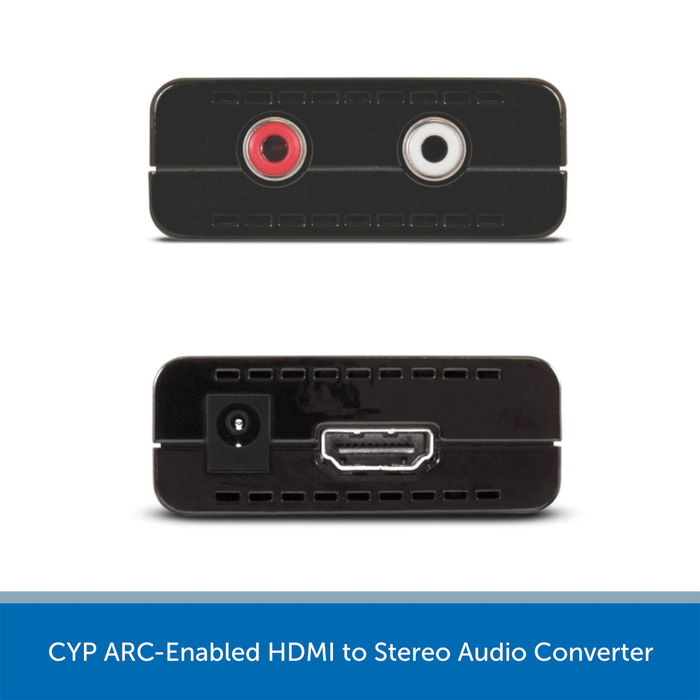

CYP ARC-Enabled HDMI to Stereo Audio Converter

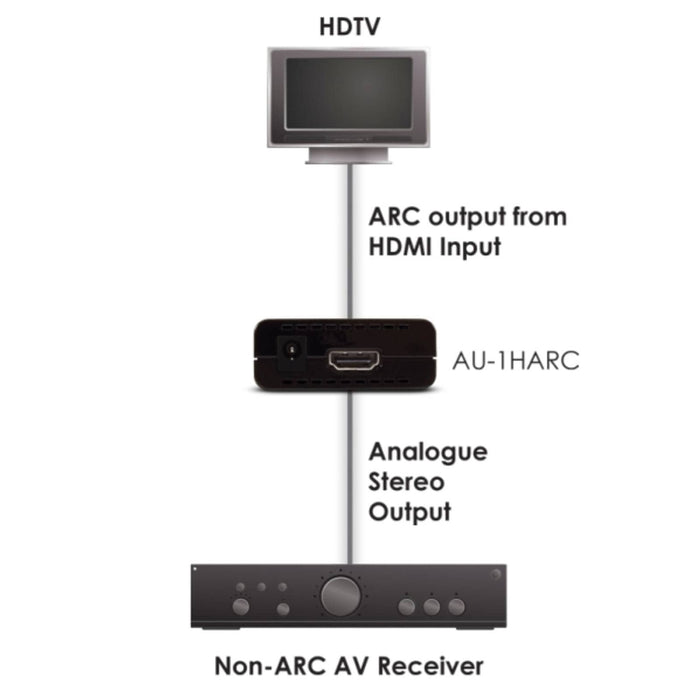

The AU-1HARC is designed to extract the audio signal from any ARC-enabled HDTV and convert it to line-level stereo signal.
The CYP AU-1HARC is ideal for HDTVs without a dedicated audio output, as it allows the audio to be extracted from the ARC-enabled HDMI connection and converted into line-level stereo signal, perfect for connecting to amplifiers or active speakers.
It supports HDMI audio sampling rates up to 192 kHz and provides an analogue 2-channel stereo output using the integrated DAC (Digital to Analogue Converter).
CYP AU-1HARC Key Features
Extracts HDMI audio from HDTVs to Line-level stereo output
Supports volume control from the TVs remote control via CEC function
Plug and play, with no software required
Powered by the HDTV USB connection via the supplied cable
SPECS & DOWNLOADS
- Input: 1 x HDMI
- Output: 2x RCA
- Power: USB powered
- Dimensions: 55(W) x 80(D) x 20(H) mm
- Weight (Net): 0.06kg
- Weight (Gross): 0.22kg
