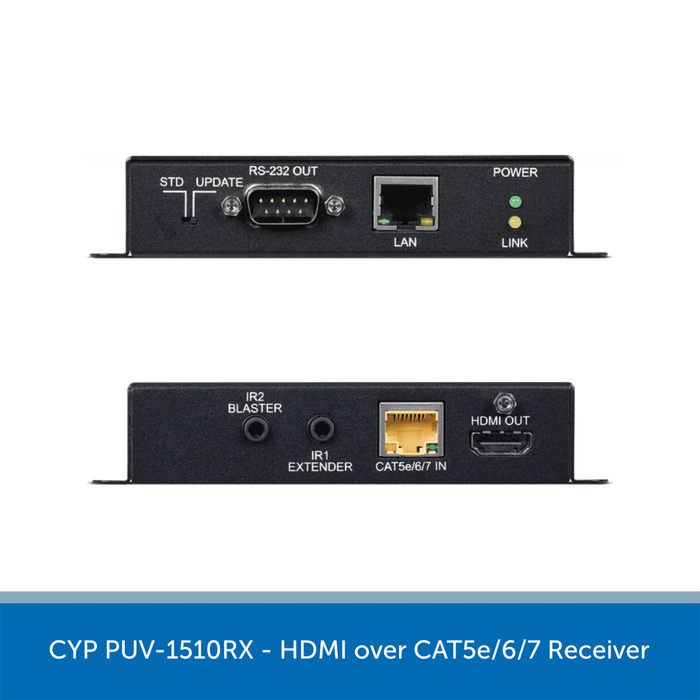

CYP 5-Play HDBaseT - HDMI over CAT5e/6/7 Receiver PUV-1510RX

by CYP
£299.00 (inc. VAT)
SKU PUV-1510RX
DETAILS

The PUV-1510RX allows an uncompressed HDMI signal to be transmitted over a Single CAT5e/6/7 cable.

This receiver is to be used with the PUV-1510RX Transmitter.

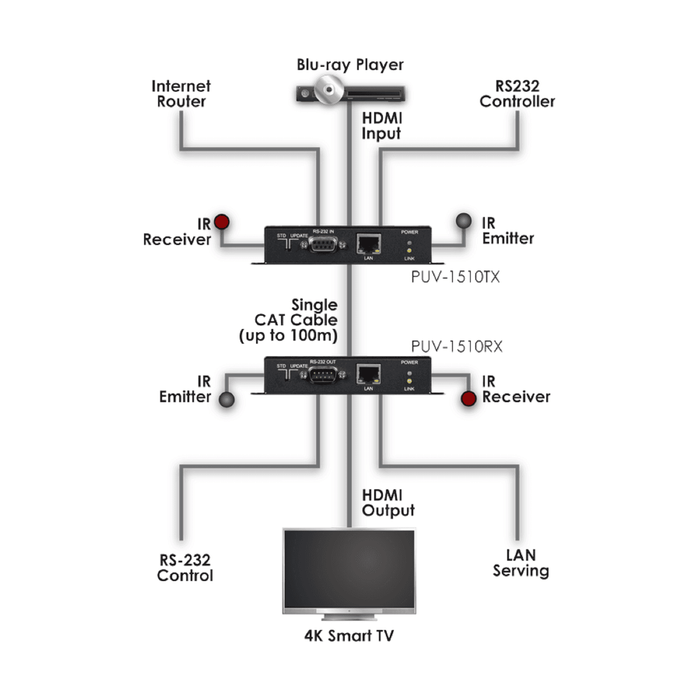

The CYP PUV-1510RX accepts transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals simultaneously over a single CAT6a/7 cable up to 100m.

CYP PUV-1510RX Key Features

  • HDCP2.2 Compliant

  • Supports uncompressed video/audio up to 10.2Gbps

  • Supports HDCP repeating and CEC functions

  • 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7

  • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

SPECS & DOWNLOADS
  • Inputs: 1x RJ45 [1x HDBaseT HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x RJ45 [1x LAN Serving]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • POE PSU: PoH
  • Dimensions: 116mm [W] x 106mm [D] x 27mm [H]
  • Net Weight: 357g
  • Gross Weight: 540g
