CYP 5-Play HDBaseT - HDMI over CAT5e/6/7 Transmitter PUV-1510TX

by CYP
Original price £340.00 (inc. VAT) - Original price £340.00 (inc. VAT)
Original price £340.00 (inc. VAT)
£340.00 (inc. VAT)
£340.00 (inc. VAT) - £340.00 (inc. VAT)
Current price £340.00 (inc. VAT)
SKU PUV-1510TX
DETAILS

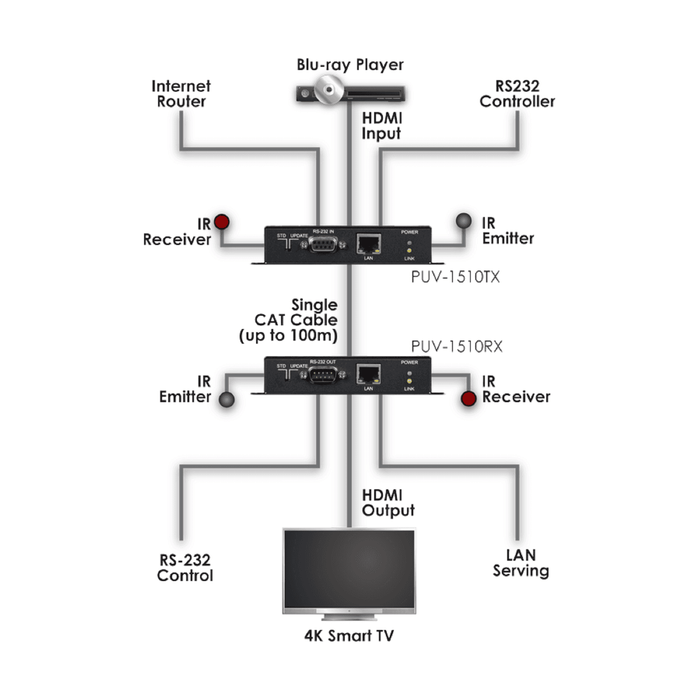

The PUV-1510TX enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m.

This transmitter is to be used with the PUV-1510RX Receiver.

The CYP PUV-1510TX provides advanced signal management ensuring reliable results in the most demanding installation environments.

All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

CYP PUV-1510RX Key Features

  • HDCP2.2 Compliant

  • Supports uncompressed video/audio up to 10.2Gbps

  • Supports HDCP repeating and CEC functions

  • 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7

  • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

SPECS & DOWNLOADS

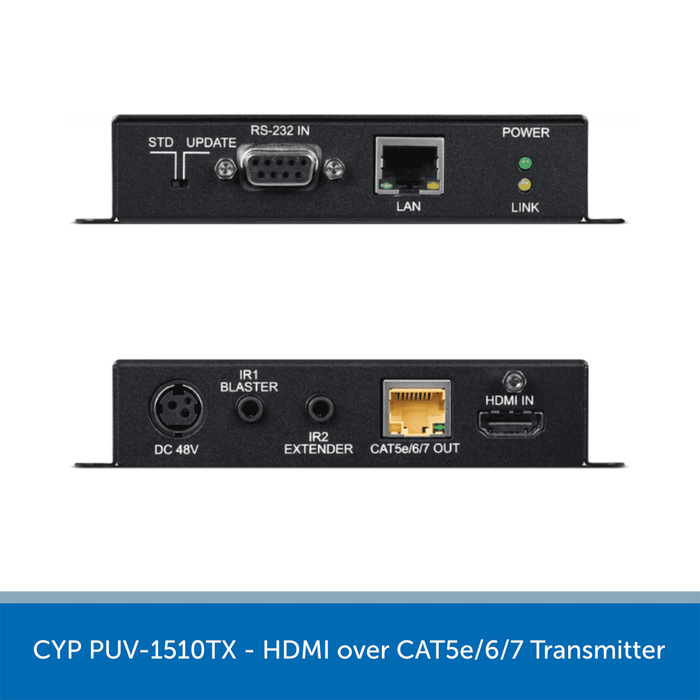

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  • Outputs: 1x RJ45 [1x HDBaseT output HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 1x RJ45 [1x Ethernet (I/O) IP]
  • PSU: 48V/0.83A
  • Dimensions: 116mm [W] x 106mm [D] x 27mm [H]
  • Net Weight: 360g
  • Gross Weight: 680g

}
