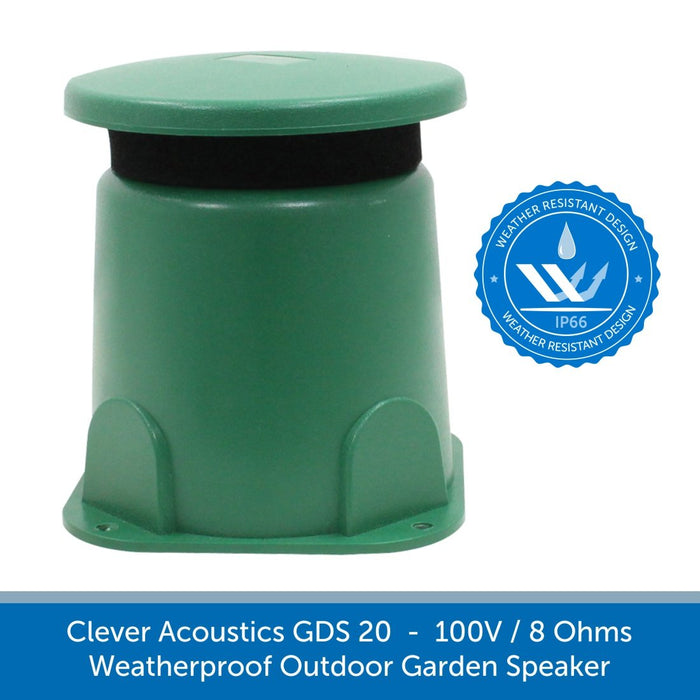

Clever Acoustics GDS 20 Weatherproof Outdoor Garden Speaker, 100V / 8 Ohms

£59.00 (inc. VAT)
SKU CRSP56

DETAILS

The Clever Acoustics GDS 20 is a weatherproof garden design loudspeaker designed for fixed audio applications in gardens, parks, hotel grounds, and outdoor dining areas, etc.

This outdoor garden speaker by Clever Acoustics offers a low-profile and discreet speaker solution for both commercial and domestic premises that require high-quality music and voice playback.

Thanks to a solid IP66 rated ABS cabinet, the Clever Acoustics GDS 20 is ideal for use all-year-round and is protected from all weather conditions. The outdoor loudspeaker can be fixed into position using the four fixing points, one in each corner of the base.

The GDS 20 garden speaker has a 360-degree dispersion angle that projects audio across a large area, making it ideal for large outdoor spaces.

The Clever Acoustics GDS 20 operates on 100V Line & 8 Ohms and has multiple power tappings of 5W, 10W & 20W, so it can be balanced to almost any music system.

For piece-of-mind, the Clever Acoustics GDS 20 is supplied with a 3-year manufacturers warranty.



Cabling

On the back of the speaker, you will see two separate cables, one white and one grey.

The white cable is only for use with 100V commercial installations. For home/domestic users please ignore this cable as it is not required for your installation and move onto the grey cable.

The grey cable has 3 connections, black, white, and green. Simply connect the white cable to the positive output of your amp i.e. the red terminal and connect the black cable to the earth i.e. the black terminal.

Wiring Specification:

Domestic/Home user

  • White wire = Positive

  • Black wire = Negative

Commercial/100V Line Tappings

  • Red wire = 2.5W

  • Green wire = 5W

  • Yellow wire = 10W

  • Blue wire = COM



    SPECS & DOWNLOADS

    Clever Acoustics GDS 20 Specifications

    • Dimensions: 235 x 212 x 213mm
    • Weight: 1.73kg
    • Dispersion Angle: 360° wide sound dispersion
    • IP Rating: IP66
    • Input: 100V, 70V, 8O
    • Power taps @ 100V: 5W, 10W, 20W
    • Power taps @ 70V: 2.5W, 5W, 10W
    • Impedance: 2KO, 1KO, 500O, 8O
    • Sensitivity (1W/1m): 95dB
    • Maximum SPL (Rated W/1m): 100dB
    • Frequency response: 80Hz-15kHz
    • Connections: Flying lead

              Clever Acoustics GDS 20 PDF Downloads

              Download the User Manual Here
