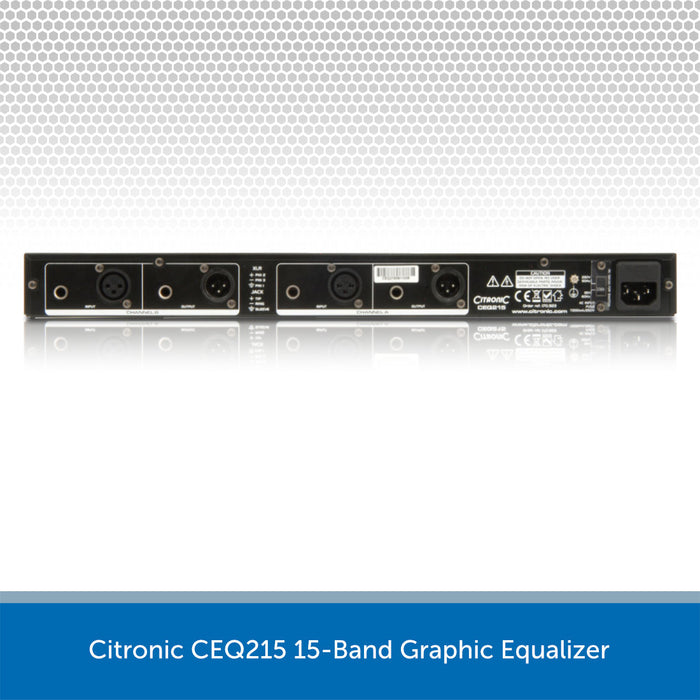

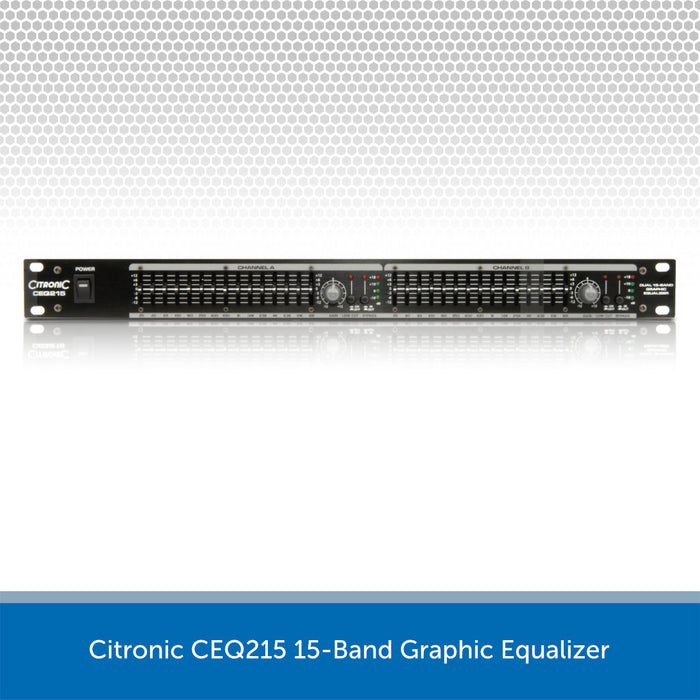

Citronic CEQ215 15-Band Graphic Equalizer
Achieve precise and versatile sound shaping with the Citronic CEQ215 15-band graphic equalizer - the essential tool for DJs, sound engineers, and musicians alike.
The Citronic CEQ215 is a professional-grade 15-band graphic equalizer designed for precise and effective sound shaping. It features 2/3 octave frequency bands that cover a wide range of frequencies from 25Hz to 16kHz, allowing you to fine-tune the sound of your audio system to your exact specifications.
Each channel of the CEQ215 has independent gain control, allowing you to boost or cut the level of each frequency band by up to 12dB. The unit also features switchable high-pass and low-pass filters, which can be used to further tailor the sound by removing unwanted frequencies.
The CEQ215 is built with high-quality components, including precision slide potentiometers for accurate and reliable adjustments, and a rugged steel chassis that is built to withstand the rigours of professional use. The unit is easy to install and use, with clearly marked controls and a straightforward layout that makes it easy to dial in your desired sound.
Whether you're a DJ, sound engineer, or musician, the Citronic CEQ215 is an essential tool for achieving the perfect sound. With its precise and versatile sound-shaping capabilities, it's the perfect addition to any audio system that requires precise tonal control.
Citronic CEQ215 Key Features:
- 2 x 15-band 2/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19" rackmount 1U
SPECS & DOWNLOADS
Citronic CEQ215 Specifications
- Power supply: 115/230Vac, 50/60Hz (IEC)
- Frequency response: 20Hz-20kHz
- Input impedance : balanced: 40k Ohms
- Input impedance : unbalanced: 20k Ohms
- Output impedance : bal/unbal: 330 Ohms
- Channel separation: >50dB
- Signal to noise ratio: >102dB
- THD: 0.005%
- Dimensions: 482 x 44 x 138mm
- Weight: 2.0kg
