Bose FreeSpace IZA 2120-HZ 2x120W 100V 2-Zone Class-D Integrated Amplifier
DETAILS
The Bose FreeSpace IZA 2120-HZ is designed to elevate audio quality in commercial environments such as retail stores, restaurants, and conference centres.
With 120 watts of power per channel at 70V/100V, this Class-D integrated zone amplifier delivers powerful, clear sound for both background and foreground music, as well as paging applications across two independent zones.
The IZA 2120-HZ features onboard digital signal processing (DSP), including Dynamic EQ and selectable Loudspeaker EQ, to optimize sound performance, especially when paired with Bose FreeSpace or DesignMax loudspeakers.
Installation is quick and straightforward, with intuitive setup done directly on the amplifier—no computer is required. The Opti-Voice® paging system ensures clear speech intelligibility and smooth transitions between music and paging, making it ideal for environments requiring both ambient audio and announcements.
Its compact 1U rack-mountable design allows for easy integration into various installations, while user-friendly front panel controls offer quick access to tonal adjustments, source selection, and volume. For added flexibility, dual remotes are supported for zone-specific volume and source control, eliminating the need for bulky in-line volume controls.
Bose FreeSpace IZA 2120-HZ Key Features:
- 2x120W Class-D Amplifier: Provides 120 watts per channel at 70V/100V, delivering efficient, high-quality sound for multi-zone audio systems.
- Opti-Voice® Paging: Ensures clear, intelligible voice announcements with smooth transitions between music and paging.
- Dynamic EQ and Loudspeaker EQ: Optimize audio performance, especially when used with FreeSpace or DesignMax loudspeakers.
- User-Friendly Interface: Front panel controls for input selection, treble, bass, and master volume adjustments. Optional wall-mounted remotes for added convenience.
- Compact 1U Design: Easily rack-mounted or installed in various locations for flexible integration.
Flexible Audio Solutions for Commercial Spaces
The Bose FreeSpace IZA 2120-HZ is a reliable, powerful amplifier suited for a wide range of commercial installations requiring high-quality background music and paging solutions.
SPECS & DOWNLOADS
Bose FreeSpace IZA 2120-HZ PDF Spec Sheet > DOWNLOAD HERE
Bose FreeSpace IZA 2120-HZ Specifications
Amplification:
-
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
-
Dynamic Range: 88 dB
-
Frequency Response: 55 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
-
Number of Channels: 2
-
Power Class: Class D
-
Rated Power, Symmetrical: 120 W per channel at 70V, 100V
-
THD+N: 0.3% at rated power
Audio Inputs:
-
Adjustment Range: 0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary
-
Channels: 2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
-
Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
-
Input Impedance: 20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
-
Input Range: -8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary
-
Maximum Input Level: 22 dBu, line / 12 dBu, page / -1 dBu, auxiliary
-
Nominal Input Level: 4 dBu, line / -38 dBu, page / -8 dBu, auxiliary
-
Sensitivity: -8 dBu, line / -3 dBu, auxiliary / N/A, page
Audio Outputs:
-
Channels: 2
-
Connectors: (2) 2-pin inverted Euroblock, (1) RCA stereo pair
- Nominal Output Level: 2 × 120 W at 70V, 100V / 2 dBu (auxiliary)
-
Output Impedance: N/A (amplifier) / 400 Ω (auxiliary)
Electrical:
-
Current Draw, Inrush: 6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz
-
Mains Connector: IEC C14 inlet
-
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
-
Protections: High temperature, output short circuit, excessively low/high AC line voltage
-
Power Consumption: 26 W standby, 300 W maximum
Indicators and Controls:
-
Controls, Front Panel: (1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob
-

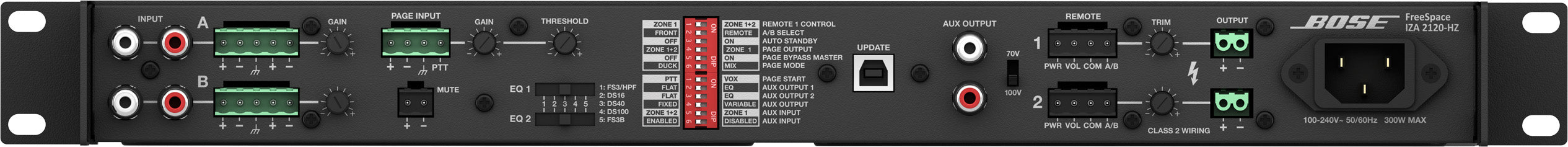

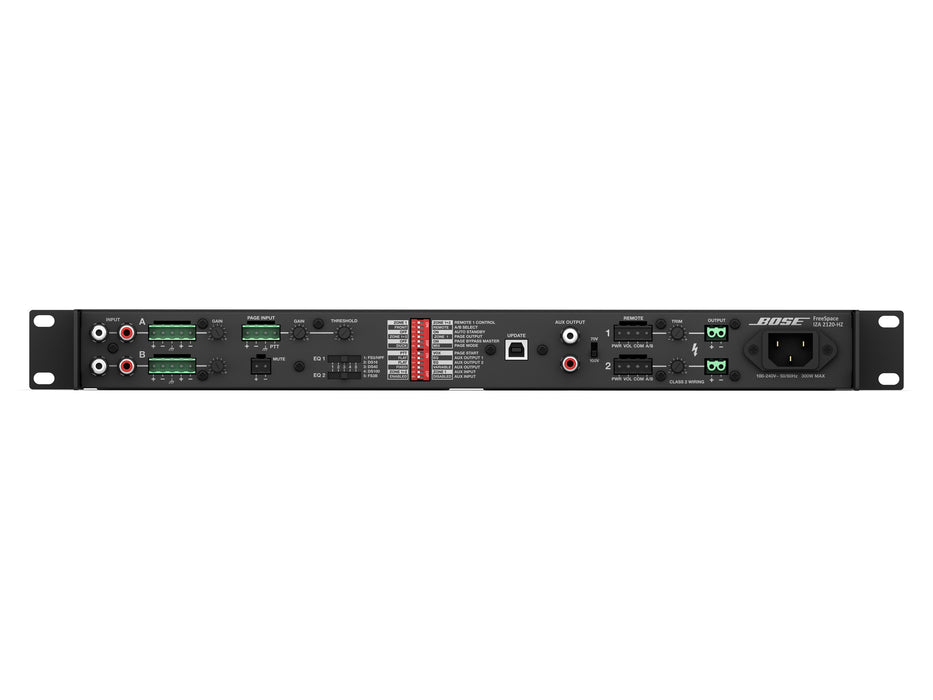

Controls, Rear Panel: Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2)
-
LED Status Indicators: (1) power LED, (1) input signal/clip LED, (1) output signal/clip LED
Integrated DSP:
-
A/D and D/A Conversion: 48 kHz / 24-bit
-
Audio Latency: 10.4 ms (analog input to analog output)
-
Presets: High-pass filter, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE, FreeSpace 3 Acoustimass & DesignMax DM2C-LP/DM2S/DM3C/DM3SE)
-
Processing Functions: Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
Physical:
-
Cooling System: Single fan creates continuous left-to-right air flow
-
Net Weight: 9.0 lb (4.1 kg)
-
Product Dimensions (H×W×D): 1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm)
-
Rack Spaces: 1 RU
