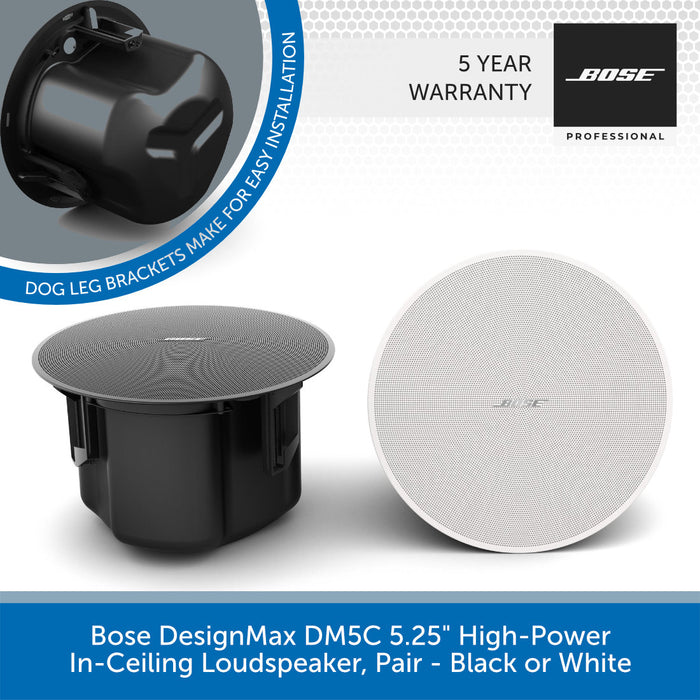

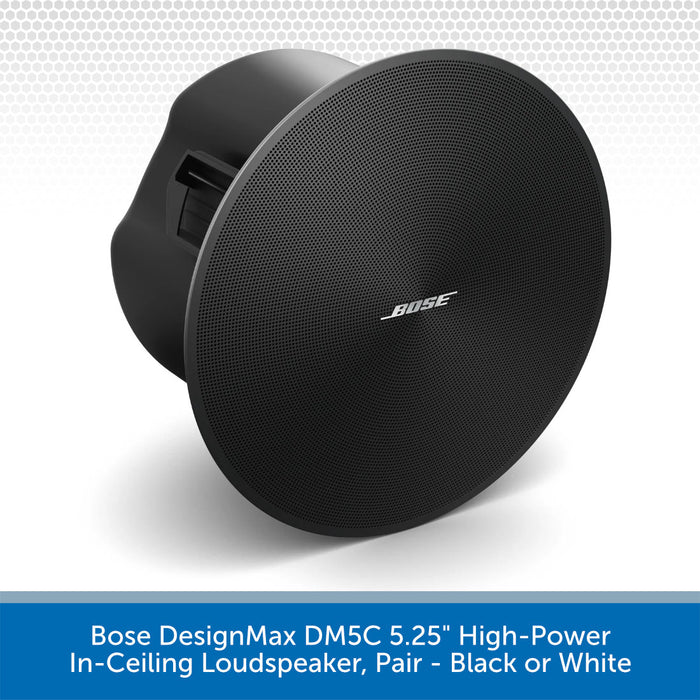

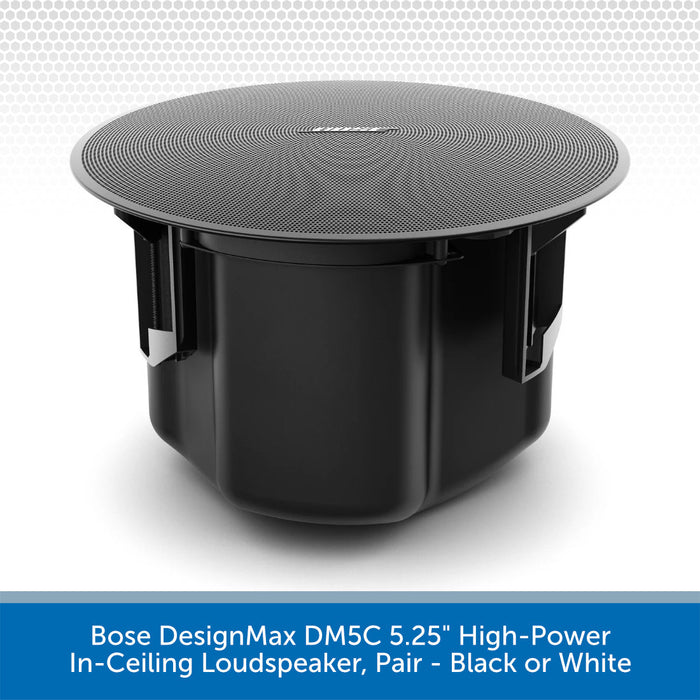

Bose DesignMax DM5C 5.25" High-Power In-Ceiling Loudspeaker, Pair - Black or White

by BOSE
Original price £555.00 (inc. VAT) - Original price £555.00 (inc. VAT)
Original price £555.00 (inc. VAT)
£555.00 (inc. VAT)
£555.00 (inc. VAT) - £555.00 (inc. VAT)
Current price £555.00 (inc. VAT)
SKU DM5CW
Colour: White
DETAILS

The Bose DesignMax DM5C In-Ceiling Loudspeakers combine powerful sound performance with sleek aesthetics, making them a perfect fit for any commercial space.

These 60-watt loudspeakers feature coaxial two-way drivers, including a 5.25-inch woofer and a 1-inch coaxial tweeter, delivering rich lows and clear, intelligible highs across a frequency range of 65 Hz to 20 kHz.

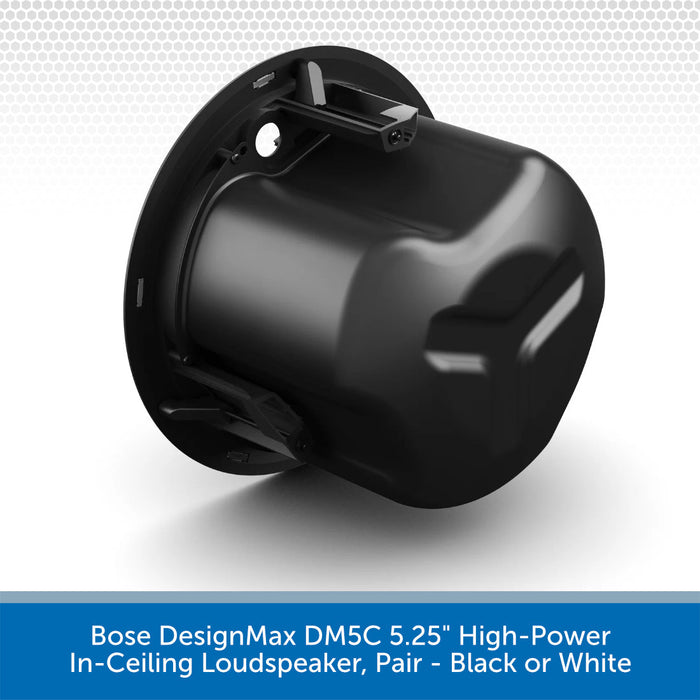

Designed for ease of installation, the DM5C loudspeakers utilize QuickHold mounting arms for fast, secure placement in any ceiling.

Bose DesignMax DM5C Key Features:

  • Coaxial Two-Way Drivers: Enjoy balanced sound with deep bass and crisp highs, thanks to the 5.25-inch woofer and 1-inch tweeter. The Dispersion Alignment system ensures consistent audio coverage throughout the room by aligning the tweeter's pattern with the woofer's coverage.

  • Elegant In-Ceiling Design: Available in black or white, the DM5C features a sleek, minimalistic grille with removable logos, allowing it to blend seamlessly with any room décor.

  • Quick and Easy Installation: The patented QuickHold mounting system reduces installation time and minimizes the risk of damage, making the DM5C a practical choice for any project.

  • Flexible System Integration: Combine the DM5C with other models in the DesignMax series to create a custom audio solution that meets the unique needs of your space. Enhance performance with Bose Professional DSPs and amplifiers for optimal sound quality.

  • Versatile Applications: Ideal for a variety of commercial settings, including performing arts venues, places of worship, conference centers, retail stores, and hospitality venues.

Why Choose the Bose DesignMax DM5C? The Bose DesignMax DM5C In-Ceiling Loudspeakers offer an ideal blend of performance, aesthetics, and ease of installation. Whether you're upgrading an existing system or designing a new one, these speakers provide the sound quality and flexibility needed to enhance any space.

In the Box:

  • 2 x DesignMax DM5C Loudspeakers in Black or White
  • 2 x Speaker Grilles
  • 2 x Tile Bridges
  • 1 x Cutout Template
  • 1 x Installation Guide
SPECS & DOWNLOADS

Bose DesignMax DM5C PDF Spec Sheet > DOWNLOAD HERE

Bose DesignMax DM5C Specifications

Physical:

  • Colours: Black (RAL 9005), white (similar to RAL 9003), paintable
  • Cutout Diameter: 9.8 in (250 mm)
  • Enclosure Material: Engineered-plastics front baffle with integrated steel-formed back can
  • Environmental Testing: Indoor only
  • Grille Material: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Logo: Rotatable, removable
  • Mounting/Rigging Provisions: (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
  • Net Weight: 9.6 lb (4.5 kg), loudspeaker with grille (single) / 1.9 lb (0.9 kg), tile bridge (single)
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (H×W×D): 11.9 in × 8.1 in (303 mm × 205 mm), loudspeaker diameter × depth / 9.6 in × 7.6 in (243 mm × 192 mm), backcan diameter × depth
  • Shipping Weight: 29.0 lb (13.2 kg), pair

Performance:

  • Frequency Range (-10 dB): 65 Hz – 20,000 Hz
  • Coverage, Horizontal: 130° conical
  • Maximum SPL at 1 m: 105 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, Continuous: 60 W
  • Power Handling, Peak: 240 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 87 dB
  • Transformer Taps, 100V: 6, 12, 25, 50 W, bypass
  • Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, 50 W, bypass
  • Coverage, Vertical: 130° conical

Transducers:

  • Crossover Frequency: 1.8 kHz, passive 2-way crossover
  • Driver Protection: Recommended high-pass protection 65 Hz with recommended 24 dB/octave filter
  • High-Frequency Transducer Quantity and Size: 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted
  • Low-Frequency Transducer Quantity and Size: 1 × 5.25 in (133 mm) woofer
}
