AUDAC EPA104 - 4 x 100W Quad Class-D Power Amplifier, Low Impedance 4Ω / 8Ω

by AUDAC
Original price £730.00 (inc. VAT) - Original price £730.00 (inc. VAT)
Original price £730.00 (inc. VAT)
£730.00 (inc. VAT)
£730.00 (inc. VAT) - £730.00 (inc. VAT)
Current price £730.00 (inc. VAT)
SKU EPA104

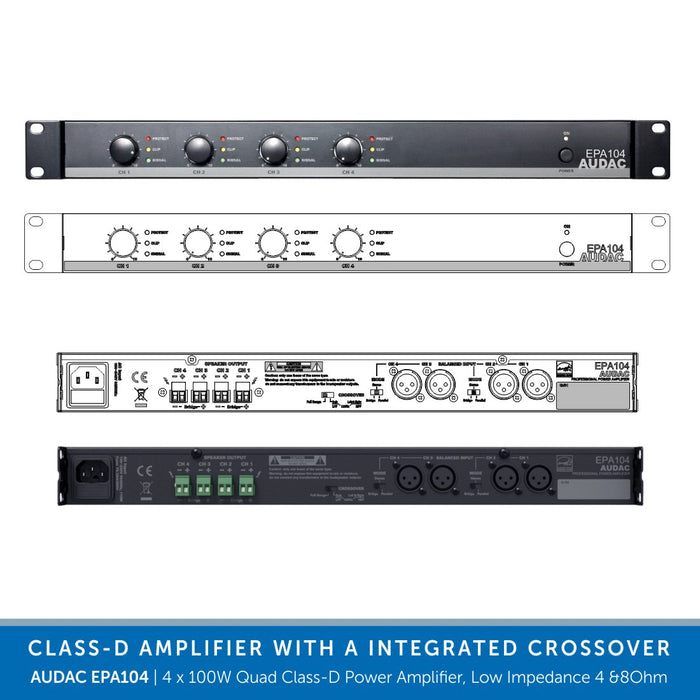

AUDAC EPA104 4 x 100W Quad Class D Power Amplifier
DETAILS

The AUDAC EPA104 is a quad-channel (4 x 100W) low-impedance power amplifier which is Energy-Star certified and features an integrated crossover.

This energy-efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode).

Their weight and compact size make these single-rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality.

Thanks to the complete passively cooled entity only a minimal of maintenance is needed while ensuring maximum reliability.

The quad-channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet.

Various specific functions and advanced circuitry guarantee optimal protection against DC malfunctioning, short circuits, overheating and overload.

Signal input connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors.

AUDAC EPA104 Key Features:

  • Lightweight class-D amplifier
  • Energy-star certified
  • Standby energy saving mode
  • Convection cooled
  • Terminal block output connections
  • XLR input connections with crossover operation mode switch
  • Integrated crossover
SPECS & DOWNLOADS

Download the Product Data Sheet HERE >

AUDAC EPA104 Specifications

  • RMS/AES power handling @ 4 Ω Stereo: 4 x 100 W
  • RMS/AES power handling @ 8 Ω Stereo: 4 x 50 W
  • RMS/AES power handling @ 8 Ω Bridge: 2 x 200 W
  • Frequency Response (± 3 dB): 20 Hz - 20 kHz
  • Signal / Noise: > 90 dB
  • THD+N (@ 1 kHz): < 0.1% (1/2 Rated Power)
  • Crosstalk (@ 1 kHz): > 70 dB
  • Amplifier Technology: Class-D
  • Cooling: Convection cooled
  • Operating temperature: 0° ~ 40° @ 95% Humidity
  • Outputs Connector: 2-pin Euro Terminal Block (Pitch - 5.08 mm)
  • Dimensions: 482 x 44 x 330 mm (W x H x D)
  • Weight: 4.500 kg
  • Mounting: 19”
  • Unit height: 1 HE
  • Construction: Steel
  • Colours: Black
}
