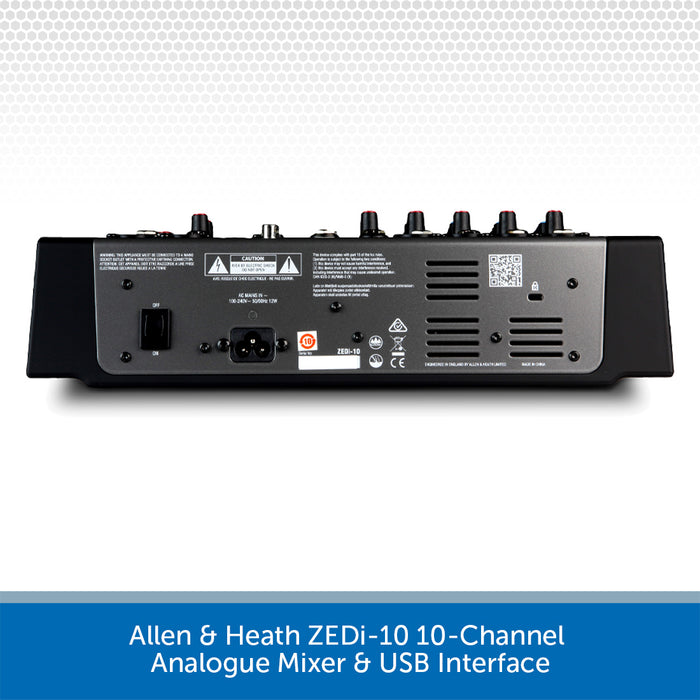

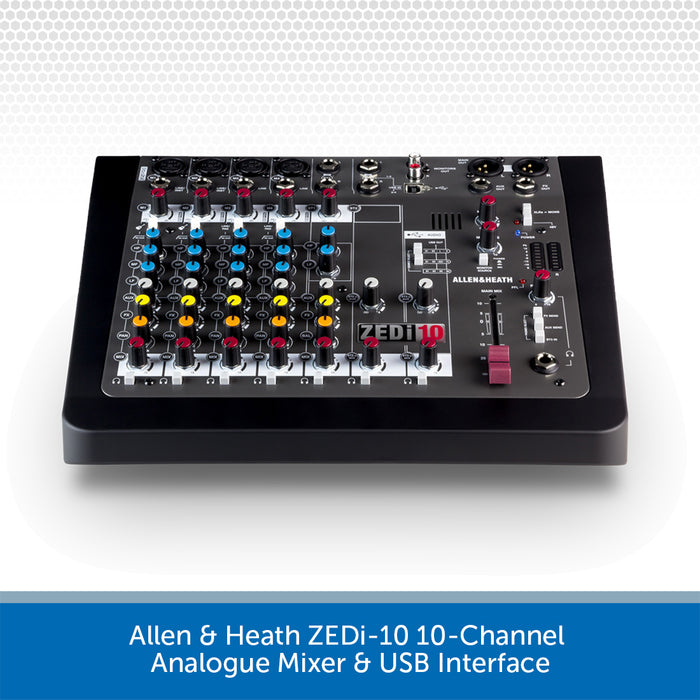

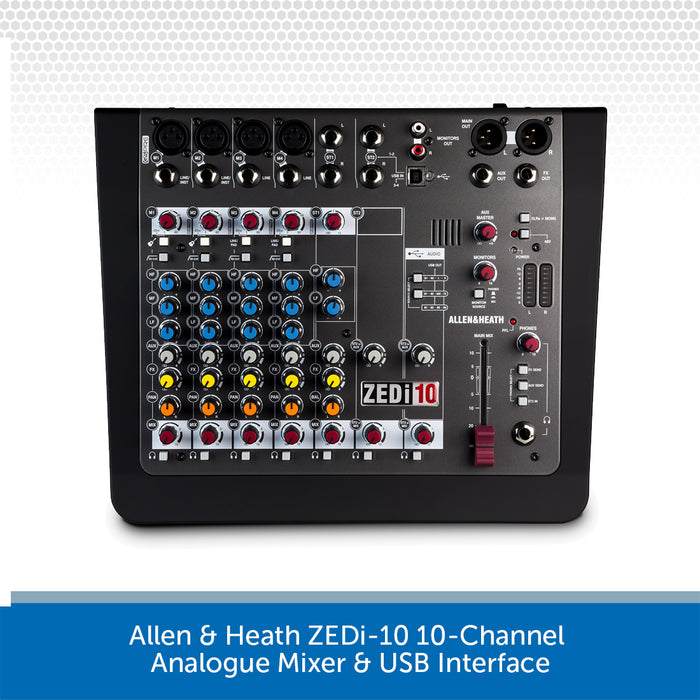

Allen & Heath ZEDi-10 10-Channel Analogue Mixer & USB Interface

Original price £229.00 (inc. VAT) - Original price £229.00 (inc. VAT)
Original price £229.00 (inc. VAT)
£229.00 (inc. VAT)
£229.00 (inc. VAT) - £229.00 (inc. VAT)
Current price £229.00 (inc. VAT)
SKU ALLZI10
DETAILS

The Allen & Heath ZEDi-10 is an 10-channel mixer & audio interface, making this a great choice for live and studio use.

The Allen & Heath ZEDi-10 provides musicians, recording artists, and venues with the robustness and tactile control of an analogue mixer, combined with the adaptability and ease of a 4×4 USB interface.

Featuring the newly developed GSPre boutique preamp design, inspired by the acclaimed GS-R24 studio recording console, the ZED offers remarkably low noise levels and ample headroom, delivering that cherished analogue warmth and depth. Guitarists will find it particularly appealing that the ZEDi-10 includes a pair of high-impedance Guitar DI inputs, eliminating the need for separate DI boxes when plugging in guitars directly to the mixer.

MIXER + USB INTERFACE

ZEDi-10 offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow. ZEDi-10 is class compliant with Mac and iOS.

CUBASE LE MUSIC PRODUCTION SOFTWARE INCLUDED

ZEDi-10 comes with the acclaimed Cubase LE software. Cubase LE offers powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its vast range of proven editing and sequencing tools can be used for a large range of music styles and areas of application.

Key Features:

  • 4 in, 4 out USB Audio Interface (24-bit/96kHz)
  • Cubase LE Software included
  • Cubasis LE App included
  • 4 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 3 band EQ for easy creative and corrective tonal shaping
  • FX out for connecting external effects units
  • Aux out for connecting a monitor speaker or in-ear / headphone monitoring
  • 60mm smooth travel fader on main mix
  • XLR main outputs
  • Flexible signal monitoring
  • 8 LED signal metering
  • 48V Phantom Power for condenser mics
  • Robust internal power supply
SPECS & DOWNLOADS

Allen & Heath ZEDi-10 Specifications

General

  • Input
    • Mono channel 1-2 (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu maximum)
    • Mono channel 3-4 (XLR) Input (For Nominal 0dBu) Pad IN +15dBu to –40dBu (+23dBu maximum)
    • Mono channel 1-2 Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
    • Mono channel 3-4 Line Input (Jack socket) +15dBu to -40dBu (+23dBu maximum)
    • Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)
  • Output
    • L/R Outputs (XLR) 0dBu (+18dBu maximum)
    • Aux & FX Output (Jack sockets) 0dBu (+18dBu maximum)
    • Monitor Output L/R (RCA Phono Sockets) 0dBu (+18dBu maximum)
  • Frequency Response
    • Mic in to Mix L/R Out, 30dB gain 10Hz to 30kHz +0.5/-1dB
    • Instrument/Line in to Mix L/R out 0dB gain 10Hz to 30kHz +0.5/-1dB
    • Stereo in to Mix L/R out 10Hz to 30kHz +0.5/-1dB
  • THD+n
    • Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter) 0.002%
    • Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.005%
    • Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
    • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%
  • Headroom
    • Analogue Headroom from nominal (0Vu) 18dB
    • USB in & out headroom from nominal (0Vu) 18dB
  • Noise
    • Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
    • Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -93dBu
    • Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -90dBu
  • USB Audio
    • USB Audio In/Out USB 2.0 compliant
    • Bit Depth 24 bit
    • Sample Rate 44.1, 48, 88.2, 96kHz

Physical & Dimensions

  • Height: 96.5mm
  • Width: 332.9mm
  • Depth: 274.6mm
  • Weight: 2.2kg

      }
