Adastra CC8V 2-Way Commercial In-Ceiling Speaker 100V/8ohm, 8" Woofer
Our Adastra CC8V 8" background ceiling speaker is a perfect installation for pubs, bars, restaurants and similar environments.
Featuring a rotary switch on the back, the speaker can be tapped to 10, 20, 30, 40 or 50W via 100v Line as well as an 8-ohm option. This is perfect as it can be altered to almost any environment depending on how many speakers you have and the load of your amplifier.
- 160° Dispersion angle
- Rotary selector switch for 100V line tappings or 8 ohms
- Spring-loaded terminals for easy connection
- Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
For easy and quick installation the speaker has spring-loaded terminals that simply click into place once your cable is inserted. A 160° dispersion angle enables you to strategically position your speaker in an area that provides equal sound throughout, instead of one area being louder than another.
SPECS & DOWNLOADS
Adastra CC8V 8 inch Ceiling Speaker
- Woofer: 200mmØ (8")
- Tweeter: 44mmØ (1.75")
- Frequency response: 60Hz - 20kHz
- Power max.: 8 Ohms120W
- Power rms: 8 Ohms60W
- Power rms: 100V line50W

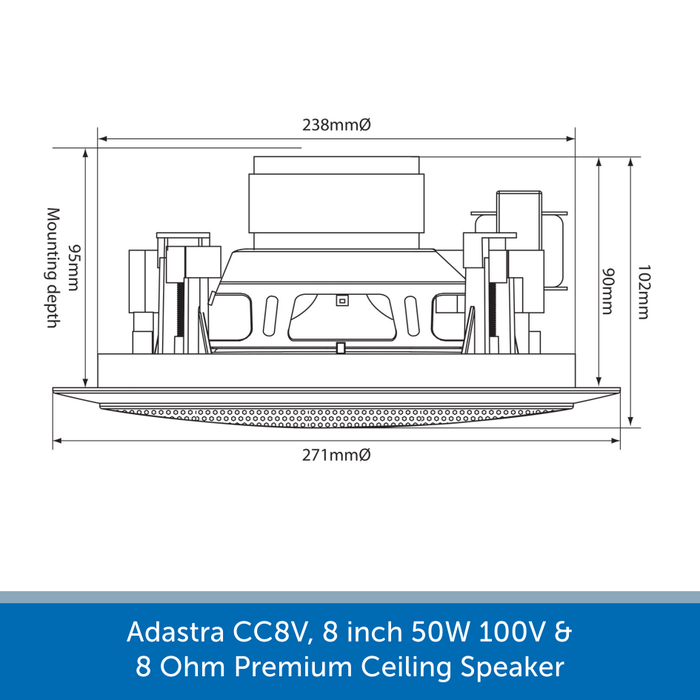

- Cutout: 238mmØ
- Mounting depth: 95mm
- SPL @ 1W/1m: 89dB (±2dB)
- Tappings: 10, 20, 30, 40, 50W & 8 Ohms
- Dimensions: 102 x 271mmØ
- Weight: 1.85kg
