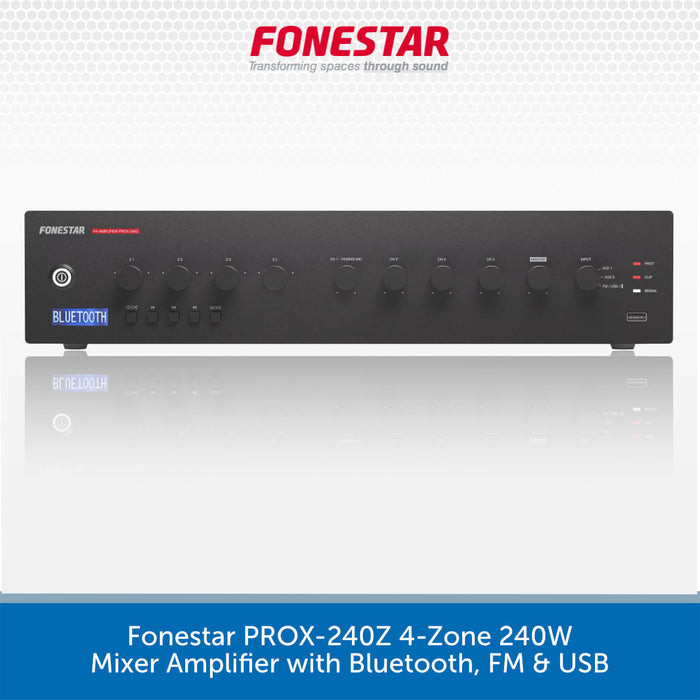

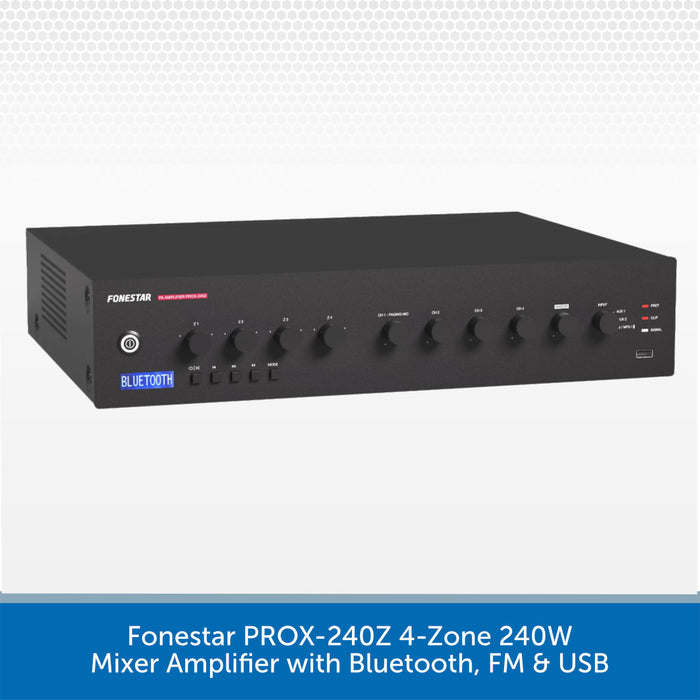

Fonestar PROX-240Z 4-Zone 240W Mixer Amplifier with Bluetooth, FM & USB
DETAILS
The Fonestar PROX-240Z is a powerful 240W mixer amplifier designed for commercial environments that require flexible and reliable audio distribution across multiple zones.
Equipped with four independent zone outputs, it allows precise control of sound levels in different areas, making it ideal for spaces such as restaurants, offices, retail outlets, and other locations requiring tailored audio management. It supports both 100V line and low-impedance speaker setups, offering versatility for various installation configurations.
This amplifier comes with an integrated Bluetooth, USB, and FM media player, providing convenient options for streaming background music. With its auto-play feature, music resumes automatically upon power-on, making daily operation effortless. The paging microphone input with VOX priority is perfect for applications where important announcements need to override music, and each of the four microphone inputs offers switchable +48V phantom power for use with dynamic or condenser microphones.
Additionally, the PROX-240Z offers two auxiliary inputs for connecting external devices such as radios, CD players, or multimedia sources. For safety, an emergency mute input is included, ensuring the amplifier can interface with fire alarm or lockdown systems to instantly mute the audio output in emergencies.
Combining user-friendly controls with professional-grade performance, the PROX-240Z is an ideal solution for multi-zone commercial audio installations.
Fonestar PROX-240Z Key Features:
- Output Power: 240W RMS, supporting 100V line or 4Ω low-impedance speakers
- Four-Zone Output with Volume Control: Independent volume adjustment for different areas
- Built-in Bluetooth, USB, and FM Media Player: Effortlessly stream music, with auto-play on power-on
- Paging Mic Input with VOX Priority: Override background music for important announcements
- 4 Microphone Inputs: Switchable +48V phantom power for dynamic or condenser microphones
- 2 Auxiliary Inputs: Connect external audio sources such as radios or media players
- Emergency Mute Input: Mutes audio output during emergencies when triggered by alarm systems
- User-Friendly Design: Simple and intuitive controls, including bass, treble, and zone volume adjustments
Fonestar PROX-240Z is Ideal For:
- Retail Spaces
- Restaurants & Cafés
- Bars & Pubs
- Offices & Conference Rooms
- Places of Worship
- Warehouses & Industrial Settings
SPECS & DOWNLOADS
Fonestar PROX-240Z PDF Spec Sheet > DOWNLOAD HERE
Fonestar PROX-240Z Specifications
-
Power: 240 W RMS
-
Frequency Response: 40-20,000 Hz (-10 dB)
-
Distortion: THD+N: < 1% @ 1 kHz
-
S/N Ratio: >77 dB
-
Protections: Overcurrent, DC and short-circuit at the output

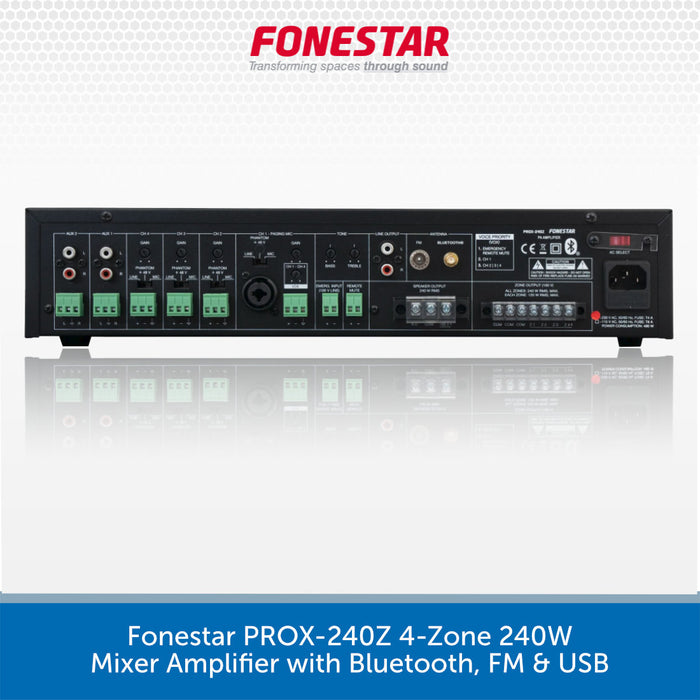

- Inputs: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock., CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector, Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω, Line signal level: 250 mV RMS (-12 dBV) / 100k Ω, 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω, 1 x emergency. Euroblock connector. Speaker line signal level 100 V, 1 x Mute (Emergency Priority) by contact closure. Euroblock connector
-
Outputs: 1 x line. 2 x RCA connector. Signal level 1.25 mV RMS (+2 dBV)
100 V or 4 Ω speaker output, or 4 x 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals -
Impedance: 4 Ω and 100 V line (83 Ω)
-
Operating Temperature: Operation: 0º ~ 40ºC
-
Maximum Humidity: 95%
- Power Supply: 230/115 V AC 50-60 Hz, 320 W, Fuse AC 230 V 3.15 A / 115 V 6 A
-
Dimensions: 433 x 89 x 360 mm depth. 2 U 19” rack
- Weight: 11.5 kg
