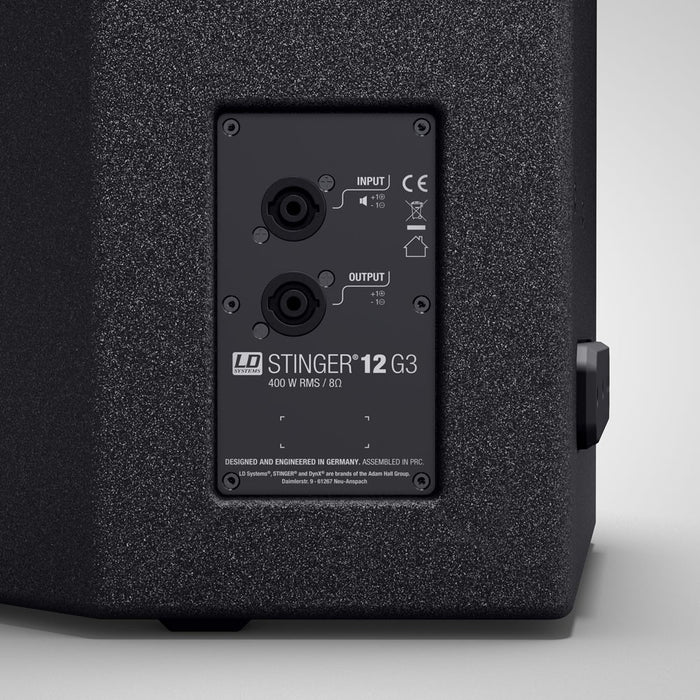

LD Systems Stinger 12 G3 Passive 12" 400W Passive PA Speaker
DETAILS
The LD Systems STINGER 12 G3 is a 12" Passive PA Speaker designed for professional PA applications on stage and in fixed installations.

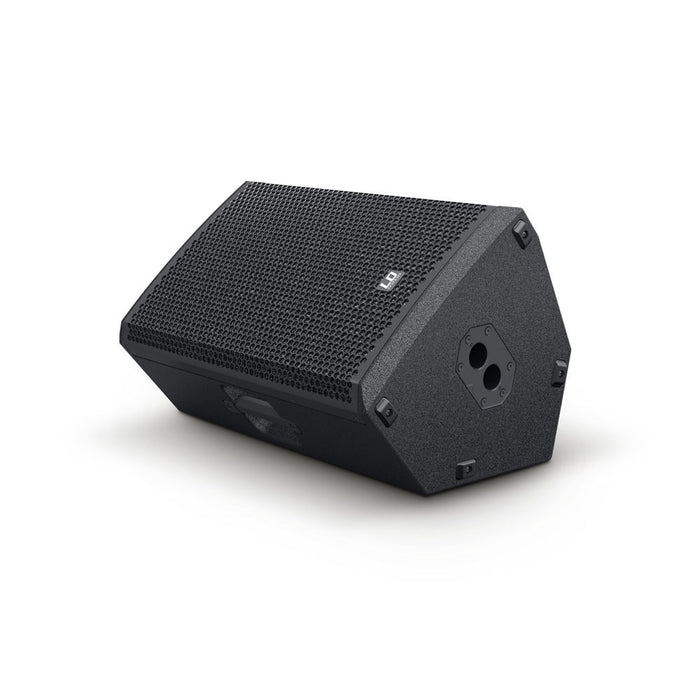

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems.

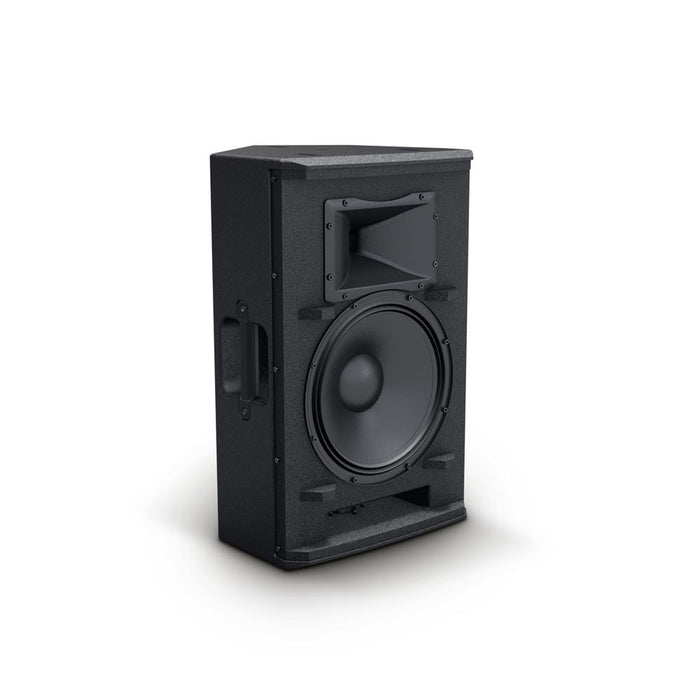

The Stinger® 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs.
The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.
The Stinger® 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers an exceptional stability and durability thanks to its extremely durable polyurea coating.
The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
LD Systems STINGER 12 G3 Key Features
- 2-way passive 12” bass reflex PA speaker
- 400 watts RMS power handling
- 125 dB maximum SPL
- 12“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage
- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

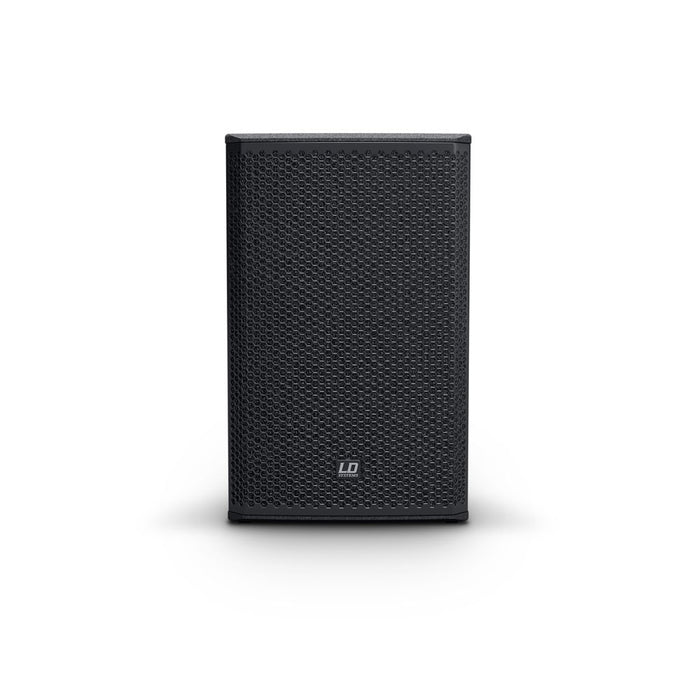

- Shock-resistant front grill provides maximum speaker protection

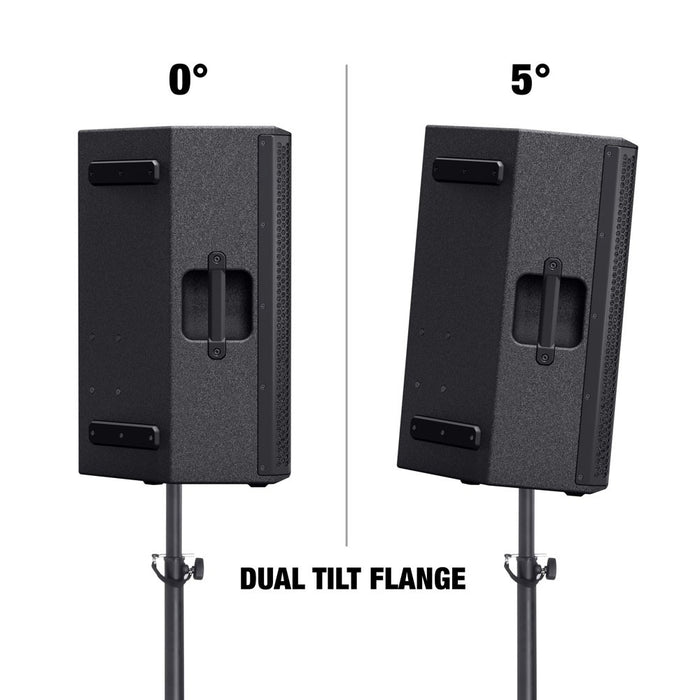

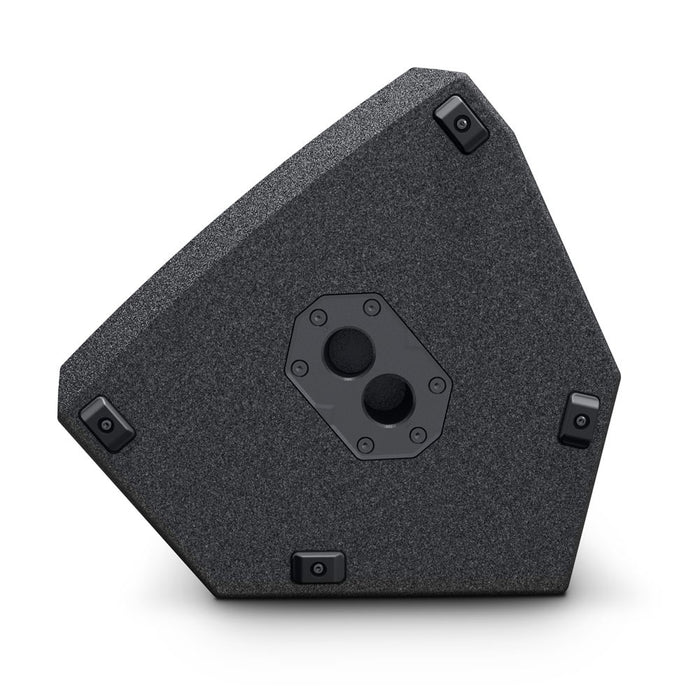

- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
- Large selection of smart installation and transport accessories
SPECIFICATION
LD Systems STINGER 12 G3 Specifications
- Product type: PA loudspeaker
- Type: passive
- Low/mid driver dimensions: 12 "
- Woofer size: 304.8 mm
- Dispersion (H x V): 90 x 50 °
- Load rating (RMS): 400 W
- Peak power: 800 W
- Frequency response: 58 - 20000 Hz
- SPL (1W/1m): 90 dB
- Max. SPL: 125 dB
- Impedance: 8 Ohm(s)
- Monitor angle: 54 °
- Width: 390 mm
- Height: 627 mm
- Depth: 377 mm
- Weight: 19.4 kg
LD Systems STINGER 12 G3 - PDF Downloads
