Intusonic INTUFORCE 2SDL70 2 x 65W Compact Power Amplifier, 4-8 Ohms

Original price £123.00 (inc. VAT) - Original price £123.00 (inc. VAT)
Original price £123.00 (inc. VAT)
£123.00 (inc. VAT)
£123.00 (inc. VAT) - £123.00 (inc. VAT)
Current price £123.00 (inc. VAT)
SKU 2SDL70
DETAILS

The INTUFORCE 2SDL70 is an incredibly compact 2x65W amplifier, perfect for small shops and cafes.

The Intusound INTUFORCE 2SDL70 2x65W amplifier is a great choice for businesses looking for a high-quality, compact and great sounding 2-channel amplifier to power their music system.

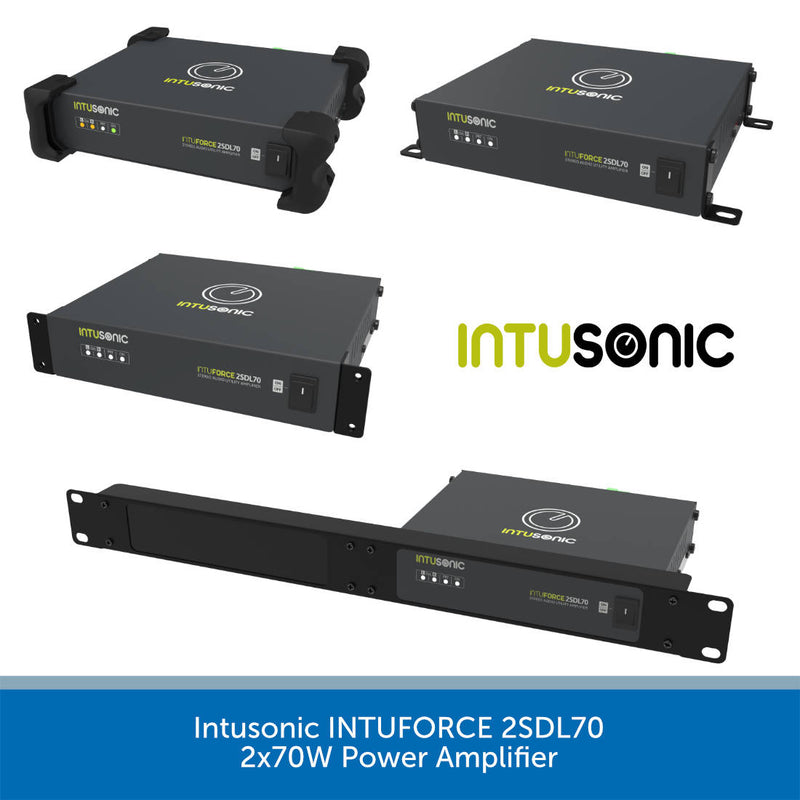

Thanks to multiple included mounting accessories, the 2SDL70 can be permanently installed under or on a counter, in a rack, or simply placed on a shelf.

Input & Output Control

The 2SDL70 features a balanced line input for connecting a phone or mixer, and a balanced output for routing the signal to another device - another amplifier for example.

Each channel has a 100Hz high pass filter which can remove unwanted muddy low-end frequencies - perfect when using with a subwoofer, amd each channel also has a separate volume control.

The 2SDL70 features an anti-tamper design, meaning there are no controls other than an on/off switch at the front. The volume dials are also recessed into the back of the amplifier. This means the volume can be set to a suitable level, without the worry of staff or other people adjusting the sound.

Amplification

The Intusonic INTUFORCE 2SDL70 features a phoenix style connector for the main speaker outputs for easy installation.

Each output is 65W RMS at 4 Ohm, Class-D. Class-D is very efficient and runs cool, removing the need for a fan. This makes the 2SDL70 silent when in operation.

KEY FEATURES:
  • 2 individual amplifier blocks with 65W power @ 4Ω each
  • Class D topology with switch mode power supply
  • Balanced (TRS and 3.5mm terminal strip) inputs
  • Ultra-High CMRR input circuitry for long cable runs
  • Input forwarding switch for stereo and parallel mono modes
  • Rear-side volume control for each channel with Peak LED
  • Separate 100Hz HPF for both inputs
  • Line-level LINK output on 3.5mm strip connectors with routing pre/post-volume for flexible scaling of cascaded systems
  • External MUTE contact
  • Speaker output via 5.0mm terminal strip connectors
  • Noiseless convection cooling without fan
  • Full metal case, supplied with TPR bumper corner, surface mounting brackets and front mounting brackets for different mounting options
  • AC mains voltage selector 115/230V
  • CE/ROHS compliant
SPECS & DOWNLOADS

Intusonic INTUFORCE 2SDL160 2x150W Power Amplifier

  • Rated Power @ 4Ω/8Ω: 2x 65W/35W
  • Frequency response: 20Hz – 20 kHz
  • S/N ratio (8Ω, full power): >88 dB
  • Resídual Noise (full power): <-71dBu
  • Crosstalk damping: >66dB
  • THD&N (rated power): <0.08%
  • AC IN: 115V/230~ 50/60Hz, max 160W
  • Dimensions: WxDxH 180x150x42mm (bare)
  • Dimensions: WxDxH 205x181x53mm (corners)
  • Weight: 1.22 kg

Downloads

Intusonic INTUFORCE 2SDL70 Spec Sheet

Intusonic INTUFORCE 2SDL70 User Manual
