Wharfedale Pro DP-4100 4-Channel Class-D Power Amplifier
The Wharfedale Pro DP-4100 Power Amplifier offers 4-channels & Class-D Amplification and is ideal for live sound & fixed installations.
The Wharfedale DP series of digital amplifiers features 5 models that deliver between 595W and 3400W per channel into 4 Ω. Four of these new models are 4 channel amplifiers which allow installers to create discrete and versatile systems
All models feature an advanced switch-mode power supply and super-efficient Class D topology which delivers high power with low distortion.
The DP series are incredibly light in weight. Starting from only 8.14 kg, installers and performers will really appreciate the ease this brings to transportation.
- Super lightweight
- Class-D Amplification
- 4 channel models
- Stable down to 2Ω
- Drive multiple 8Ω and 16Ω loudspeakers
- 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
- Ultra-quiet variable speed fans
- Advanced protection circuitry
- 70 V / 100 V compatible models
A full suite of protection circuitry includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long term system reliability and peace of mind should the worst ever happen.
The variable speed fans keep the amplifier rack quiet when not in use - and cool while its running at high volume.
Using Neutrik audio connectors and the highest quality internal fans, the DP series are not only lightweight but extremely high quality.
Reliability of any amplifier is essential and DP series have been specifically developed to deliver high power outputs in extreme professional conditions.
Modes and Switches
The DP Series feature stereo, bridge and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single multi-channel DP to power your whole sound system equally.
Mono mode saves external cabling by splitting a single input to feed two channels of the amplifier.

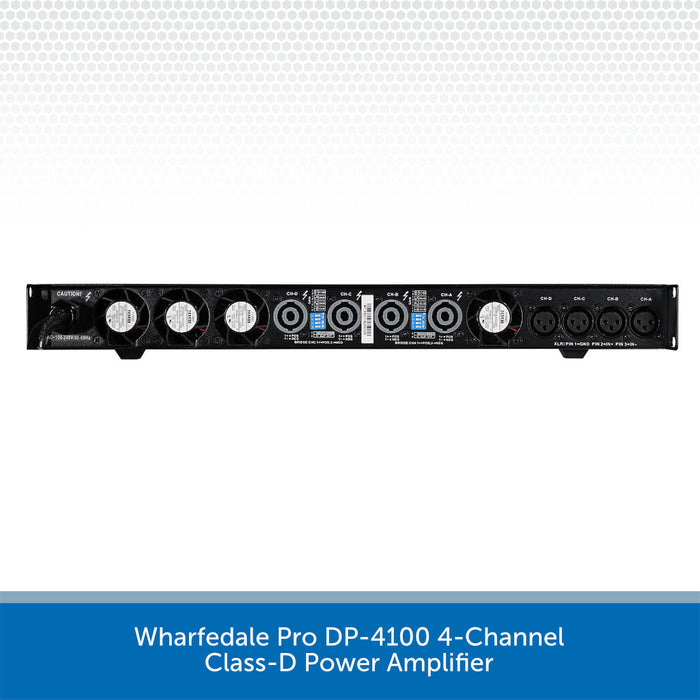

Gains can be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue.
The DP Series features XLR inputs with a maximum input level of +22 dBu allowing for integration with any typical professional audio system.
SPECS & DOWNLOADS
Wharfedale Pro DP-4100 Specifications
- 4 channels
- 8 Ohm 4 x 1000 Watts
- 4 Ohm 4 x 1700 Watts
- 2 Ohm 4 x 2890 Watts
- 16 Ohm Bridged 2 x 2000 Watts
- 8 Ohm Bridged 2 x 3400 Watts
- 4 Ohm Bridged 2 x 5780 Watts
- 100 V Hi-Z : No
- 70 V Hi-Z 4 x 1700 W
- Size (W×H×D) 483 x 45 x 376 mm
- Net Weight: 9.1kg
