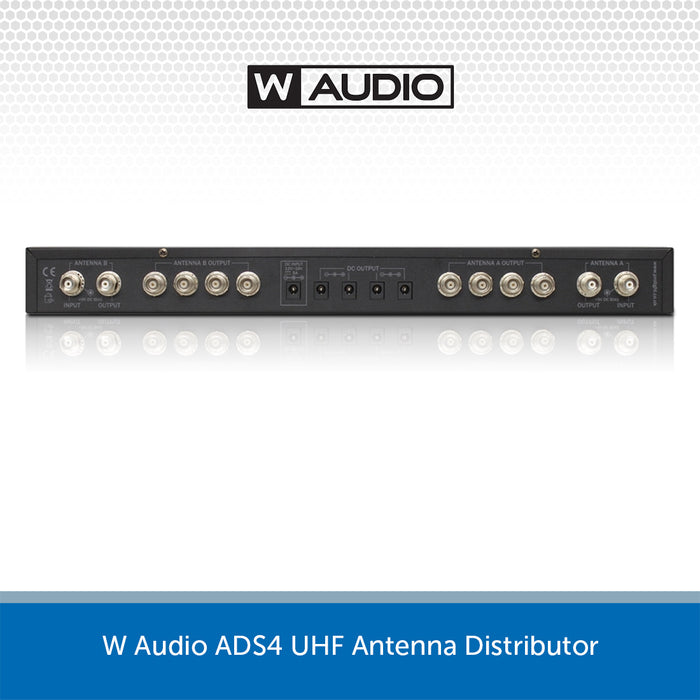

W Audio ADS4 UHF Antenna Distributor

by W-Audio
Original price £199.00 (inc. VAT) - Original price £199.00 (inc. VAT)
Original price £199.00 (inc. VAT)
£199.00 (inc. VAT)
£199.00 (inc. VAT) - £199.00 (inc. VAT)
Current price £199.00 (inc. VAT)
SKU MIC130

BLACK FRIDAY - Use code BF10 at checkout

Save an EXTRA 10% sitewide, including Sale items!

DETAILS



The W Audio ADS4 Antenna Distributor is designed to extend the aerial signal of wireless microphone systems, delivering crystal clear audio transmission even in remote locations.

The W Audio ADS4 Antenna Distributor is an innovative solution designed to extend the aerial signal of wireless microphone systems, providing a strong and reliable transmission even in areas where the microphone is not in close proximity to the main audio equipment. This is particularly beneficial for places of worship, schools, and sports centres where mobility and versatility are key.

This high-quality antenna distributor is equipped with four separate outputs, allowing you to connect multiple wireless microphone systems to a single antenna. The compact design of the ADS4 makes it easy to install and integrate into your existing audio setup, and it can be powered by either an external power supply or through a DC input from the connected wireless microphone system.

In addition, the W Audio ADS4 Antenna Distributor is compatible with optional paddle antennas (W Audio RPA2) which can be easily mounted and installed in remote areas, such as on stage or in a sports field. These antennas can receive the signal from the wireless microphone and transmit it back to the main audio equipment, ensuring that the signal remains strong and consistent even when the microphone is far away.

Whether you're looking to enhance your audio setup at a school assembly, church service, or sports event, the W Audio ADS4 Antenna Distributor provides the flexibility and reliability you need to deliver crystal-clear audio every time. With its intuitive design, powerful performance, and ease of use, the ADS4 is the ideal solution for professionals and enthusiasts alike.

W Audio ADS4 Key Features:

  • Loop thru function to allow system expansion
  • Dual 1:4 configuration
  • Wide band 400-1000Mhz operating frequency range
  • DC power distribution
  • BNC antenna connections
  • 9V DC bias (100mA) output for use with active antenna
  • On/off switch with LED power indication
  • Supplied with 13A UK PSU (12V DC, 5A), four 0.2m DC link cables, ten 0.5m BNC cables and two 5.0m BNC cables

    W-Audio Brand Logo

    SPECS & DOWNLOADS

    W Audio ADS4 Specifications:

    • Power supply: DC 8-12V, 5A (adaptor supplied)
    • Dimensions: 50 x 480 x 240mm
    • Weight: 2.3kg

    W Audio ADS4 - PDF Downloads

    Download the User Manual HERE >

    }
