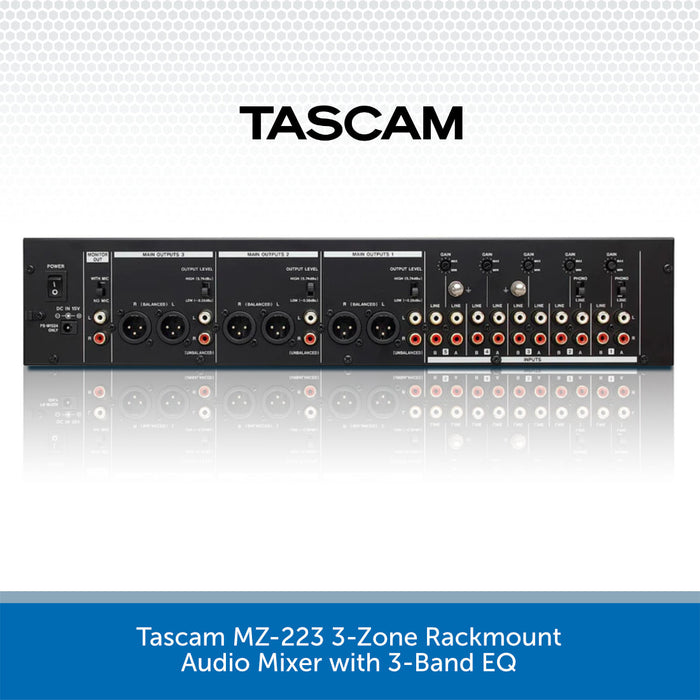

Tascam MZ-223 3-Zone Rackmount Audio Mixer with 3-Band EQ

by Tascam
£389.00 (inc. VAT)
SKU MZ-223

DETAILS

The Tascam MZ-223 is a 3-zone rackmount audio mixer designed for fixed installations into bars, gyms, retail stores & places of worship.

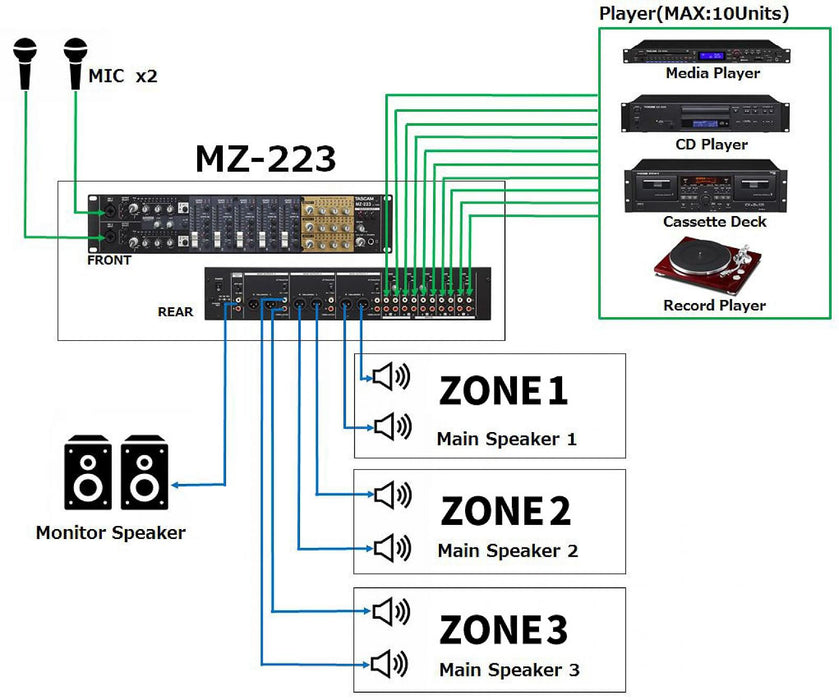

The professional mixer is designed for music reproduction & announcements in a variety of commercial environments that require multi-zone audio control. Each of the 3 output channels features a dedicated volume control & audio source selection so users can play different music in each of the zones.

Not only this, each of the 3 zone outputs is equipped with a 3-band equalizer providing a full range control over bass, mid & treble, unlike cheaper mixers that only have 2-band EQ.

Offering five stereo input channels for line-level signals from analogue playback sources like media players, tuners or smartphones/tablets. Each channel has its own gain control, peak LED and level fader.

Two additional microphone input channels – with level controls, LED level meters and 3-band equalizers – are available for announcements, speech reinforcement, karaoke or other uses with dynamic microphones. When used for announcements, for example, the built-in Talkover function can automatically lower the volume of background music according to the mic volume.

SPECS & DOWNLOADS

Tascam MZ-223 Specifications

Audio Inputs

  • Microphone inputs 1–2: Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD) Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Input impedance: 33 kΩ
  • Nominal input level: –65 dBu (VOLUME knob at MAX)
  • Unbalanced: –30 dBu (VOLUME knob at MIN): Line inputs (unbalanced)
  • RCA pin jacks
  • Nominal input level: –10 dBV
  • Maximum input level: 10 dBV
  • Input impedance: 22 kΩ

Audio outputs

  • Main outputs (unbalanced): RCA pin jacks
  • Nominal output level: –10 dBV
  • Maximum output level: 6 dBV
  • Output impedance: 200 Ω
  • Main outputs (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  • Nominal output level: 4 dBu
  • Maximum output level: 24 dBu
  • Output impedance: 200 Ω
  • Monitor outputs: RCA pin jacks
  • Nominal output level: –16 dBV
  • Maximum output level: 0 dBV
  • Output impedance: 200 Ω
  • Headphones output: 6.3-mm stereo jack
  • Maximum output power: 50 mW + 50 mW (into 32 Ω load)

Audio performance

  • Frequency response: 20 Hz – 20 kHz
  • Distortion: ≤0.03%
  • Crosstalk: 65 dB

Power supply and other specifications

  • Power supply: Dedicated AC adapter (PS-M1524)
  • Input voltage: AC 100–240 V, 50/60 Hz
  • Output voltage: DC 15 V
  • Output current: 2.4 A
  • Power consumption: 35 W
  • Overall dimensions (width × height × depth): 482 mm × 88 mm × 93 mm
  • Weight: 2.5 kg
  • Permissible operating temperature: 5–35 °C

Tascam MZ-223 PDF Downloads

Download the User Manual Here
