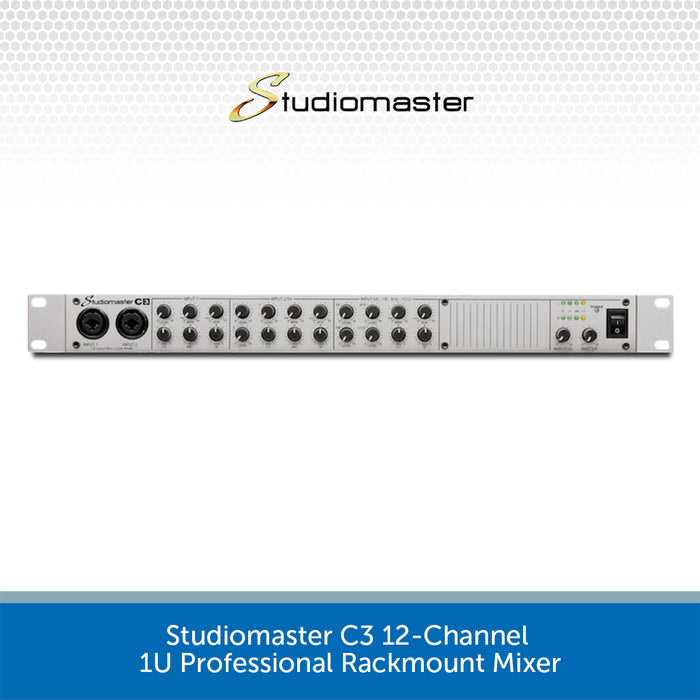

Studiomaster C3 12-Channel 1U Professional Rackmount Mixer

Original price £180.00 (inc. VAT) - Original price £180.00 (inc. VAT)
Original price £180.00 (inc. VAT)
£180.00 (inc. VAT)
£180.00 (inc. VAT) - £180.00 (inc. VAT)
Current price £180.00 (inc. VAT)
SKU C3
DETAILS

The Studiomaster C3 12-channel, 1U compact mixer is the perfect solution where functionality, versatility and compact design are important.

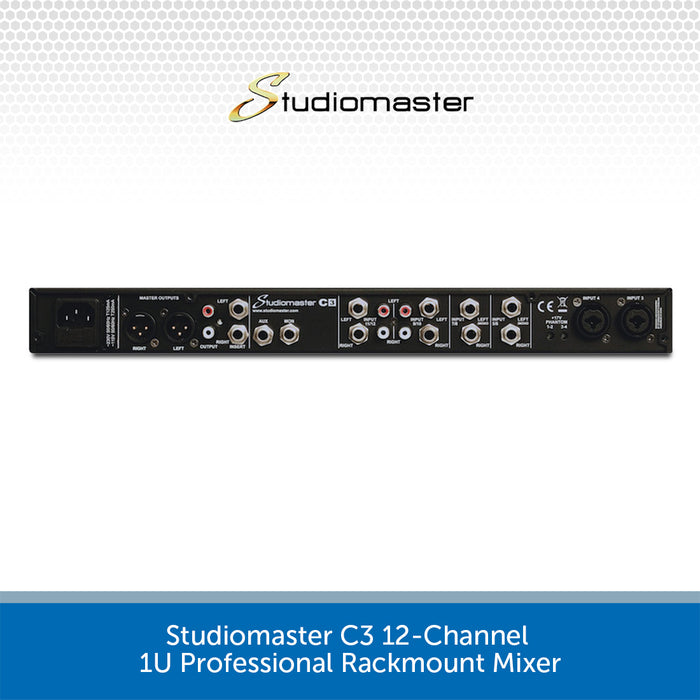

The C3 features four balanced combination XLR and Jack inputs allowing for the connection of microphones and line-level equipment, for added flexibility 2 of the mic inputs are on the front panel and 2 on the rear.

All of the mic pre-amps boast a studio-grade design, making the C3 mixer ideal for all microphones including condenser mics as phantom power is available. Not only this, all mic channels feature Studiomaster's 3-band EQ design, providing you with maximum control across the crucial vocal range.

There are four stereo inputs offering a selection of Jack and RCA/Phono connections making the C3 perfect for most playback formats including CD, MP3 Players, laptops & smartphones. Each stereo input has an individual level control and shared 2-band EQ that gives an extra dimension.

The stereo outputs are on balanced XLR and RCA/Phono connections and feature LED metering on the front panel, so you can see exactly what is going on.

Housed in a 1U rack chassis, the C3 can be rack-mounted into a 19" cabinet or flight case.

Studiomaster C3 Key Features:

  • 12 Inputs
  • 3 Band dedicated EQ for channel 1
  • 3 Band shared EQ for channels 2/3/4
  • 2 Band shared EQ for 4 Stereo Channels
  • 2 Aux Sends
  • Balanced Inputs and Outputs
    SPECS & DOWNLOADS

    Download the Studiomaster C3 PDF User Manual HERE >

    Studiomaster C3 Specifications

    • Inputs: 12
    • Mic Inputs: 4
    • Stereo Inputs: 4
    • Frequency Responce: 22Hz – 40kHz (+/-0.5dB)
    • Distortion: THD @ 1kHz 0.008%
    • Residual Noise: -93dBu
    • Dynamic Range: >105dBu
    • Metering: Peak reading 4 segment 2 colour LED bargraphs
    • Mic EQ: Hi, Mid, Lo
    • Line EQ: Hi, Lo
    • Maximum Output Levels: XLR+23dBu, RCA+17dBu, Aux&Mon+23dBu
    • Power Requirements: 115-240V ~ 50/60Hz 52-104mA max
    • Dimension W*H*D: 482 x 44 x 265 (mm)
    • Weight Net/Shipping: 3.6kg / 4.6kg

      }
