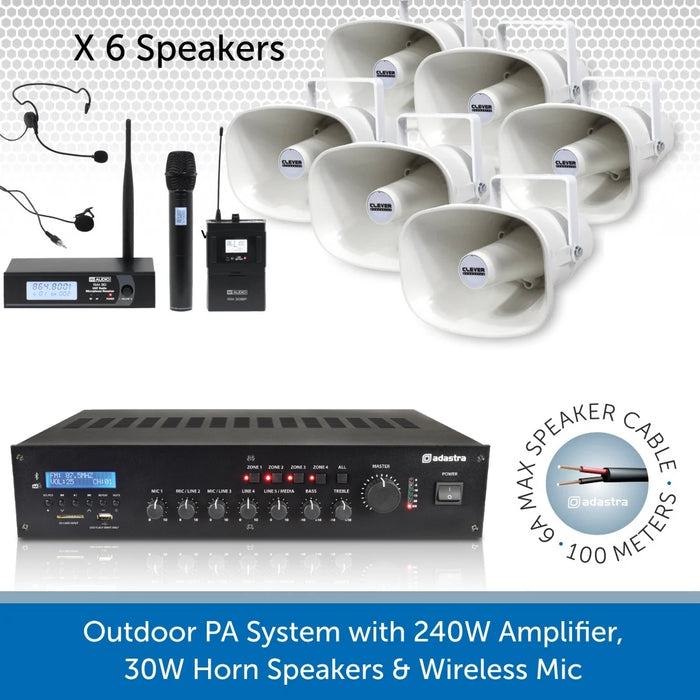

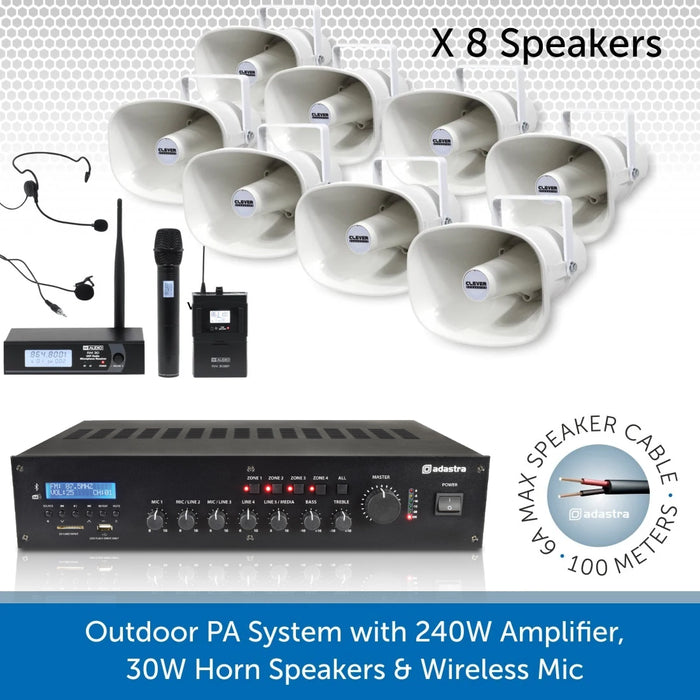

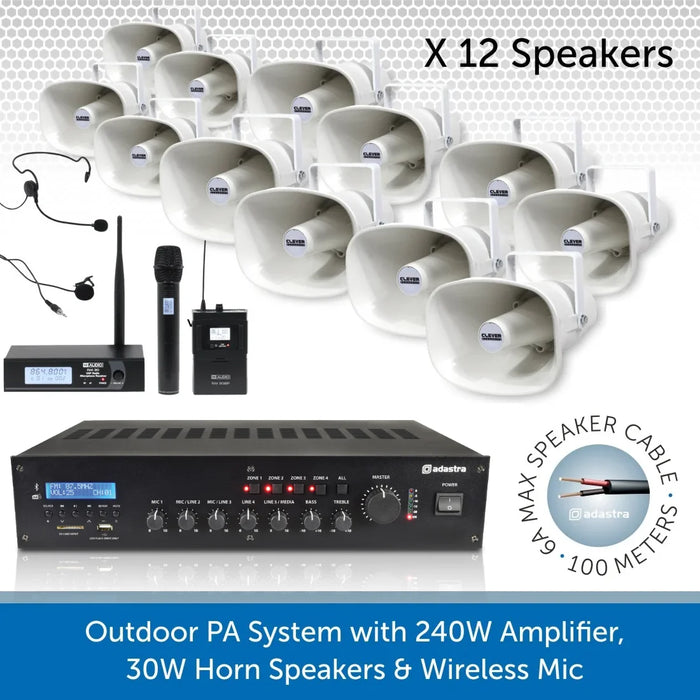

Public Address Speaker Kit with 240W Amplifier, 30W Horn Speakers & Wireless Mic
A high-quality complete PA speaker system perfect for public address and background music applications. Supplied with 30W weatherproof horn speakers, 240W 100V PA amplifier, wireless handheld and headset microphone, and 100m of double insulated speaker cable.
Our public address speaker system is ideal for fixed installations both indoors or outdoors in any commercial environment such as warehouses & factories, sports facilities & equestrian centres, schools and working environments etc.
The complete PA speaker system offers maximum reliability and premium sound quality for continuous duty applications that require sound for long periods of time.
Monacor 240W 100V PA Mixer-Amplifier Key Features
A powerful single-zoned 240W 100V PA Mixer-Amplifier that provides a reliable solution for fixed PA applications needing high-quality audio playback.
Features an array of mic/line inputs for connecting a host of media devices such as smartphones & tablets for music playback, and wireless/desktop microphones for paging & announcement applications.
Supplied in a solid 2U housing perfect for installation into 19" rack cabinets. Alternatively, the Monacor 240W amplifier can sit on a desktop or counter.
- 1 x 240 W
- 3 microphone inputs, one of which is a balanced input
- Mic 1/line 1 with adjustable input sensitivity, priority circuit and adjustable automatic talkover
- 2 stereo line inputs
- 1 telephone input for telephone systems with audio output
- Speaker outputs via screw terminals
- 1 line output
- Input and output level controls
- 2-way tone control for the output
- 48 V phantom power for channel 1, can be activated as required
- 482 mm (19") rack installation with supplied mounting brackets
Wireless Microphone System
The supplied single-channel wireless microphone system comes with a wireless headset, handheld, and tie-clip microphone perfect for a range of applications.
Connecting to MIC 1 on the rear of the amplifier will provide you with VOX Priority, momentarily muting the other inputs (i.e. music/radio) when an announcement is made.
The wireless mic receiver is extremely compact and sits perfectly on top of the Monacor Amplifier. It comes with an adjustable antenna to boost the signal and has a maximum range of approx. 50m line-of-sight.
Weatherproof Horn Speakers
Our indoor/outdoor public address system is supplied with a choice of 6, 8, 10 or 12 high-quality weatherproof horn speakers that offer crystal-clear audio playback.
The weather-resistant horn speakers are IP66 rated and made from solid ABS construction making it perfect for use all-year-round.
The outdoor horn speakers operate on 100V Line and have power tappings of 15W & 30W.
- 3 year warranty
- Multiple power taps
- High intelligibility speech reproduction
- Rugged ABS enclosure
- Weather resistant construction suitable for outdoors
- Supplied with adjustable mounting bracket
Double Insulated Speaker Cable
All of out outdoor PA systems are supplied with a 100m drum of double insulated outdoor speaker cable tried and tested for the job.
SPECS & DOWNLOADS
240W 100V Mixer Amplifier Specifications
- Channels: 6
- Power rating: 240 W
- Peak music power output (PMAX): 340 W
- Inputs: 5 mV/600 ? (mic), 350 mV/10 k? (aux), 1 V/10 k? (telephone)
- Frequency range: 50-16,000 Hz
- Equalizer bass: ± 10 dB/100 Hz
- Equalizer treble: ± 10 dB/10 kHz
- S/N ratio: 66 dB (mic), 80 dB (aux)
- THD: < 0.5%
- Power supply: ~ 230 V/50 Hz/740 VA
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 740 VA
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 430 x 88 x 380 mm, 2 RS
- Width: 430 mm
- Height: 88 mm
- Depth: 380 mm
- Rack spaces, RS: 2
- Weight: 6.6 kg
- Connections: 1 x 6.3 mm/XLR (combo), 1 x 6.3 mm jack (mic 1), 2 x 6.3 mm jack (mic 2-3), 2 x RCA L/R (aux 1-2), screw terminals (telephone), 1 x RCA L/R (line out)
30W 100V Weatherproof Horn Speakers Specifications
- Input: 100V, 70V
- Power taps @ 100V: 15W, 30W
- Power taps @ 70V: 7.5W, 15W
- Impedance: 330KΩ, 670Ω
- Sensitivity (1W/1m): 103dB (±3dB)
- Maximum SPL (Rated W/1m): 118dB
- Frequency response: 300Hz-16kHz
- Connections: Flying leads
- Dimensions: 210 x 282 x 290mm
- Weight: 2.1kg
- IP rating: IP66
Wireless Microphone System Specifications
- Operating Frequency: 863.1MHz
- Handheld/microphone transmitter (requires 2x AA Batteries)
- Beltpack Transmitter (requires 2x AA Batteries)
- Tie-Clip Microphone & Headset Microphone
- Metal UHF receiver
- 6.35mm (1/4”) jack output
- 6.35mm (1/4”) jack to jack patch cable
- UK mains PSU
- Foam lined, ABS carry case
Double Insulated Speaker Cable Specifications
- CSA: 2 x 1.15mm²
- Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
- Dimensions: 7.8mmØ
- Current: 15A max.
- Sheath: Black
- Length: 100m
