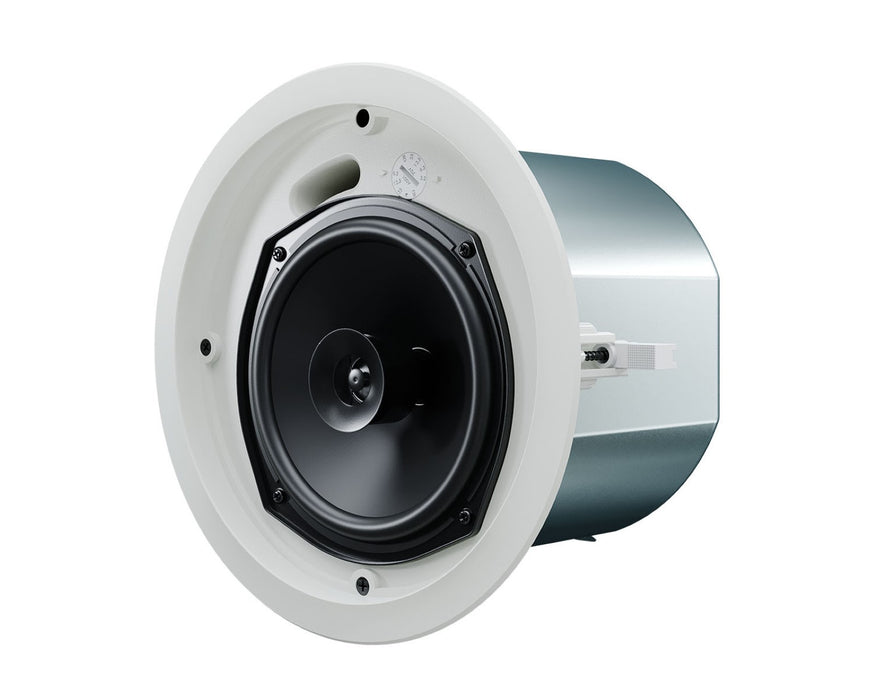

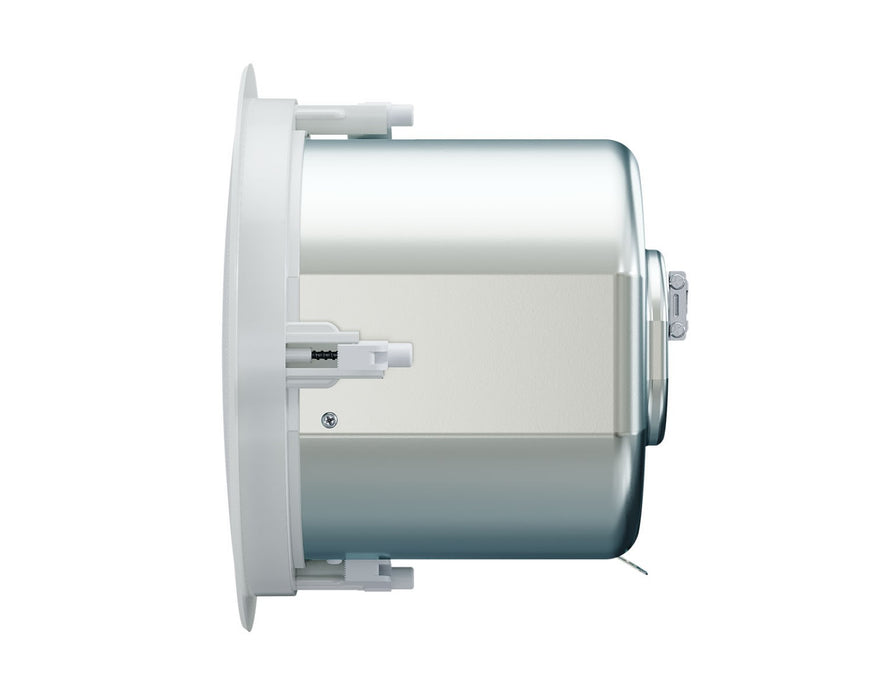

Optimal Audio UP 6 - Full-Range 6.5" Passive Ceiling Speaker 60W

Sold out
Original price £174.00 (inc. VAT) - Original price £174.00 (inc. VAT)
Original price
£174.00 (inc. VAT)
£174.00 (inc. VAT) - £174.00 (inc. VAT)
Current price £174.00 (inc. VAT)
SKU OPAUP6W
DETAILS

The UP 6 Ceiling Speaker operates at 70V, 100V and Low Impedance, delivering clear, consistent sound in commercial spaces with easy installation and versatile performance options.

The Up 6 offers a sleek and unobtrusive solution for delivering exceptional audio performance in various commercial settings. Whether it's hotels, retail spaces, bars, or restaurants, the Up 6 ensures consistent coverage and crystal-clear sound reproduction, catering to diverse environments while mindful of cost considerations.

With its integrated fixing system, installation is a breeze, ensuring a seamless and tidy setup. Encased in a neutral white finish with a perforated steel grille, the Up 6 blends effortlessly into any decor.

Powered by a 6.5" (162mm) driver, this speaker excels in both background music and speech projection. Its conical 110° coverage pattern ensures uniform sound dispersion throughout the designated area.

Versatility is key with the Up 6, as it can operate on a series of 70 or 100 Volt taps or at low impedance, providing flexibility in system configuration. Tap selection is conveniently managed via a rotary switch discreetly located behind the removable grille.

For optimal performance and speaker protection, pairing the Up 6 with SmartAmps or Zone systems is recommended. With the Zone series, incorporating a ZonePad and utilizing the WebApp simplifies system setup and offers intuitive control for end users, enhancing overall user experience.


Optimal Audio UP 6 Key Features:

  • 6” coaxial driver
  • Discreet size
  • Unobtrusive design
  • 16 ohm or 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware
SPECS & DOWNLOADS

Optimal Audio UP 6 Specifications

  • TYPE:  Two-way, full range, passive, ceiling speaker
  • FREQUENCY RESPONSE (with preset): 115Hz – 18kHz ± 3dB / -10dB @80Hz
  • DRIVERS:  LF: 6.5” (162mm), Coated paper / HF: 1" (25mm) exit / 0.7" 920mm) metal dome
  • RATED POWER:  60W (AES) 120W (Peak)
  • NOMINAL IMPEDANCE:  16Ω
  • SENSITIVITY (1W/1m):  90dB
  • MAXIMUM SPL:  108dB (cont), 111dB (peak)
  • CROSSOVER: 2.7kHz passive
  • RECOMMENDED HIGH-PASS FILTER:  24dB/octave @ 80Hz
  • TRANSFORMER TAPS @ 70V:  60, 30, 15, 7.5W
  • TRANSFORMER TAPS @ 100V:  60, 30, 15W
  • DISPERSION (-6dB):  110˚ conical
  • BACK CAN:  Zinc-plated Steel
  • BAFFLE:  ABS
  • PROTECTIVE GRILLE:  Perforated steel with cloth backing
  • FIRE RATING:  UL94-V0
  • CONNECTORS:  4 Pin Euroblock with link out
  • FITTINGS:  C-ring support backing plate
  • DIMENSIONS:  (Ø) 251mm x (D ) 205.1mm / (Ø) 9.88” x (D ) 8.08”
  • CUT-OUT DIAMETER:  222mm (8.74”)
  • WEIGHT:  3.0kg (6.6lbs)


      }
