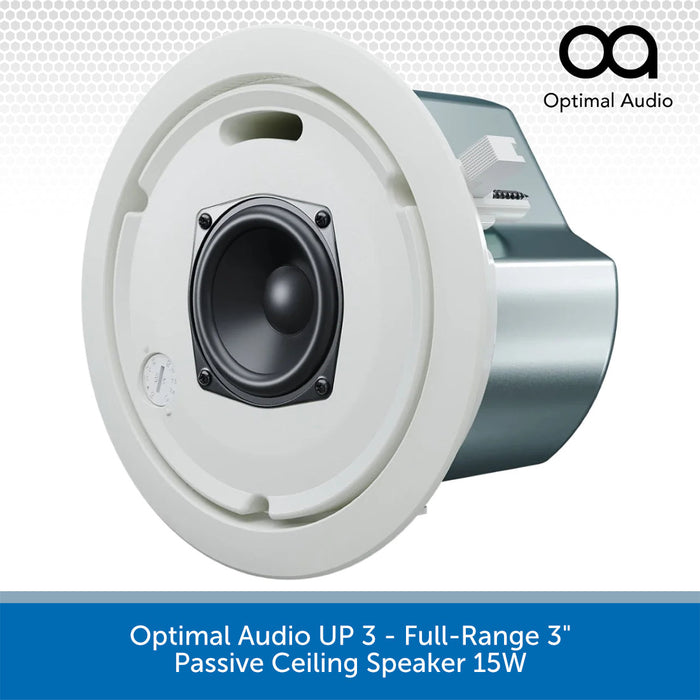

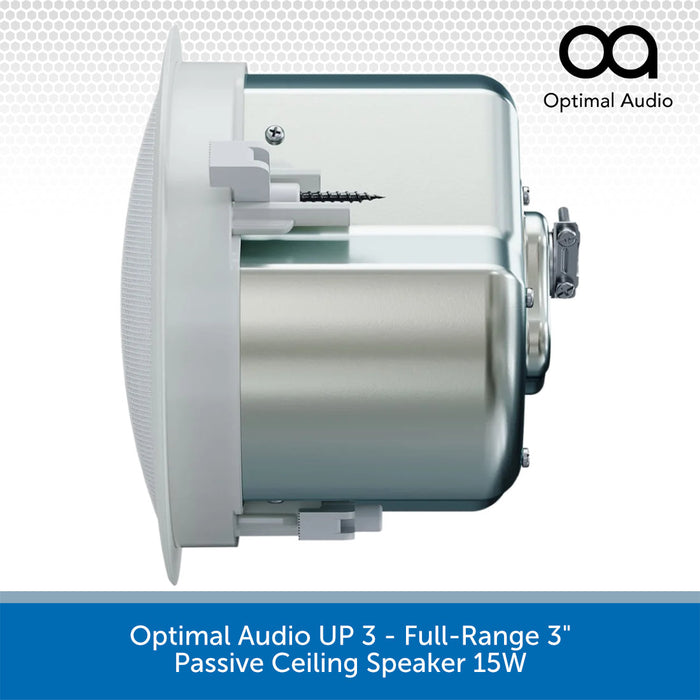

Optimal Audio UP 3 - Full-Range 3" Passive Ceiling Speaker 15W

Sold out
Original price £92.00 (inc. VAT) - Original price £92.00 (inc. VAT)
Original price
£92.00 (inc. VAT)
£92.00 (inc. VAT) - £92.00 (inc. VAT)
Current price £92.00 (inc. VAT)
SKU OPAUP3W
DETAILS

The UP 3 Ceiling Speaker operates at 70V, 100V and Low Impedance, delivering clear, consistent sound in commercial spaces with easy installation and versatile performance options.

The Up 3 offers a sleek and unobtrusive solution for delivering exceptional audio performance in various commercial settings. Whether it's hotels, retail spaces, bars, or restaurants, the Up 3 ensures consistent coverage and crystal-clear sound reproduction, catering to diverse environments while mindful of cost considerations.

With its integrated fixing system, installation is a breeze, ensuring a seamless and tidy setup. Encased in a neutral white finish with a perforated steel grille, the Up 3 blends effortlessly into any decor.

Powered by a 3" (78mm) driver, this speaker excels in both background music and speech projection. Its conical 130° coverage pattern ensures uniform sound dispersion throughout the designated area.

Versatility is key with the Up 3, as it can operate on a series of 70 or 100 Volt taps or at low impedance, providing flexibility in system configuration. Tap selection is conveniently managed via a rotary switch discreetly located behind the removable grille.

For optimal performance and speaker protection, pairing the Up 3 with SmartAmps or Zone systems is recommended. With the Zone series, incorporating a ZonePad and utilizing the WebApp simplifies system setup and offers intuitive control for end users, enhancing overall user experience.


Optimal Audio UP 3 Key Features:

  • 3” full range driver
  • Discreet size
  • Unobtrusive design
  • 8 ohm or 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware
  • Pendant and bezel-less grille accessory available
SPECS & DOWNLOADS

Optimal Audio UP 3 Specifications

  • TYPE:  Full range, passive, ceiling speaker
  • FREQUENCY RESPONSE (with preset): 95Hz – 15kHz ± 3dB / -10dB @68Hz
  • DRIVERS:  3” (78mm), Coated paper
  • RATED POWER:  20W (AES) 40W (Peak)
  • NOMINAL IMPEDANCE:  8Ω
  • SENSITIVITY (1W/1m):  84dB
  • MAXIMUM SPL:  97dB (cont), 100dB (peak)
  • RECOMMENDED HIGH-PASS FILTER:  24dB/octave @ 90Hz
  • TRANSFORMER TAPS @ 70V:  15, 7.5, 3.8, 1.9W
  • TRANSFORMER TAPS @ 100V:  15, 7.5, 3.8W
  • DISPERSION (-6dB):  130˚ conical
  • BACK CAN:  Zinc-plated Steel
  • BAFFLE:  ABS
  • PROTECTIVE GRILLE:  Perforated steel with cloth backing
  • FIRE RATING:  UL94-V0
  • CONNECTORS:  4 Pin Euroblock with link out
  • FITTINGS:  C-ring support backing plate
  • DIMENSIONS:  (Ø) 202mm x (D ) 165mm / (Ø) 7.95” x (D ) 5.7”
  • CUT-OUT DIAMETER:  178mm (7.01”)
  • WEIGHT:  1.6kg (3.5lbs)


      }
