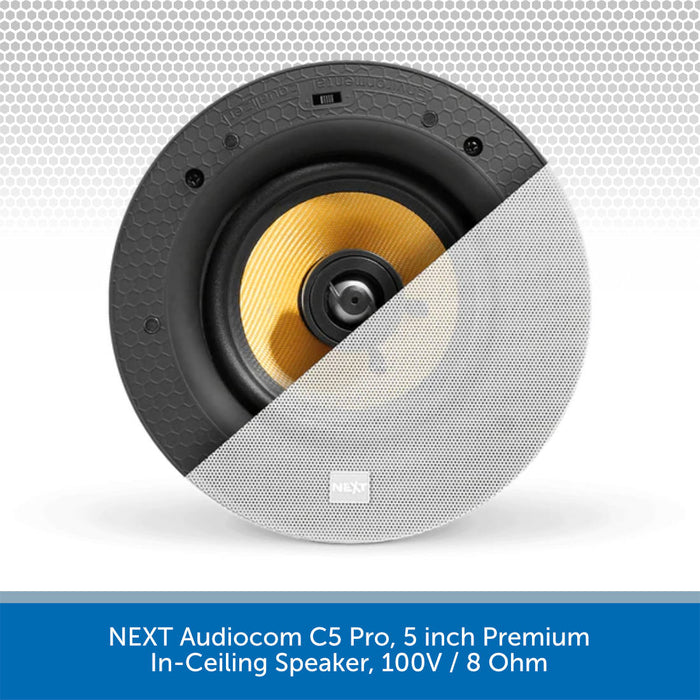

NEXT Audiocom C5 Pro, 5 inch Premium In-Ceiling Speaker, 100V / 8 Ohm
The C5 Pro by NEXT Audiocom is a professional flush-mount ceiling speaker with an elegant design, intended to be installed in false ceilings, walls or panels.
It combines modern style with outstanding audio performance that fills your room with powerful warm and richly detail sound.
The integrated transformer allows you to use the C5 Pro on 100V line or low impedance 8Ω depending on your installation needs.
Either in small or big installations, the C5 Pro offers an impressive audio clarity and a powerful sound, even when used at 100V. The C5 Pro is capable to achieve high volume keeping the hi-fi sound for a pleasant audio reproduction.
You can adjust the tweeter, having the sound exactly where you need it, covering the exact places you need.
100V / 8Ω Input
The integrated transformer allows you to use the speaker at 100V line or low impedance 8Ω depending on the needs of your installation.
HF Driver Protection
The HF Driver Protection gives the speaker a higher protection on the High Frequency Driver against unexpected audio peaks during music reproduction.

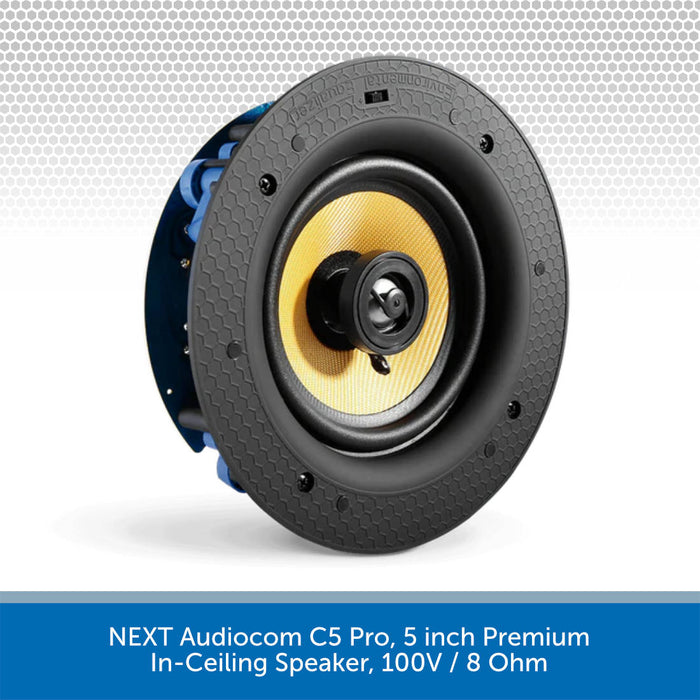

The frameless design allows you have an unobtrusive sound source, keeping the architectural requirements of your installation.
The logo is detachable, which means you can remove it if a clean design is needed on your installation.
You can use the Environment Equalizer to automatically adjust the sound, for the area where the ceiling speaker is installed.

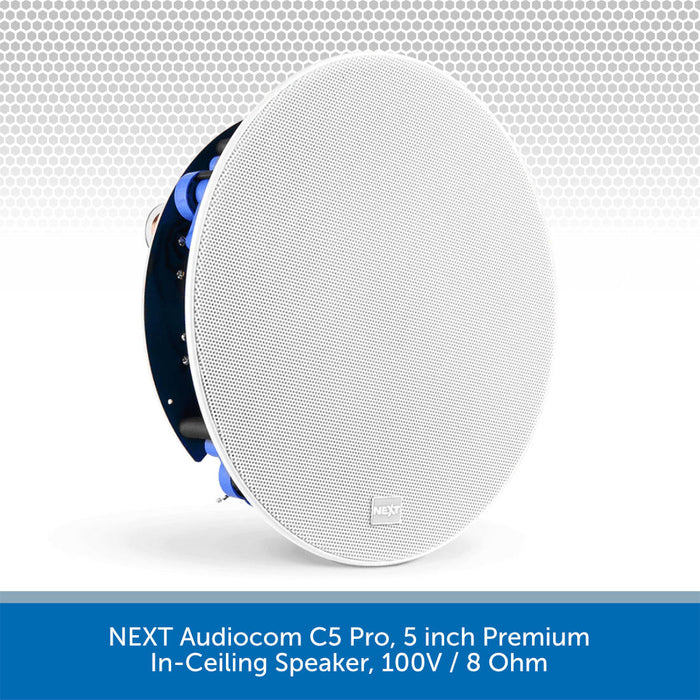

The magnetic grille allows a very easy installation without screws. You just need to install your speaker on the wall or ceiling and place the magnetic grill that will fit automatically.
SPECS & DOWNLOADS
NEXT C5 Pro Ceiling Speaker Specifications
- Product Type: 2-Way Premium Ceiling Speaker (8Ω/100V)
- Frequency Response (-6dB): 70Hz - 20kHz
- Nominal Coverage: 100° Conical
- RMS Power: 40W (8Ω)
- Program Power: 80W (8Ω)
- Nominal Impedance: 8Ω (Transformer bypass)
- Sensitivity (1W, 1m): 90dB
- Maximum SPL (calculated): 109dB
- Transformer Taps 100V: 2.5W | 5W | 10W
- Transformer Taps 70V: 1.25W | 2.5W | 5W
- Low Frequency Driver: 5.25" Reinforced Polymer Cone Woofer
- High Frequency Driver: 0.75" Pivoting (±10°) Titanium Dome Tweeter
- Input Connectors: Gold Plated Binding Posts (8Ω) / Quick Release Connector (100V)
- Special Features: Adjustable Environment Equalizer (±3dB)
- Grille: White Frameless Magnetic Grille (Paintable) | Detachable Logo
- IP Rating: Indoor Use
- Dimensions (ØxD): 204mm x 78mm (8" x 3.1")
- Cutout Diameter: 179mm (7")
- Mounting Depth: 78mm (3.1")
- Wall / Ceiling Thickness: 3mm to 15mm (0.12" to 0.59")
- Fixation: Plastic Clamps for Ceiling Fixation
- Net Weight: 1.2kg (2.6lb)
- Shipping Weight: 1.5kg (3.3lb)
