MUXLAB MonoPro XLR - CAT5e and CAT6 Audio Extension Balun

by MUXLAB
Original price £36.99 (inc. VAT) - Original price £36.99 (inc. VAT)
Original price £36.99 (inc. VAT)
£36.99 (inc. VAT)
£36.99 (inc. VAT) - £36.99 (inc. VAT)
Current price £36.99 (inc. VAT)
SKU 500025
Model and Connector Type: 500025 (Male XLR)

DETAILS

Extend XLR audio over Cat5e/6 cable for distances of up to 1.5km. An ideal alternative to long cable runs on stage or in other demanding environments.


Cat5e/6 cable can provide a more practical and cost-effective solution to long runs of XLR cable, while its twisted pair design actively reduces crosstalk and interference, resulting in clearer audio signals. Additionally, Cat5e/6 cable can be purchased in longer lengths than standard XLR cable, making it an ideal choice for situations where the amplifier or mixer is far away from your microphones or other XLR equipment - such as on stage or in large places of worship.

The MuxLab MonoPro is an XLR balun designed specifically to extend standard AES analog or digital XLR audio channels within a professional audio environment. Available with either a male XLR (SKU: 500025) or female XLR connector (SKU: 500026), these baluns enable you to transmit high-quality audio signals over a single Cat5e/6 cable, making them ideal for demanding environments such as rental or staging.

With heavy-duty cable strain relief and locking XLR3 connectors, these baluns are built to withstand the rigors of professional use. They can support active microphones (requiring the ground pin connected at both ends) and can extend stereo signals up to distances of 5,000ft/1.5km or digital audio signals up to a distance of 1,400ft/426m.

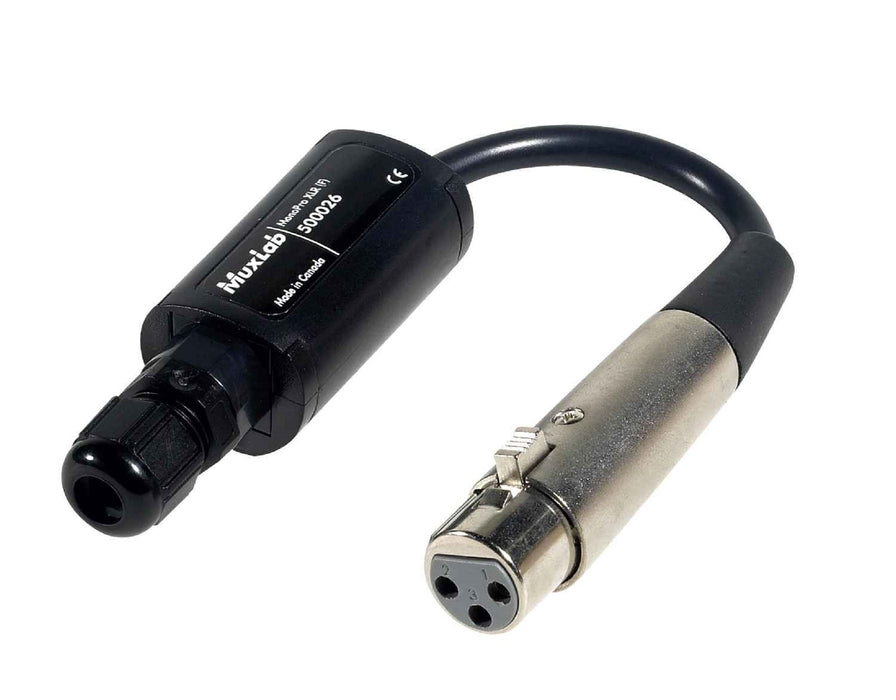

The 500025 balun features an XLR3 plug, while the 500026 balun features an XLR3 socket, allowing you to easily connect your audio devices to your audio system. Whether you're a professional audio engineer, DJ, or musician, the MuxLab MonoProT XLR Baluns are the perfect solution for extending your audio signals over long distances without sacrificing quality or reliability.


Key Features:
  • Line level audio up to distances of 5,000ft / 1.5km via single Cat5e/6
  • Digital audio up to distances of 1,400ft / 426m via single Cat5e/6
  • Impedance: output 600 ohm/input 600 – 20k ohm (analog); 110 ohms (digital)
  • Locking metal XLR3 male / female connectors with cable strain relief
  • Optional terminal for ground/shield
  • Limited Lifetime Warranty

SPECS & DOWNLOADS

Input/Output

  • Male XLR3 (500025)
  • Female XLR3 (500026)


Distance

  • Analog: 5,000ft/1.5km
  • Digital: 1,400ft/426m


Connector Type

  • Locking XLR3 Male (500025)
  • Locking XLR3 Female (500026)


Cable: Cat5e/6 STP or UTP

Impedance: 110 ohm balanced
Frequency Response: 20 Hz to 20 kHz
Signal-to-Noise Ratio: >90dB
THD: <0.05%
Common Mode Rejection Ratio: >60dB @ 20 Hz to 20 kHz
Power: None required
Dimensions: 3.35" x 0.9" x 0.9" (85 x 23 x 23mm)
Weight: 0.11 lbs (0.05 kg)

}
