Monacor PA-900 Background Audio System 120w Mixer Amplifier - 100v Line 4/8 ohm

by Monacor
£184.00 (inc. VAT)
SKU PA-900
DETAILS

The Monacor PA-900 120w mixer amplifier is ideal for installs into small environments such as homes, cafes, pubs and shops that are wanting to run a background music system.

The Monacor PA-900 is a high quality 120w mixer amplifier perfect for installing into small environments that require a background audio set up such as homes, cafes, pubs and offices.

Featuring 4 x microphone inputs, the compact amp can also be used to make announcements, perfect for making last calls, speeches and any other time you need to get everybody's attention.

The mixer amplifier can support 100v Line operation as well as 4 and 8 ohms.



Some other key features include:

  • 1 x 120 w

  • Silent operation due to fanless cooling concept

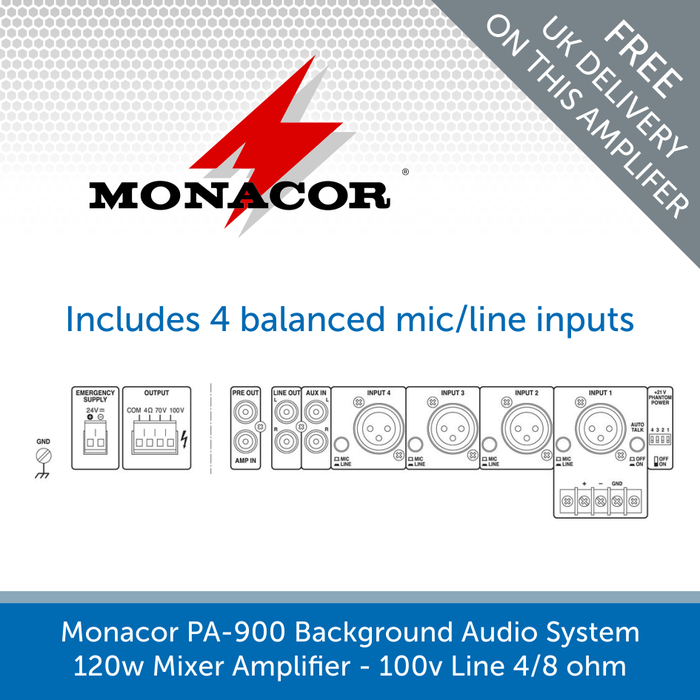

  • 4 balanced mic/line inputs

  • Mic 1 with priority circuit and automatic talkover

  • Additional connection for desktop microphone via screw terminal

  • 1 aux input

  • Speaker outputs via screw terminals

  • Line output

All Monacor products have a 3 year warranty

All Monacor products carry an industry leading 3 year warranty

See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS
    Monacor PA-900 120w Mixer Amplifier
    Channels:     5
    Power rating:    120 W
    Power rating at 4 Ω:    120 W
    Power rating at 100 V:     120 W
    Peak music power output (PMAX):     160 W
    Output impedance:    4 Ω
    Inputs:
    • 3 mV (mic)
    • 200 mV (line)
    • 140 mV (aux)
    Frequency range:     50-15,000 Hz, ±3 dB
    Equalizer bass:     ± 10 dB/100 Hz
    Equalizer treble:     ± 10 dB/10 kHz
    S/N ratio:     > 80 dB
    THD:     < 0.5%

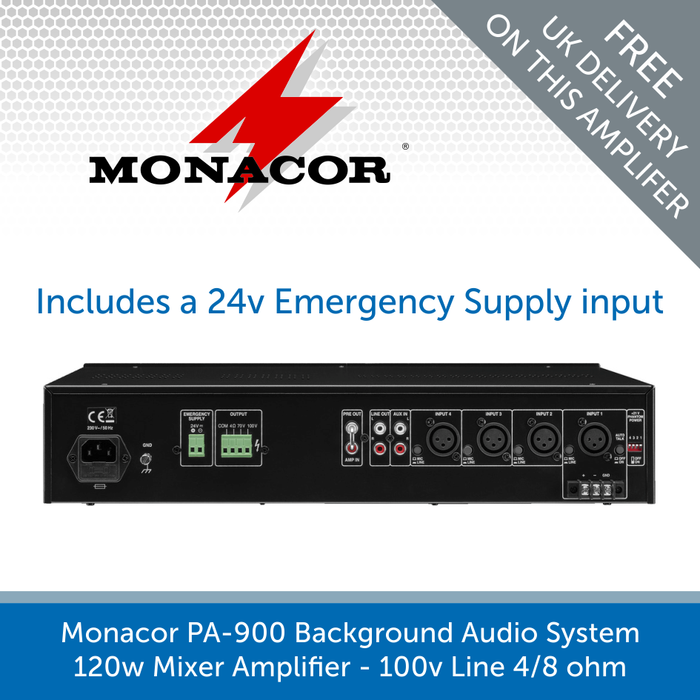

    Power supply:    ~ 230 V/50 Hz/300 VA, DC 24 V/9 A
    Mains voltage:     ~ 230 V
    Mains frequency:     50 Hz
    Power consumption, operation:     300 VA
    Operating voltage (possible alternative):    DC 24 V
    Power supply (possible alternative):     DC 9 A
    Admiss. ambient temp.:    0-40 °C
    Dimensions:     482 x 88 x 275 mm, 2 RS
    Width:     482 mm
    Height:     88 mm
    Depth:     275 mm
    Rack spaces: RS     2
    Weight:     9.9 kg
    Connections:
    • 4 x XLR (mic/line)
    • 1 x RCA L/R (aux)
    • screw terminals (speakers)

    Monacor PA-900 Mixer Amplifier - PDF file download

    Download the User Manual HERE

    Download Product Data Sheet HERE
