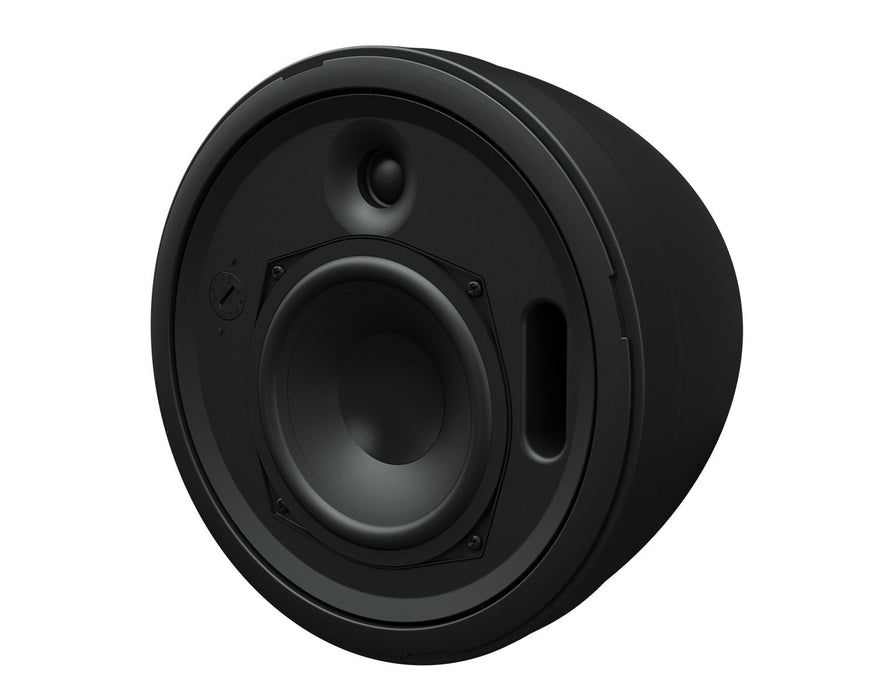

Martin Audio Adorn ACP55T 5.25" 2-Way Pendant Speaker, 100V - Black or White

Original price £270.00 (inc. VAT) - Original price £270.00 (inc. VAT)
Original price £270.00 (inc. VAT)
£270.00 (inc. VAT)
£270.00 (inc. VAT) - £270.00 (inc. VAT)
Current price £270.00 (inc. VAT)
SKU MAUACP55T
Colour: Black
DETAILS

The ACP-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotel atriums and exhibition spaces to retail outlets, bars and restaurants.

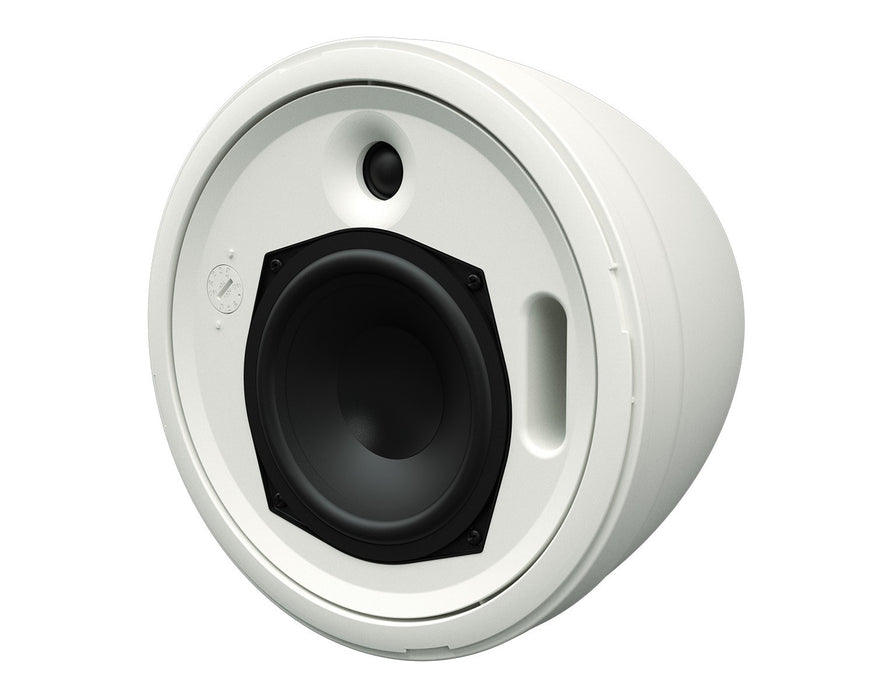

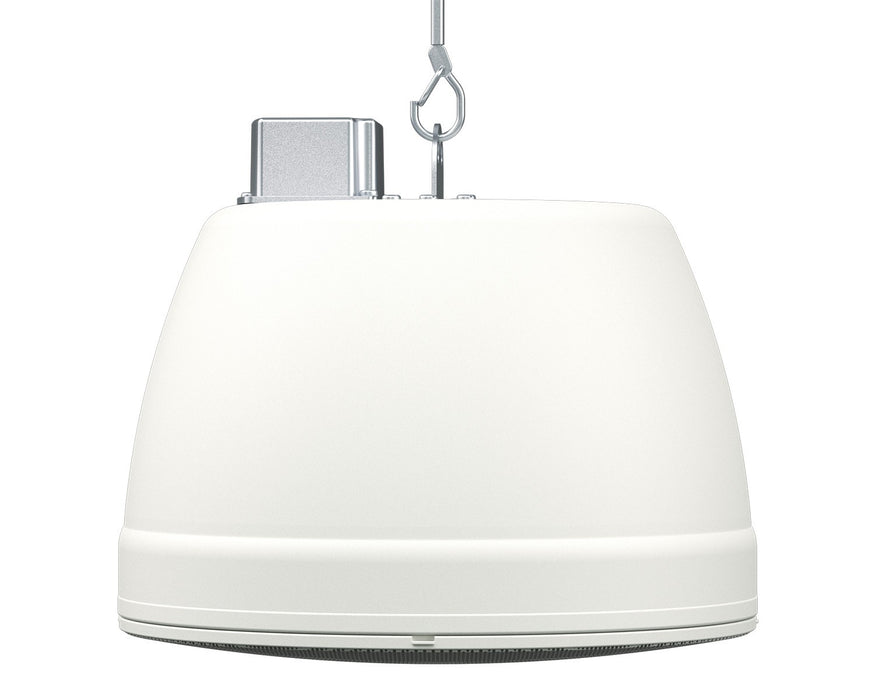

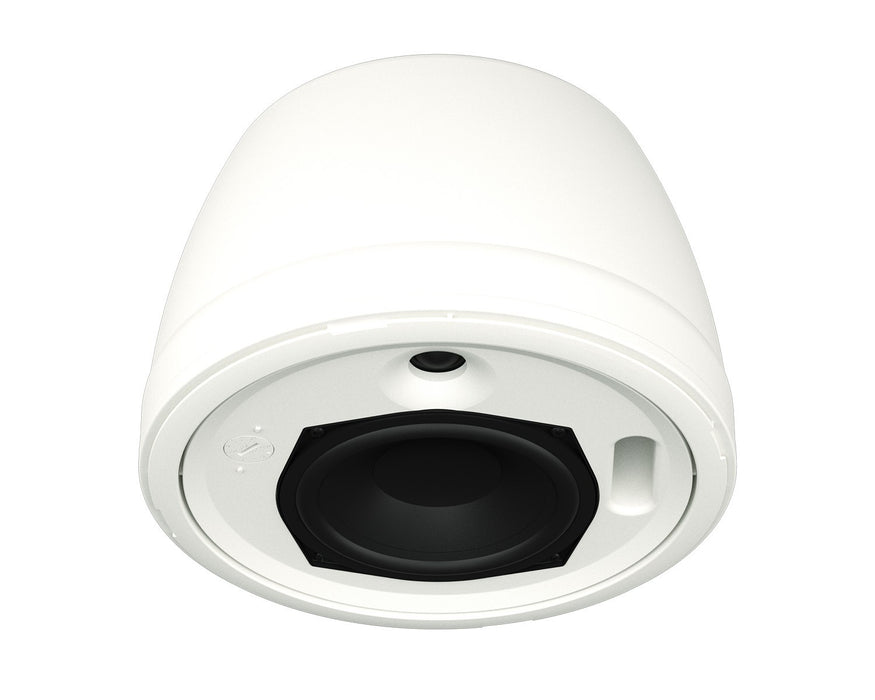

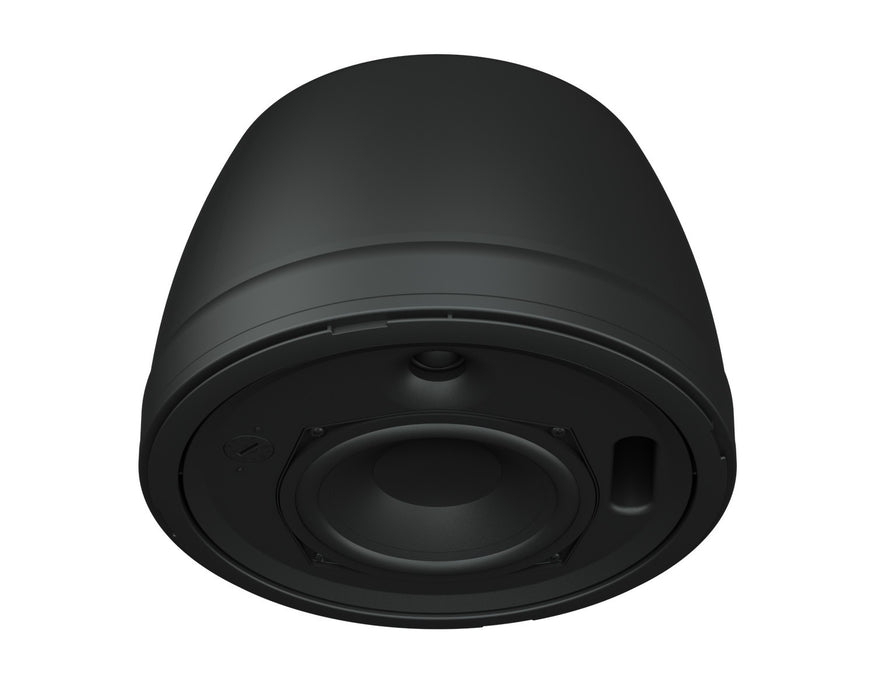

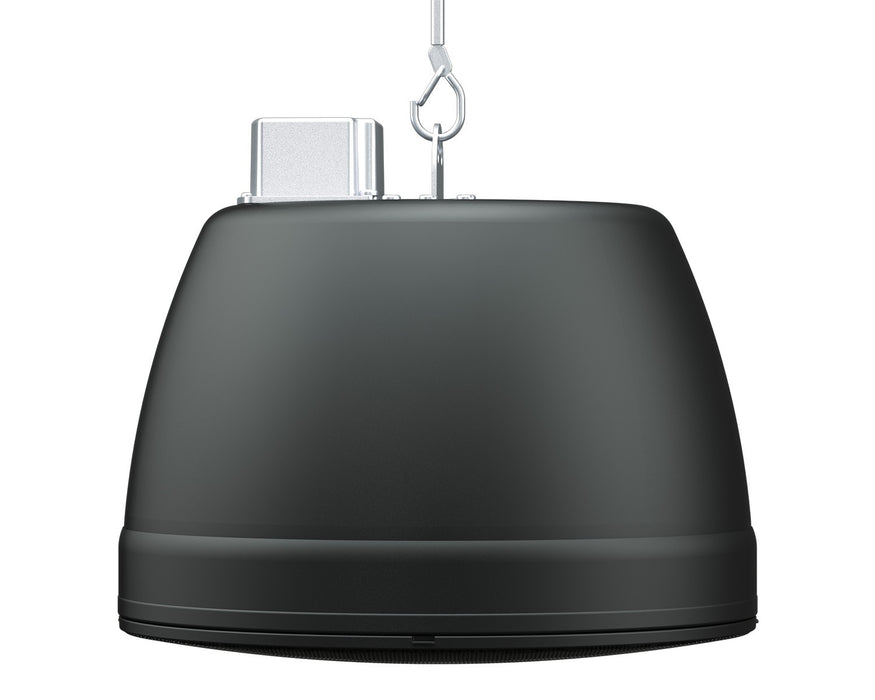

Comprising a 5.25” (100mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACP-55T produces 109dB peak output at 1 metre and delivers superb sound quality for both music and speech reproduction. Its stylish pendant enclosure is equipped with a single-point mounting system plus provision for attaching a safety cable.

The consistent and wide 150° conical coverage of the ACP-55T reduces the number of speakers required for even coverage — leading to a reduction in installation cost.

It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch at the top of the pendant enclosure. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high- frequency sections are individually protected against overload by auto-resetting thermal fuses.

Martin Audio Adorn ACP55T Key Features

  • High performance two-way pendant speaker
  • 5.25” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
  • Wide 150° conical coverage pattern reduces speaker count required for even coverage
  • 70V/100V multi-tap line transformer or 16-ohm low-impedance operation
  • Low and high-frequency overload protection

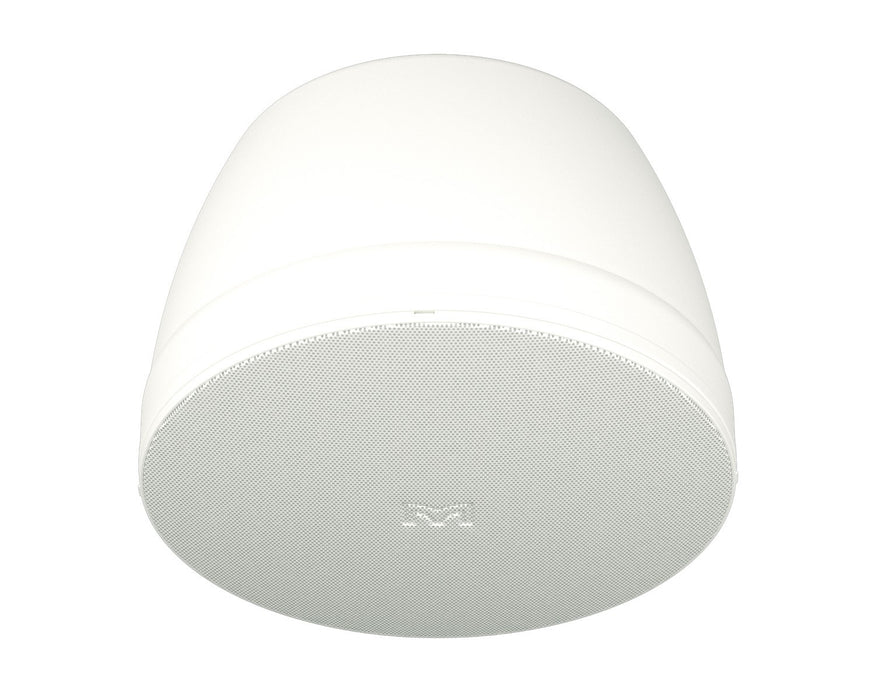

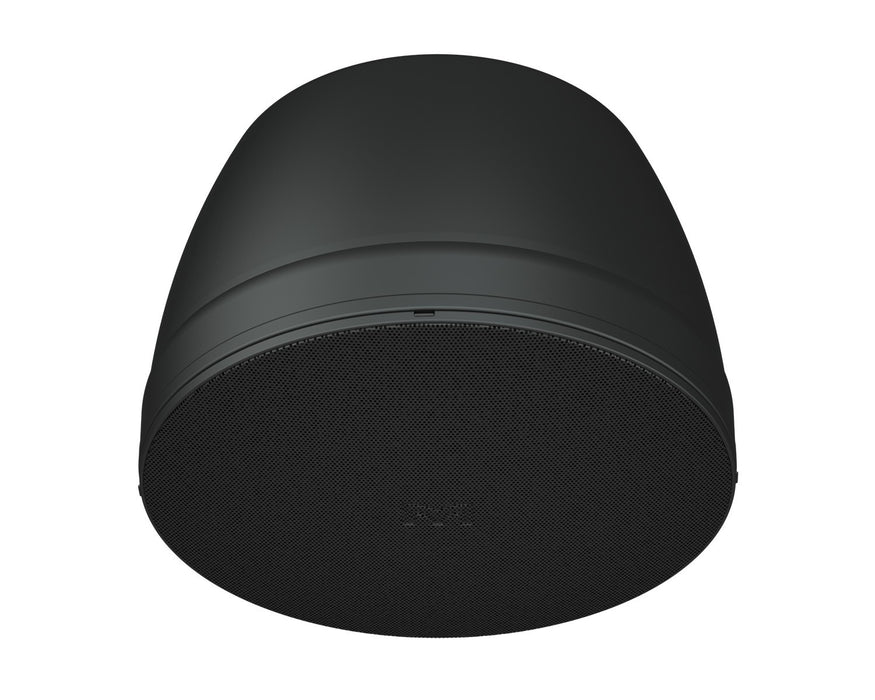

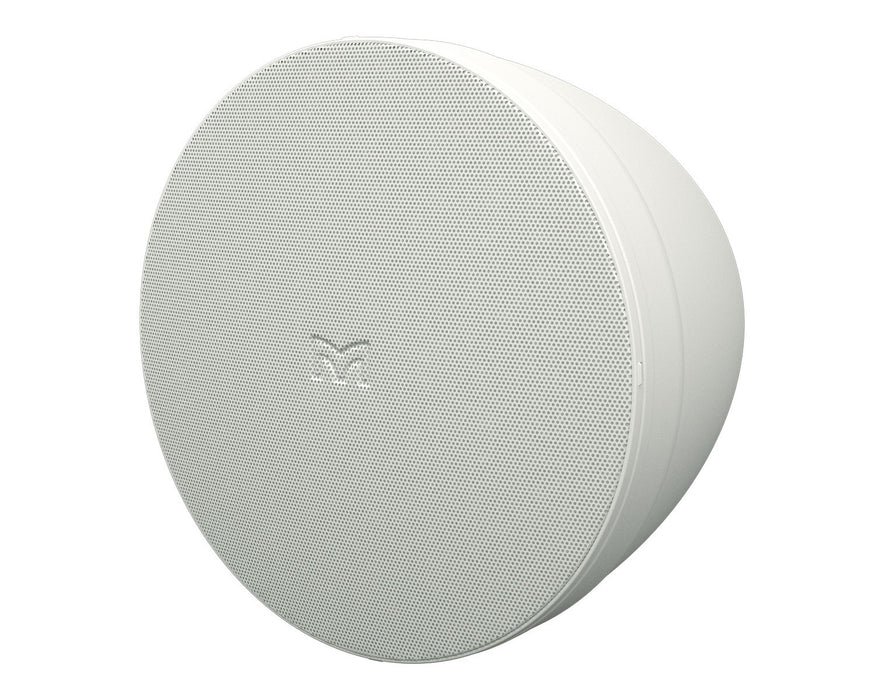

  • Quick release, bezel-less grille
  • UL94V-0 rated baffle and enclosure
  • 5-year warranty
  • Black

Applications

  • Retail outlets
  • Cafes, bars and restaurants
  • Museums and Houses of Worship
  • Hotels, casinos and concourses
  • Exhibition spaces and convention centres
  • Transportation facilities

View the Martin Audio range of products HERE

    SPECS & DOWNLOADS

    Download the Product Data HERE >

    Martin Audio Adorn ACP55T Specifications

    • Type: Passive two-way pendant speaker, ported bass reflex
    • Frequency response: 98Hz-20kHz ± 3dB -10dB @ 56Hz
    • Drivers: LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
    • Rated power: 50W AES, 200W peak
    • Sensitivity: 86dB / 1W(4V) / 1m (full space)
    • Maximum spl: 109db peak
    • Transformer Taps: 100V: 30w / 15w / 7.5w | 70V: 30w / 15w / 7.5w / 3.75w
    • Nominal Impedance: 16 Ohms
    • Dispersion (-6db): 150° conical up to 7kHz
    • Crossover: 3khz passive (lf and hf auto-resetting fuses)
    • Recommended high-pass filter: 60hz 24db/oct
    • Enclosure: UL 94V-0 rated ABS baffle and enclosure
    • Finish: Black or White
    • Grille: Perforated steel, powder-coated, bayonet fitting
    • Connectors: Push terminals
    • Fittings: Wall bracket included
    • Dimensions: 246mm x 238mm
    • Weight: 3.46kg (7.62lbs)
    }
