Large Warehouse PA Audio System - Powerful 1200W Suspended high-quality Music Speakers

£1,649.00 (inc. VAT)
SKU DPA1200-KIT-1
Amount of Speakers
Add Radio to this kit
Add Paging Microphone

A powerful 1200-watt audio system which has been optimised for background music and/or public address applications in large warehouses & factories.

Our large warehouse PA system comes with suspended pendant speakers that feature a 6.5-inch Polypropylene Cone and excellent frequency response (60Hz-22kHz) making them the ideal solution for high-quality music playback, unlike traditional PA speakers that are just designed for voice reproduction.

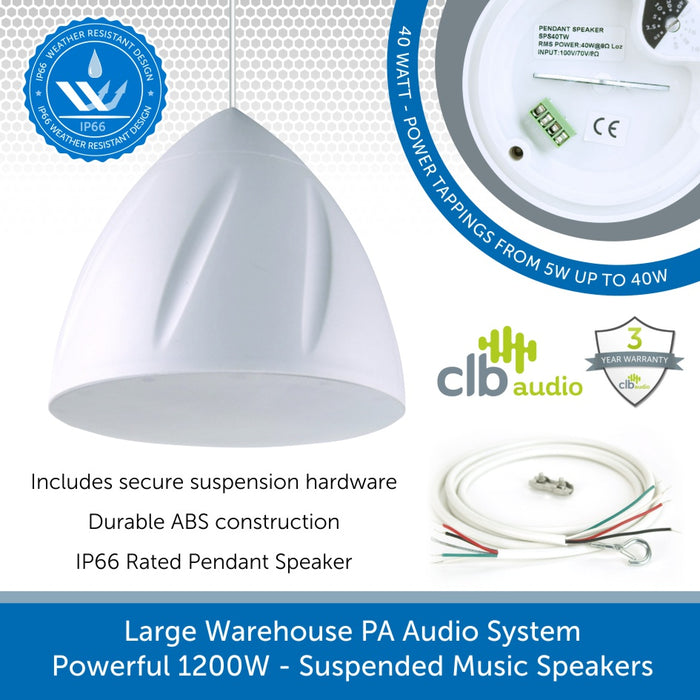

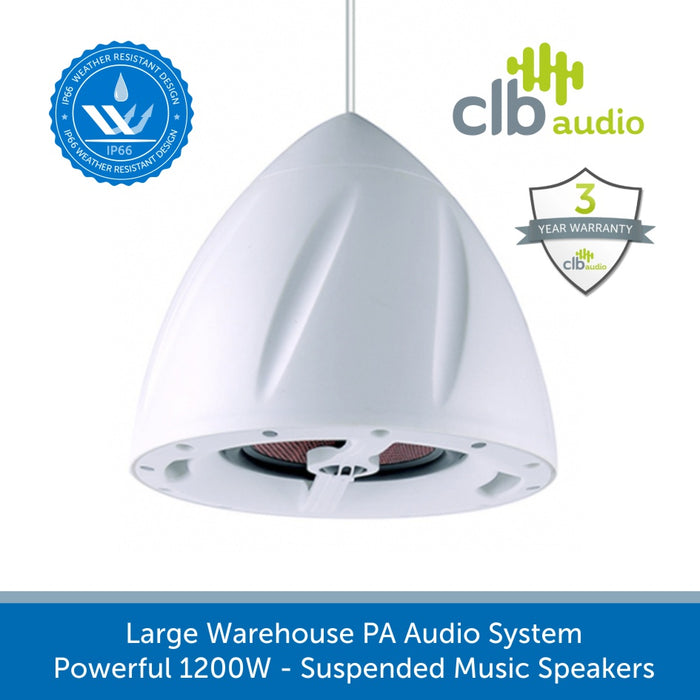

The music pendant speakers hang down from the ceiling and provide a wide area of sound dispersion at high volumes. They are supplied with suspension hardware to securely fix them into place.

The speakers have multiple 100V Line power tappings (5, 10, 20, and 40W) so you can dictate the output level of each speaker. This is ideal if there are multiple areas with different levels of background noise.

For example, in an area that has a lot of machinery, you could set the speakers to 40-watts, to output over the top of the equipment. Speakers in naturally quieter areas such as packing stations can then be set to a lower output level such as 10-watts to create a comfortable listening experience.

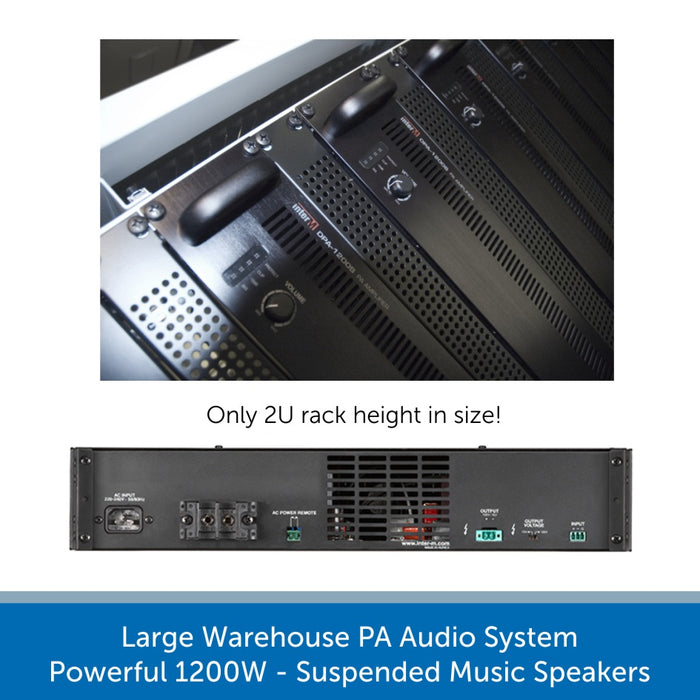

Powered by the Inter-M DPA1200S 1200-watt Class D Power Amplifier that has been designed to power large scale demanding PA applications 24/7.

Class-D amplification - extremely energy-efficient/lower in running costs/operates at much lower temperatures in comparison to traditional power amps.

Fully controlled by the IMG Stageline MMX-602 Audio Mixer.

Multiple audio source inputs for connecting media players such as DAB/FM radios, laptop's or PC's, smartphones & more.

You can also connect a paging microphone to MIC 1 which has priority over all other input sources.

What's Included:

  • 1 x Inter-M DPA1200S 1200W 100V Class D Power Amplifier
  • 1 x IMG Stageline MMX-602 6-Channel Mic/Line Audio Mixer
  • 8, 16 or 24 x CLB Audio SPS40TW Suspended Pendant Music Speakers
  • 200m AudioKraft Apollo Series Premium Speaker Cable

Please note, all of our systems are fully customisable. If you require us to tailor a system to suit your specific requirements then please do not hesitate to contact us on 02476 369890 or email us at info@audiovolt.co.uk

SPECIFICATION

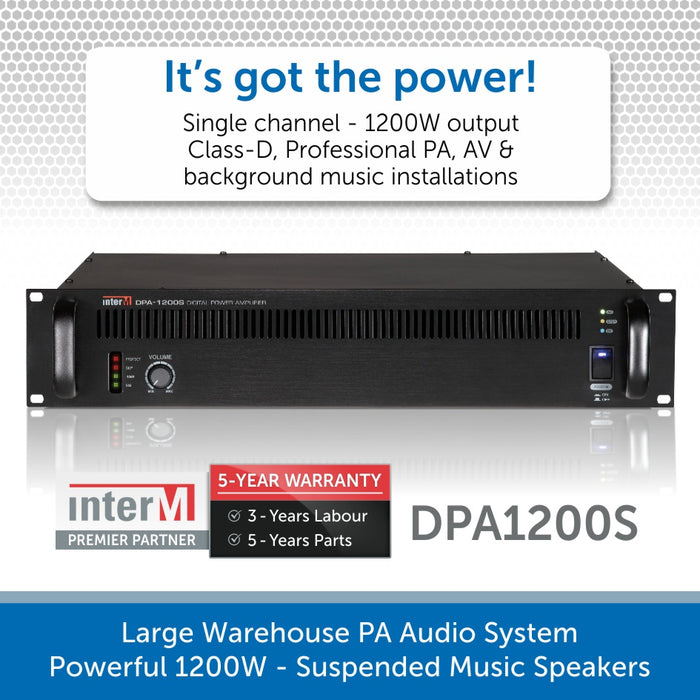

Inter-M DPA1200S 1200W Power Amplifier Specifications

  • Rated Output Power: 1200W @ 100v/70v line
  • Peak Power: 1260W
  • Input Sensitivity: 1v/10kΩ balanced
  • THD Max Output Power: Less than 0.1%
  • THD Rated Power: Less than 0.03%
  • S/N: More than 103dB
  • Frequency Response: 50Hz ~ 20KHz
  • Operating Temperature: -10°C - +40°C
  • Operating Power: 220~240VAC 50/60Hz, DC 24V
  • Power Consumption: 250W
  • Dimensions: 482(W) x 88(H) x 450(D) mm
  • Weight (Net): 11.00kg
  • Weight (Gross): 12.00kg

IMG Stageline MMX-602/SW Specifications

  • No. of channels: 6
  • No. of inputs: 12
  • Mic input: 1 mV/6.6 k?, 6 x 3-pole XLR, bal.
  • Line input: 100 mV/10 k?, 6 x RCA L/R
  • Master output: 1 V/600 ?, 1 x RCA L/R, 1 x 3-pole XLR L/R, bal.
  • Record output: 310 mV/600 ?, 1 x RCA L/R
  • Headphones: > 8 ?, 1 x 6.3 mm jack
  • Frequency range: 20-20,000 Hz
  • THD: 0.1%
  • S/N ratio: 62 dB, unweighted
  • Equalizer bass: ±12 dB/50 Hz
  • Equalizer midrange: ±12 dB/1 kHz
  • Equalizer treble: ±12 dB/10 kHz
  • Talkover: -12 dB, manual
  • Power supply: ~ 230 V/50 Hz/12 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 12 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482 mm
  • Height: 47 mm
  • Depth: 208 mm
  • Rack spaces, RS: 1
  • Weight: 2.8 kg

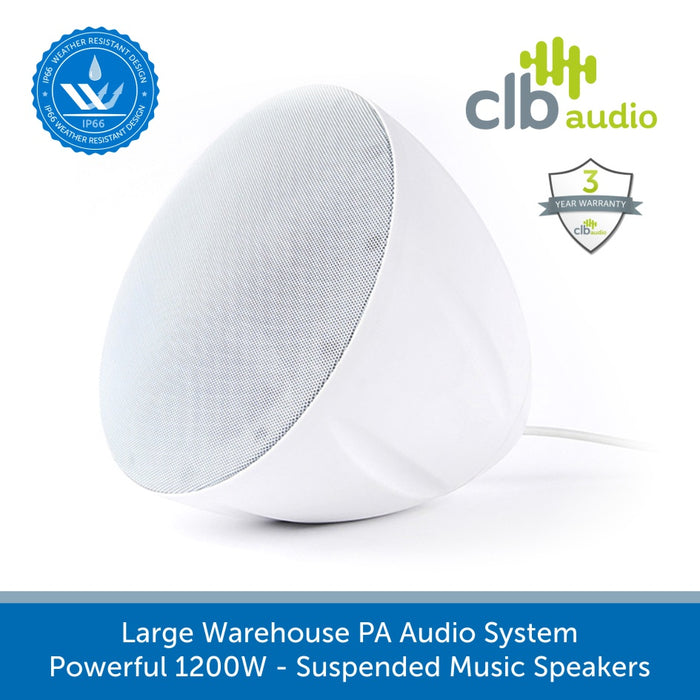

CLB Audio SPS40TW Specifications

    • Frequency Range:     60Hz ~ 22kHz
    • Transformer Options:     8Ω and 5, 10, 20, and 40W @100v Line
    • Speaker Driver Diameter:     6.5inch Kevlar cone
    • Sensitivity (1W/1m):     88dB
    • Colour:     White
    • Material:     ABS
    • Dimensions:     252 Ø x 240(D) mm
    • Weight (Net):     2.58kg
    • Weight (Gross): 3.03kg
    • IP Rating: 66

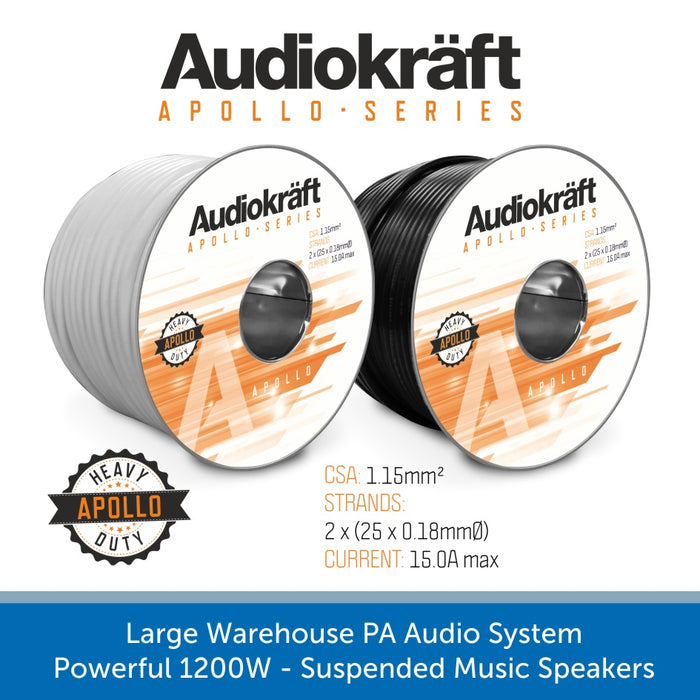

    AudioKraft Apollo Series Cable

    • CSA: 2 x 1.15mm²
    • Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
    • Dimensions: 7.8mmØ
    • Current: 15A max.
    • Sheath: Black or White
    • Length: Per metre, 25m, 50m, 100m
