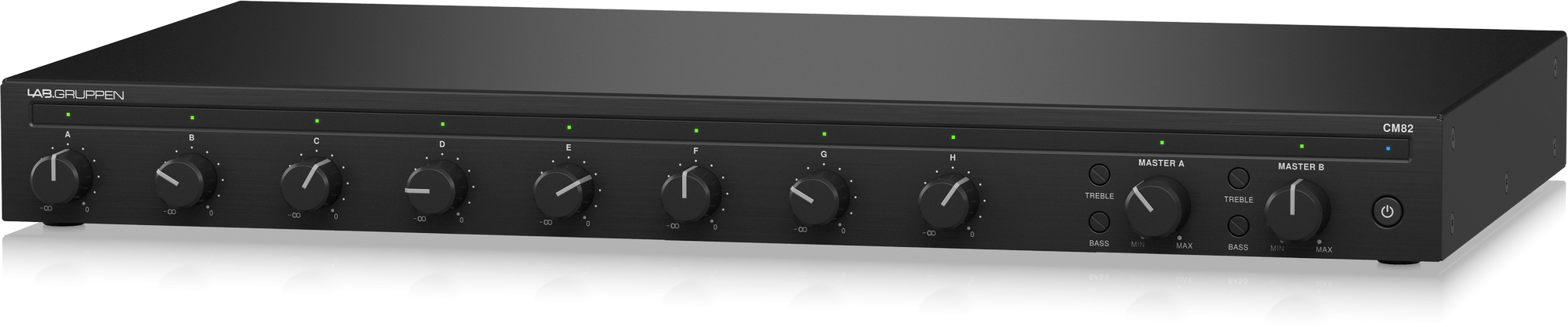

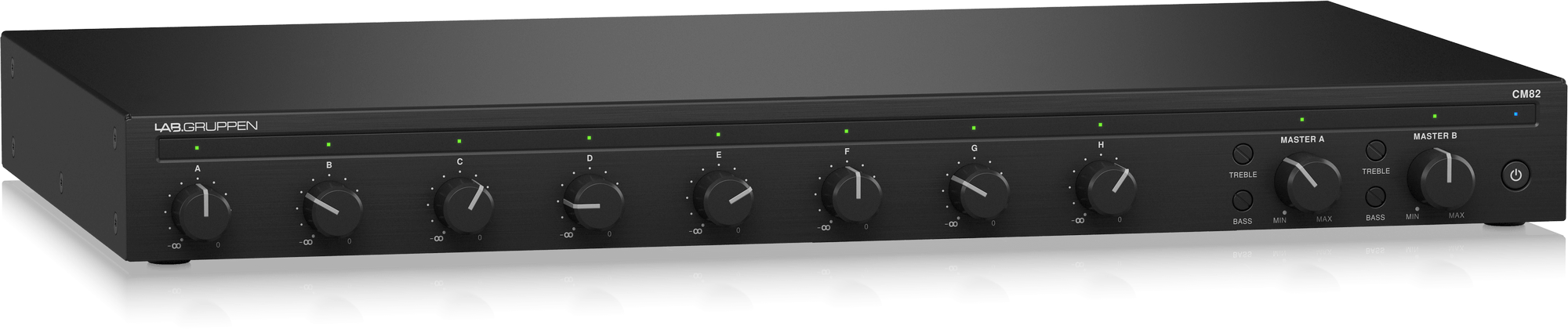

Lab Gruppen CM82 8-In / 2-Out Commercial 19" Rack Mixer
DETAILS
The Lab Gruppen CM82 Commercial Mixer is a comprehensive 8-input, 2-output audio solution designed for commercial and industrial environments.
Whether for bars, restaurants, retail spaces, hotels, corporate offices, or educational institutions, the CM82 delivers exceptional distributed audio for background music or public address systems. With easy installation and intuitive operation, even non-technical personnel can efficiently manage audio in diverse settings.
The CM82 offers independent volume controls and output routing for each of its 8 mic/line inputs, as well as front panel master volume, bass, and treble adjustments for each output. The configurable priority muting feature allows for automatic background music override, ensuring clear and audible announcements.
Lab Gruppen CM82 Key Features:
-
8 Input / 2 Output Mixer: Ideal for commercial and industrial use, the CM82 supports multiple audio sources, with individual volume control and flexible output routing for each input.
-
Dedicated Output Controls: Each output has its own front panel master volume, bass, and treble controls, allowing for tailored sound distribution across different zones.
-
Priority Muting Function: Automatically mutes background music during announcements or paging, making it ideal for environments requiring clear communication.
-
Expandable Audio Setup: The aux output allows for easy expansion by connecting to additional amplifiers, making the CM82 suitable for larger audio systems.
-
Remote Volume Control: Equipped with an RJ-45 connector for GPI remote control, enabling volume adjustments using standard Ethernet cabling for simplified installation.
-

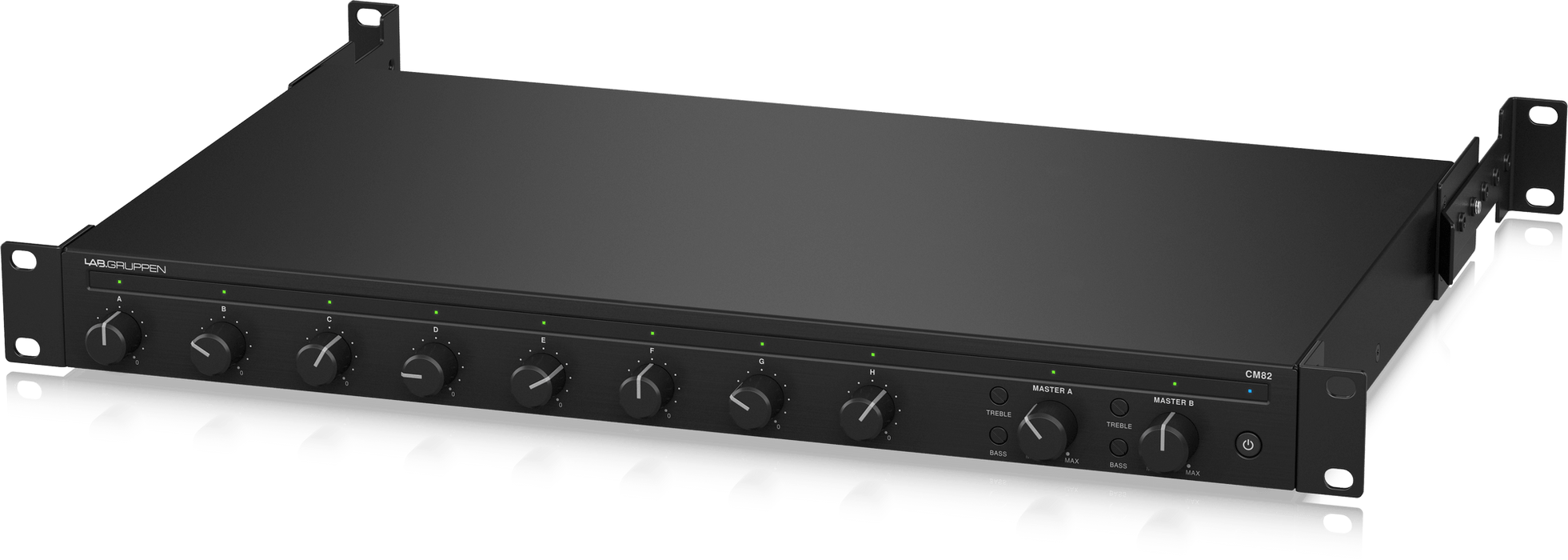

Flexible Mounting Options: With a 1U, 19" rack-mountable enclosure, the CM82 can be easily integrated into existing setups. Optional rack mounting hardware is included for added protection and convenience.
-
Professional Connectivity: Euroblock mic/line input and output connectors ensure reliable and secure connections in commercial environments.
SPECS & DOWNLOADS
Download the PDF User Guide HERE >
Lab Gruppen CM82 Specifications
Mixer
- Mixing capability: 8 inputs - 1 output
Audio Inputs
- Mic/Line with priority/ducking input: 2 x 5-pin Euroblock connector (channel A, E)
- Mic/Line with summed RCA:
- 6 x 3-pin Euroblock connector
- 6 x stereo RCA (channel B, C, D)
- Impedance:
- Balanced mic/line: 20 kΩ
- Unbalanced line and RCA: 10 kΩ
- Maximum input level: 4.88 V (+16 dBu)
- Microphone phantom power: 48 V
Audio Outputs
- Output: 2 x 3-pin Euroblock connector
- Gain range: -(infinity sign - +10dB
- Output max level: 9.6 V (+22 dBu)
Controls

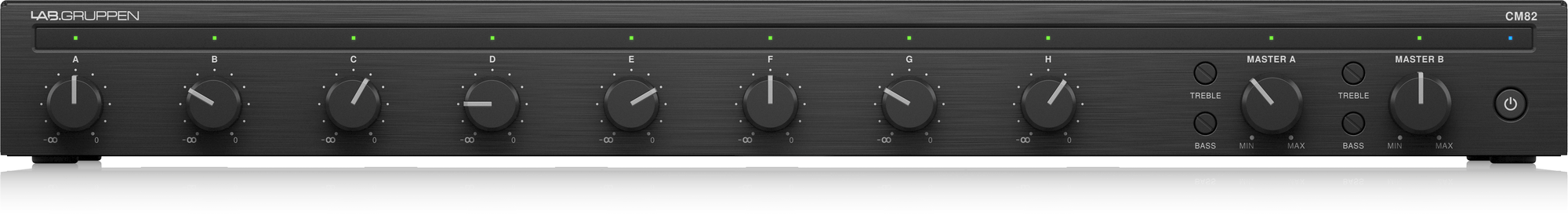

- Front: Power standby button, input and output gain control, tone controls - bass and treble

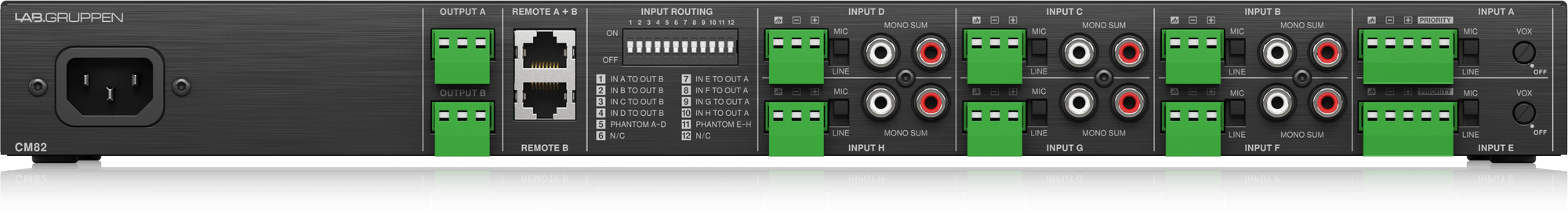

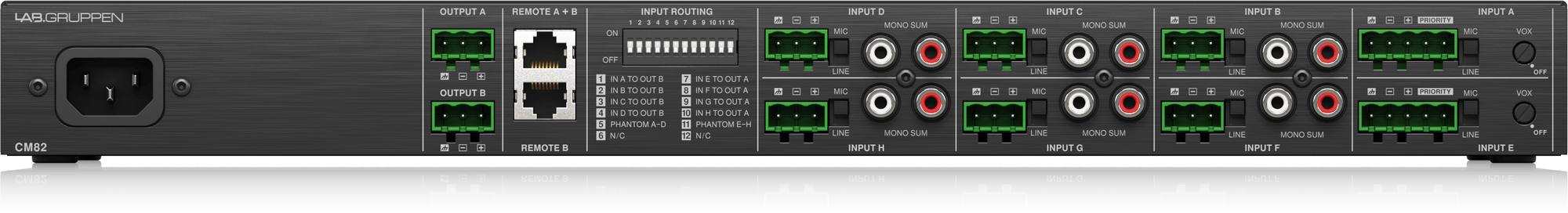

- Rear: Mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only)
Tone Controls
- Bass: ±10 dB @ 100 Hz
- Treble: ±10 dB @ 10 kHz
Indicators
- Power: On (blue), force standby (red), standby (yellow)
- Inputs:
- Signal (green LED): >12.3 mV (-36 dBu)
- Clip (red LED): 4.88 V (+16 dBu)
- Master:
- Signal (green LED: >-50 dBu
- Limit (red LED): 3 V (+12 dBu)
System
- Remote connector: 2 x RJ45 Ethernet connector
Performance
- Distortion: <0.05%
- Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
- Crosstalk (2 channel models): >70 dB
- Signal-to-noise: >97 dBA
Power Supply, Voltage (Fuse)
- Power Supply, Voltage (Fuse) Main voltage: Universal 100-240 V~, 50/60 Hz
- Fuse: T 3.15 A L 250 V
- Power consumption: 20 W
- Mains connector: Standard IEC connector
Physical and Dimensions
- Dimensions (H x W x D): 44 x 437 x 248 mm (1.7 x 17.2 x 9.8")
- Weight: 2.4 kg (5.3 lbs)
- Finish: Brushed black anodized aluminium chassis with black painted steel bottom
- Approvals: CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
