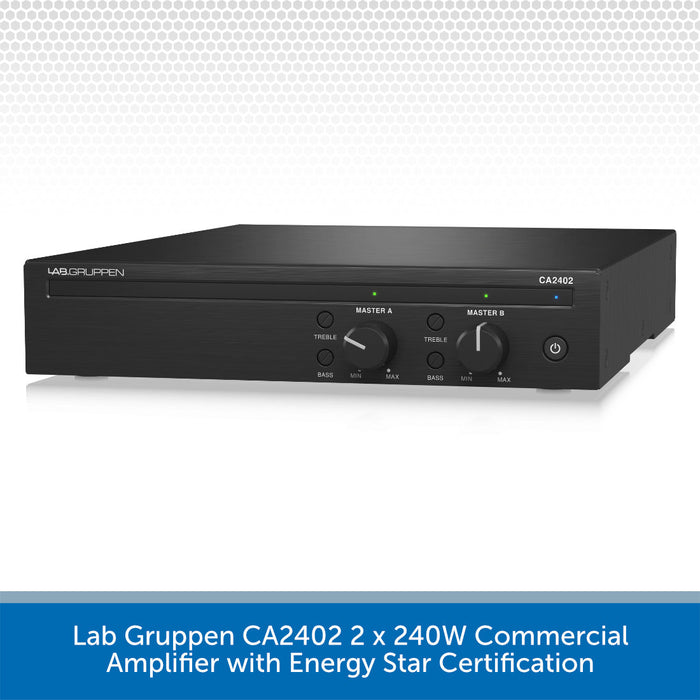

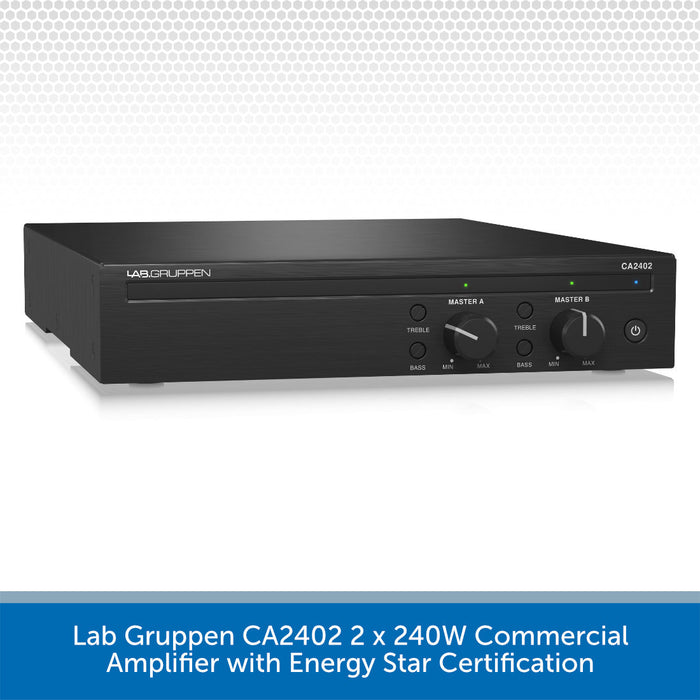

Lab Gruppen CA2402 2 x 240W Commercial Amplifier with Energy Star Certification

Name: Lab Gruppen CA2402 2 x 240W Commercial Amplifier with Energy Star Certification
Brand: Lab Gruppen
SKU: CA2402
Price: 459.0 GBP
Availability: OutOfStock
Rating: 5.0 (1 reviews)

by Lab Gruppen

Sold out

£459.00 (inc. VAT) - £459.00 (inc. VAT)

£459.00 (inc. VAT)

£459.00 (inc. VAT) - £459.00 (inc. VAT)

£459.00 (inc. VAT)

SKU CA2402

DETAILS

The Lab Gruppen CA2402 is a high-power commercial amplifier designed to deliver exceptional audio performance with energy efficiency in a wide range of professional environments.

With dual channels providing 240 watts each, the CA2402 is perfect for venues requiring powerful and flexible audio solutions, such as large retail spaces, conference centres, hotels, and entertainment venues.

The Lab Gruppen CA2402 2 x 240W Commercial Amplifier combines high-quality audio performance, energy efficiency, and user-friendly operation in a robust package.

With dual-zone capability and extensive remote control options, the CA2402 offers exceptional versatility and ease of integration for a variety of commercial applications.

Lab Gruppen CA2402 Key Features:

Dual 240W Output Channels: The CA2402 offers two powerful 240-watt channels, ideal for delivering clear, robust sound across different zones. This makes it perfect for settings requiring separate audio configurations in distinct areas.

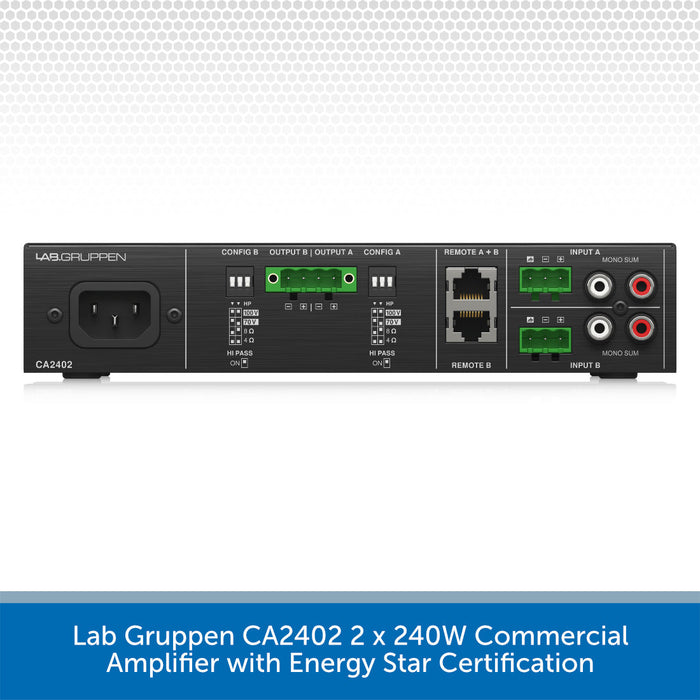

Flexible Output Options: Supports both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations. The rear panel includes intuitive dipswitches for easy configuration of output settings and gain adjustments. An individual control engages the built-in high-pass filter, ensuring sound integrity and preventing saturation in transformer-enabled loudspeakers.
Automatic Power On/Off: The CA2402 features a smart power management system that automatically powers the amplifier on or off based on input signal presence. If no signal is detected for 20 minutes, the system enters sleep mode to conserve energy. The Auto Ramp circuit quickly powers the system back on when a signal is detected, and the front panel power button allows for manual standby and activation.
Sublimely Simple Controls: Intuitive front panel controls include a power button and master volume knob for easy access, enabling quick adjustments. Independent A/B volume, bass, and treble controls are available for each zone, with adjustments requiring a tool to ensure consistent settings.
Easy to Connect: The CA2402 offers a standard 3-pin Euroblock input socket for balanced sources like mixers and audio processors. RCA connections are available for unbalanced stereo sources (summed to mono), such as players and computers. Ensure only one input source is used at a time. Loudspeaker output is provided through standard 2-pin Euroblock sockets for secure and reliable connections.
Expandable Remote Control: Equipped with two RJ45 receptacles on the rear panel, the CA2402 allows for extensive remote control options, including the CRC-V Series wall controllers and the LAB.LEVEL tabletop controller. Each zone can be assigned its own remote controller for local volume control via affordable Ethernet cabling.
System Scalability: As part of a family of products designed for scalability, the CA2402 offers dual-zone solutions to accommodate expanding installations. With individual zone volume and remote control capabilities, the CA2402 serves as a versatile building block for a dynamic audio system.
Real-World Energy Savings: Featuring Auto Ramp and direct drive constant power technology, the CA2402 is Energy Star certified, providing significant energy savings and making it a cost-effective choice for any commercial setup.
Robust Build Quality and Warranty: Manufactured in Lab Gruppen's state-of-the-art Music Tribe factory, the CA2402 boasts a low product failure rate thanks to enhanced production workflows and sophisticated quality assurance. This reliability is backed by a generous warranty program, ensuring peace of mind for users.

SPECS & DOWNLOADS

Download the PDF User Guide HERE >

Lab Gruppen CA2402 Specifications

Maximum Output Power

4 Ω per channel: 240 W
8 Ω per channel: 240 W
70 V per channel: 240 W
100 V per channel: 240 W

Number of Output Channels

Number: 2

Minimum Load Impedance

4 Ω mode: 4 Ω
8 Ω mode: 8 Ω
70 V output mode: 20 Ω
100 V output mode: 41 Ω

Controls

Front: Power standby button, gain control, tone controls - bass and treble
Rear: Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter

Tone Controls

Bass: ±10 dB @ 100 Hz
Treble: ±10 dB @ 10 kHz

Indicators

Power: On (blue), force standby (red), sleep (yellow)
Master
- Signal (green LED): >12.3 mV (-36 dBu)
- Limit (red LED): Input clip, output limit
- Fault (red LED): Overheat, DC fault, over current, etc

System

Inputs:
- 2 x 3-pin 5.08 mm Euroblock connector
- 2 x RCA stereo summed
Input impedance: 10 kΩ unbalanced and RCA, 20 kΩ balanced
Input sensitive: Balanced: 1.23 V (+4 dBu)
RCA: 0.62 V (-2 dBu) each for mono sum RCA
Maximum input level: 9.75 V (+22 dBu)
Outputs: 1 x 4-pin 5.08 mm Euroblock connector
Output circuit type: Class D
Remote connector: 2 x RJ45 connector

Performance

Distortion, 1/8 rated power: <0.05%
Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk (2 channel models): >85 dB
Signal-to-noise: >97 dBA
High-pass filter: 80 Hz HPF

Circuit Protection

Cooling: Convection-cooled, fanless
Amplifier protection: Thermal protection, over current protection, DC protection, high frequency protection
Load protection: Controlled start and shutdown behaviour, DC-fault protection

Power Supply, Voltage (Fuse)

Main voltage: 100-240 V~, 50/60 Hz with active power factor correction
Fuse: T 6.3 A L 250 V
Power consumption 1/8th rated power @ 4 Ω: 120 W
Mains connector: Standard IEC connector

Physical and Dimensions

Dimensions (H x W x D): 44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
Weight: 2.6 kg (5.8 lbs)
Finish: Brushed black anodized aluminium chassis with black painted steel bottom
Approvals: CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0

}
