Intusonic INTUPAK VLA42 4-in-1 Input Volume Control
The INTUPAK VLA42 is a compact and easy to use volume control, perfect for storing under counters and bars.
The Intusound INTUPAK VLA42 is a compact desktop controller which offers easy and quick access to your input source and volume.
It features 3x RCA/Phono inputs, and 1x balanced input allowing for a variety of devices such as a phone, tablet, microphone and more to be connected simultaneously.
Source selector buttons on the front allow you to quickly switch between inputs and control the volume - perfect in a pub that may want to swap between music and a microphone on quiz nights for example.
The compact size makes it very easy to store. It can simply be placed on a desk or shelf, rack-mounted or securely fixed under a counter with the included accessories. A full 19" rack mounting kit is also available HERE.
To expand upon the control, there is also a companion wall-mount controller which can be remotely located in another part of the building, which provides all the controls the VLA42 offers.
See SPECIFICATION tab for technical specs

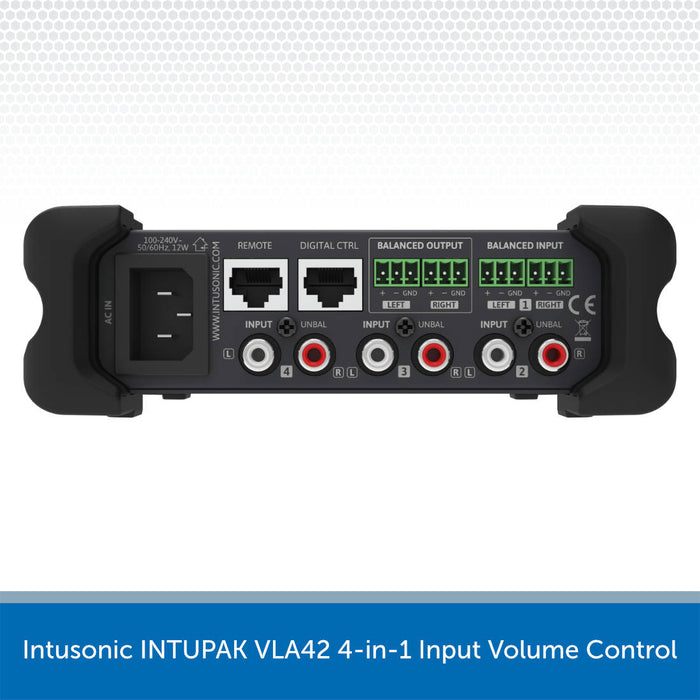

- 4 line level inputs (1×3.5mm-strip/balanced, 3xRCA-unbalanced)
- Input 1 with Ultra-High CMRR input circuitry for long cable runs
- Balanced master output (3.5mm terminal strip)
- Front volume control with 8-LED volume indicator
- Front source selector switches with indicator LEDs
- Indicator LED for remote input selection on wall panel
- IR receiver and 3.5mm TRS IR extension port; IRB44 infrared remote control included
- RJ45 port for VRE11 wall panel & RJ45 port for RS485 control
- High-headroom digital potentiometer circuitry

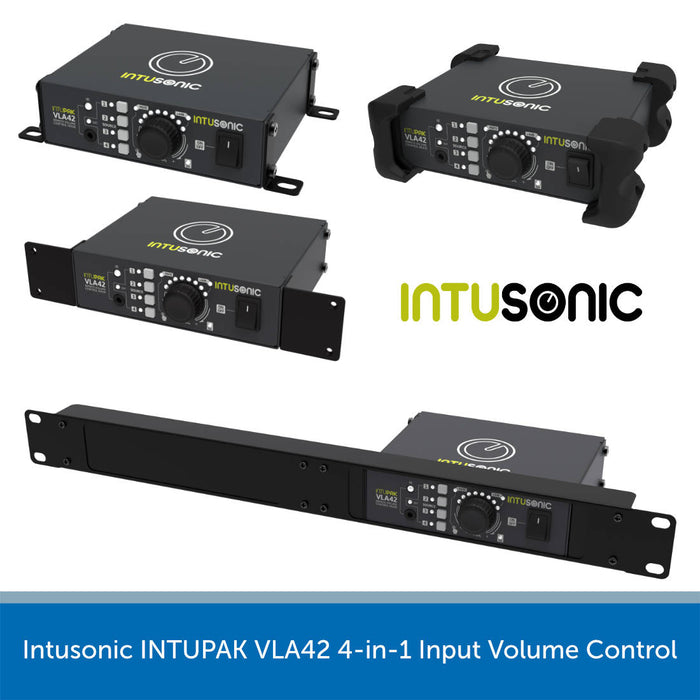

- Full metal case, supplied with TPR bumper corners, surface mounting brackets & front mounting brackets as options
- JUP2 rackmount kit for 19’’ rack mounting available optionally
- Internal switch mode PSU with AC mains selector 115/230V
- CE/ROHS compliant
SPECS & DOWNLOADS
Intusonic INTUPAK VLA42 Volume Control
Frequency response: 20Hz – 20 kHz
S/N ratio: > 82dB
Crosstalk damping: > 72dB
THD&N: < 0.06%
AC IN: 115V/230~ 50/60Hz, max 12W
Dimensions WxDxH: 140x115x42mm (bare)
Dimensions WxDxH: 166x146x53mm (corners)
