Inter-M MA-110 Compact 100W Class-D 100V Line Mixer Amplifier - Ultra Compact Design

by Inter-M
£179.99 (inc. VAT)
SKU MA110

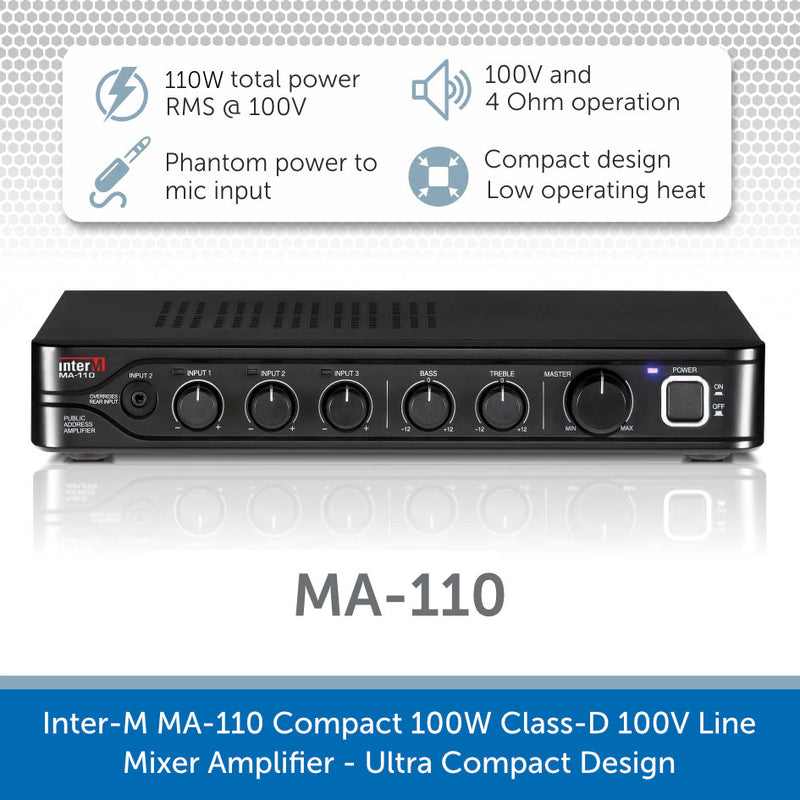

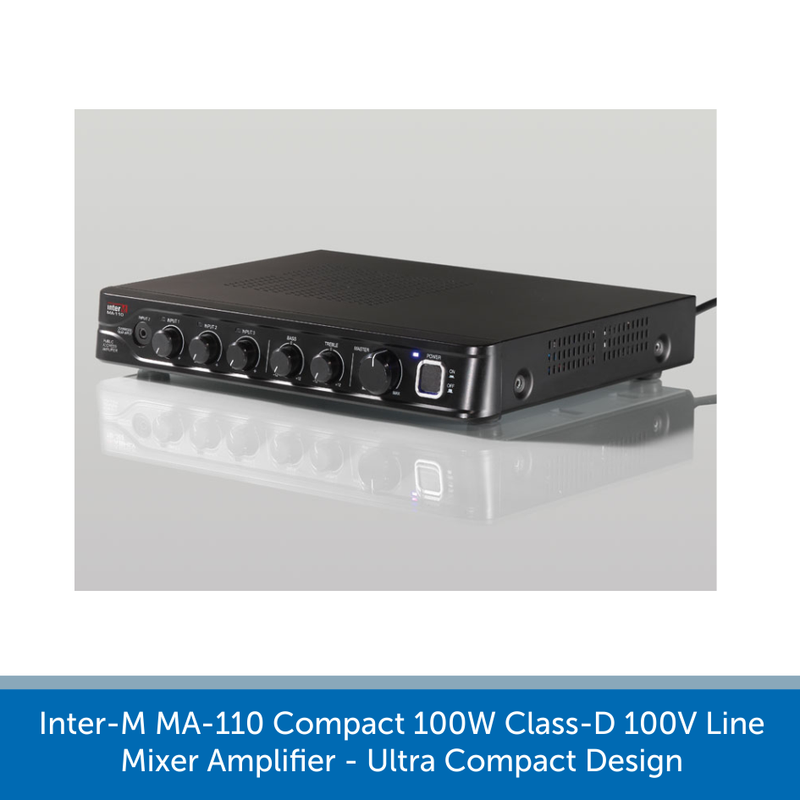

Inter-M MA-110 ultra compact mixer amplifier

The Inter-M MA-110 is an ultra-compact 100V Line/Low impedance mixer amplifier perfect for background music systems and PA within commercial environments.

The MA-110 amplifier boasts a unique footprint in the fact that it is just 1U in height, 30cm wide, and weighs just 3.05kg. This makes it ideal for installs where space is a precious commodity. It can also be rack mounted into any cabinet or case using the BKT-MA106 19" rack brackets.

Because of its size, the MA-110 can be mounted on a table, shelf, below a counter, or even in a single cash register slot. The size doesn't compromise on performance though, as the MA-110 can be operated in challenging environments with temperatures as low as -10°C ~ +40°C.

Key Features

  • Ultra Compact Design (1U)

  • Tone Control

  • Lightweight

  • Low Operating Heat

  • Auto-Sleep Function


    Highly Efficient, Class-D Amplification

    Class-D amplification ensures the MA-110 stays energy efficient meaning through very low power consumption. This will save a noticeable amount money in running costs in comparison to a normal 100V Line amplifier.

    They operate at a low temperature meaning no fans are required and protected from over-heating. Class-D components are also much lighter, allowing the unit to stay compact and lightweight.

    Multiple Inputs

    The Inter-M MA-110 features a multitude of inputs allowing just about anything to be streamed through it, from a phone or tablet, to CD/Media Player or PC.

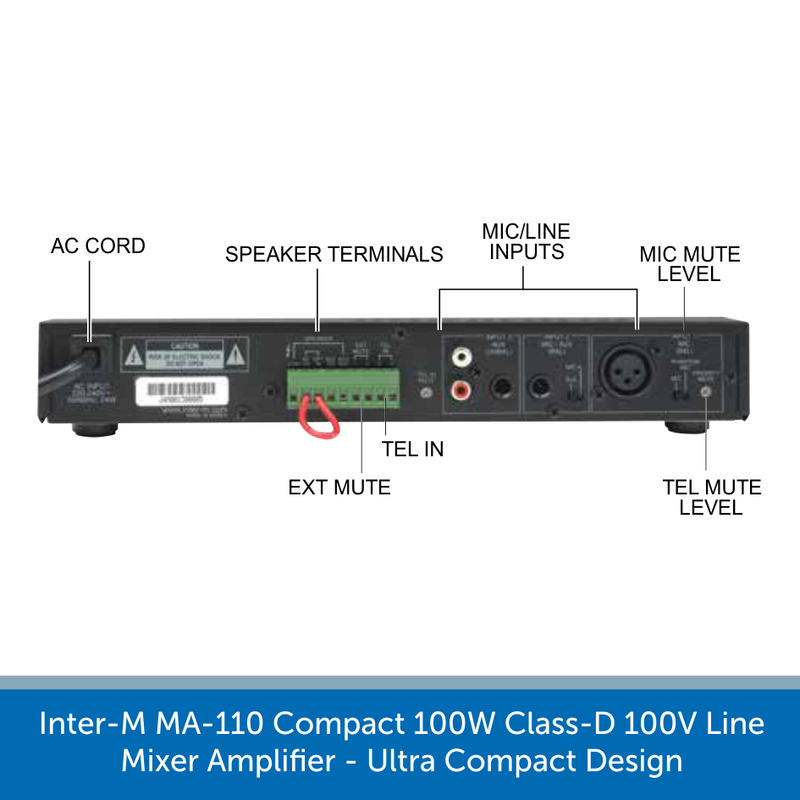

    A microphone input is also situated at the rear of the amplifier so you can make announcements. Mic 1 input has a priority switch meaning when the microphone is turned on the music will mute, and when turned back off the music will revert back to its previous level. Phantom Power is also selectable for input of condenser microphones.

    Provides a telephone input and external mute for a fire-alarm connection.

    Inputs:

    • 1 x balanced Mic (XLR) complete with phantom power
    • 1 x balanced Mic/Aux (¼ inch jack)
    • 1 x unbalanced Aux (¼ inch jack/dual phono)
    • 1x balanced Mic (3.5mm jack) - overrides all input signals.

    If you require any further assistance regarding our 100V Line range just contact us on 02476 369890 and one of our experts will be happy to help. Or use our Request a Call Back page for a FREE no obligation system design & consultation service.

    View the Inter-M range of products HERE

    See SPECIFICATION tab for technical specs

    SPECIFICATION

    Inter-M MA-110 Compact 100W Class-D 100V Line Mixer Amplifier

    Output Power: 100W RMS @ 100V / 4ohm

    Inputs: 1 x balanced Mic (phono/XLR) complete with phantom power, 1 x balanced Mic/Aux (¼ inch jack), 1 x unbalanced Aux (¼ inch jack/dual phono)

    Priority: Telephone, Mic 1

    Frequency Response: 80Hz ~ 15kHz

    Operating Temperature: -10°C ~ +40°C

    Power Requirement: 230v AC, 50Hz

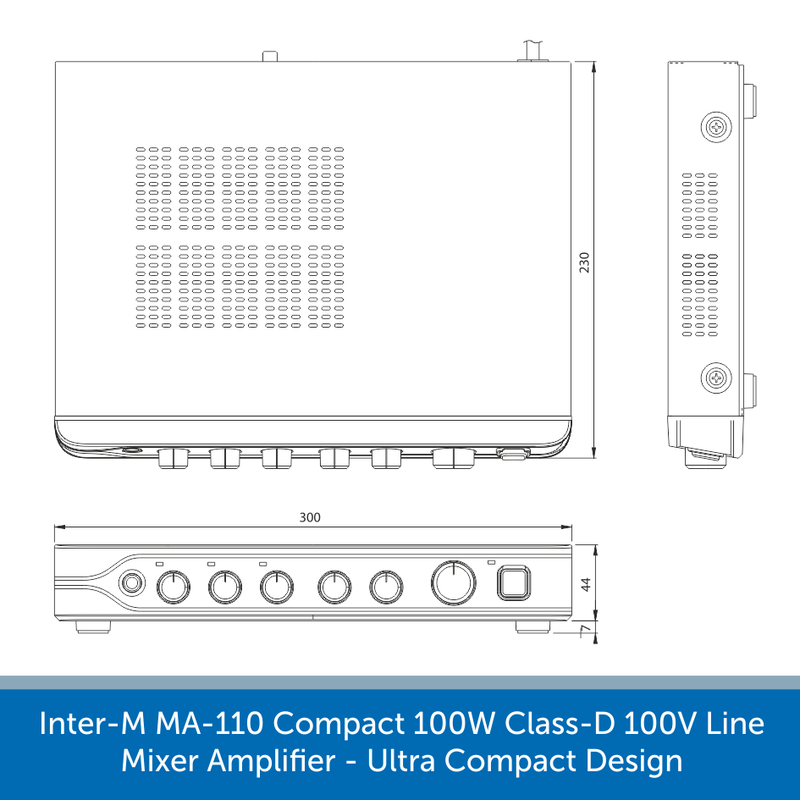

    Dimensions: 300(W) x 44(H) x 230(D) mm

    Weight: 3.05kg



    DOWNLOADS

    Download the MA110 Amplifier User Manual Here

    ABOUT INTER-M

    Inter-M Brand Logo

    Featuring a range of premium commercial audio products, Inter-M has been supplying consumers for well over 30 years. With this amount of experience, you can trust in the build and sound quality of every product.

    On offer is a selection of super-efficient 100V line / low impedance amplifiers, and stylish & modern speakers designed for a range of applications, from small coffee shops to supermarkets, and everything in between.
