Apart & Stageline Foreground Music System for Bars & Gyms | Wall Mount Speakers & Subwoofer
DETAILS
This foreground amplifier, speaker & subwoofer package is perfect for gyms, bars & pubs. 1400W of power offer substantial volume, clarity and depth, and the IP64 rated speakers also mean this system can be used outdoors.
This premium foreground music system is an ideal solution into any bar, gym, wedding venue, or any environment looking to play high-volume upbeat music.

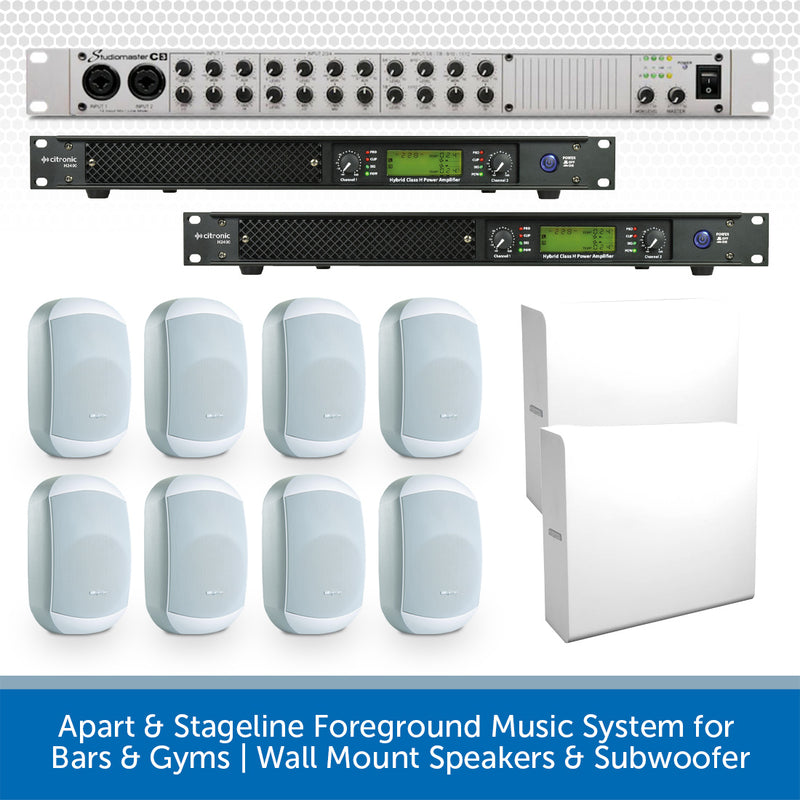

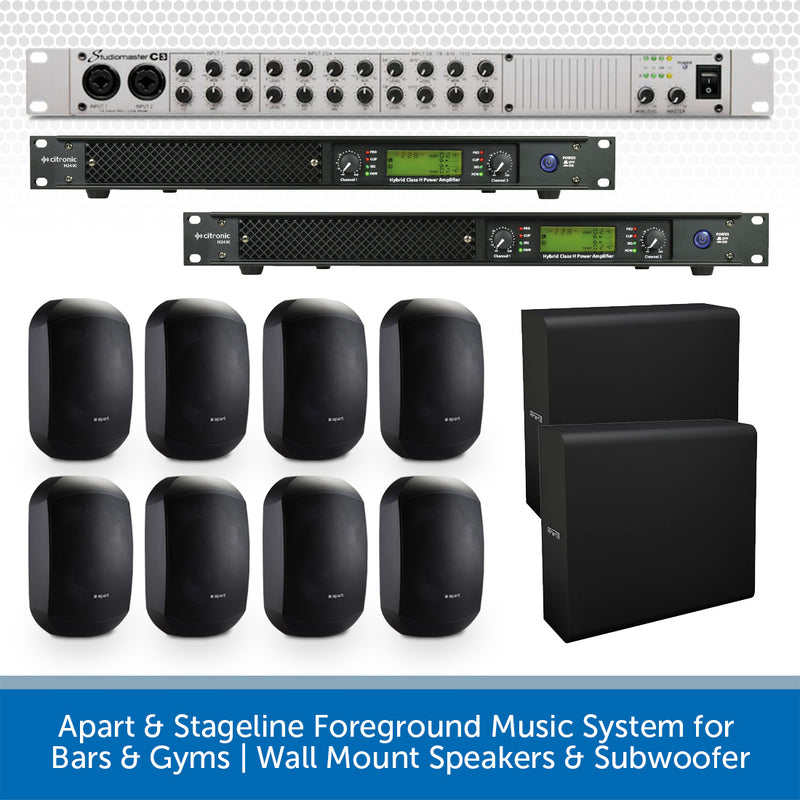

This system includes:
- 2x Citronic H2400 2400W amplifier
- 1x Studiomaster C3 12-Channel 12-channel
- 8x Apart MASK6CT speakers
- 2x Apart Sublime wall-mounted subwoofers
- 100m 100V Line Cable
- 4x Neutrik Speakon adapters
- 4x 0.5m XLR Cables (190.089)

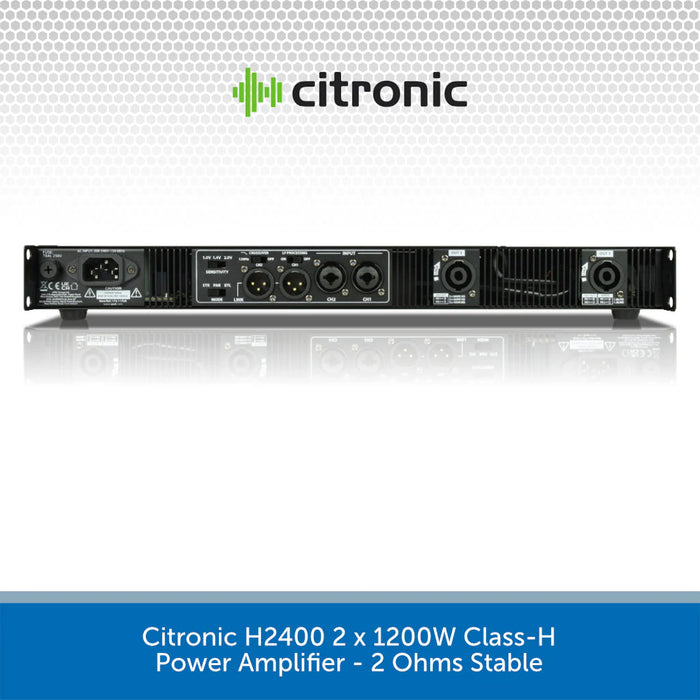

The Citronic H2400 2400W amplifier is the driving force of the system offering 2x 1200W of power, more than enough to power 8x Apart MASK6CT speakers at their full potential. There is also a dedicated subwoofer setting which will filter the audio at a user-defined frequency to avoid frequency crossover, resulting in a clear & deeper sound.
The Apart MASK6CT speakers offer 150W (RMS) of true power output, meaning they can reach high volume while retaining crystal-clear sound quality and depth in the low end - perfect for dance music. While they can be used in this manner, when turned down to a more reasonable volume the MASK6CTs act as great high-quality background speakers.
The Apart MASK6CTs are IP64 rated, meaning these can be installed outdoors and can withstand light rain making them a great choice for a beer garden or outdoor smoking area.
The Apart Sublime ultra-compact wall/floor mount passive subwoofer offers a blend of crystal-clear clarity and excellent depth bringing your environment to life.
The 6.5" dual-coil sub is the thinnest passive subwoofer on the market (only 12cm deep) and it's slick design enables it to fit in with any interior design whether behind a curtain, on the wall, or even under furniture. Speaker and connection terminals are invisible when mounted on the wall using the included mounting brackets.
The Studiomaster C-3 mixer allows for a number of inputs with varying connections. These include 1/4" (6.35mm) Jack, XLR and Phono/RCA, enabling any device such as a phone, laptop, media player & microphone to be connected.

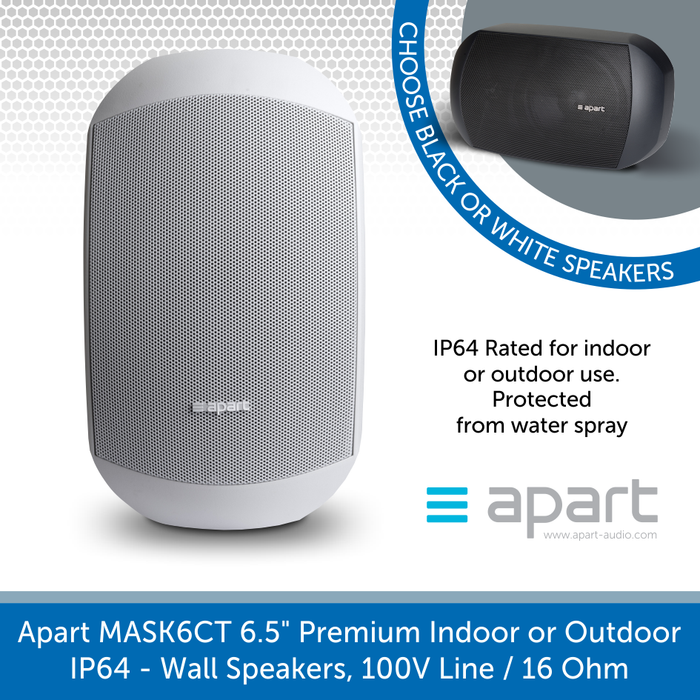

Apart MASK6CT-W & MASK6CT-BL Key Features
-
Perfect for background music up to dance music
-
High-quality and long-lasting performance
-
IP64 Rated for indoor and outdoor use
-

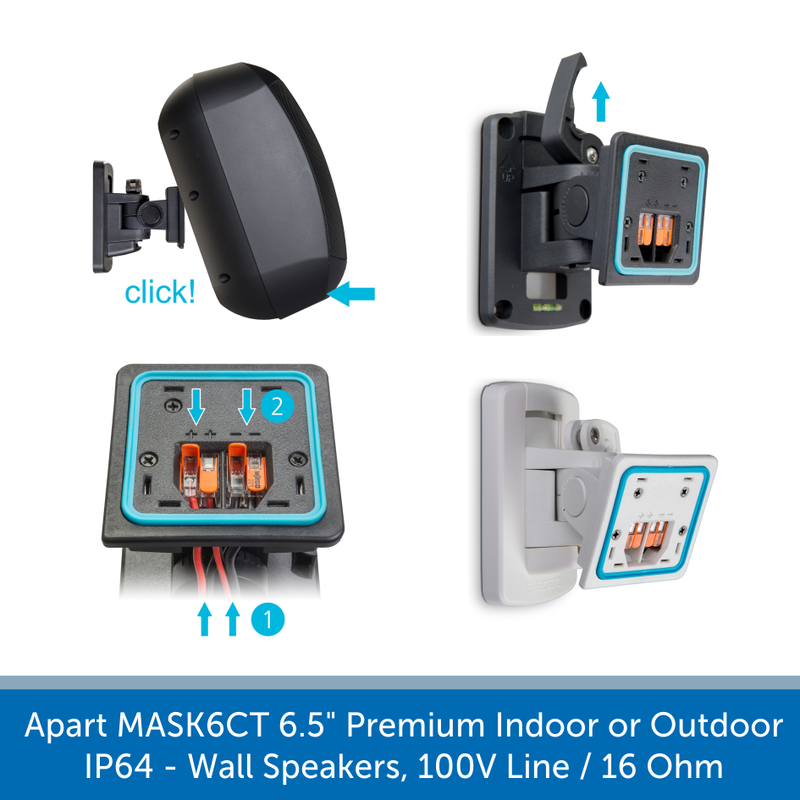

Supplied with ClickMount bracket for a quick and easy install
-
100V Line tappings 60, 30, 15, and 6W / 16 Ohms
-
3-Step overload protection
-
Black or white available
Apart SUBLIME Subwoofer Key Features
-
The thinnest subwoofer on the market
-
Easy integration on the wall, behind curtains or under furniture
-
Wall mount brackets and template included
-
Produces fat and deep bass sound
-
Works with Apart CM, and MASK series
-
2 x 80W @ 8 Ohms
SPECS & DOWNLOADS
H2400 Key Specifications
- Power supply: 200-240Vac, 50Hz (IEC)
- Amplifier : construction: Hybrid Class-H
- Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting.
- Frequency response: 20Hz-20KHz ±0.5dB
- THD +N: 0.2%
- S/N ratio: -95dB
- Damping factor: >700
- Input sensitivity: 1.0V - 1.4V - 2.0V switchable
- Input impedance: 20K? (balanced),10K? (unbalanced)
- Dimensions: 483 x 361 x 44 mm (1U)
- Fuse: T8AL 250V
- Power rms @ 8 Ohms: 2 x 650W
- Power rms @ 4 Ohms: 2 x 900W
- Power rms @ 2 Ohms: 2 x 1200W (40ms burst 1kHz sine)
- Power rms bridge @ 8 Ohms: 1800W
- Power rms bridge @ 4 Ohms: 2400W (40ms burst 1kHz sine)
- Weight: 7.0kg
Apart MASK6CT-BL & MASK6CT-W Specifications
- Loudspeaker system: 2-way
- Woofer size: 6.5inch
- Woofer cone material: Coated paper
- Tweeter size: 1inch
- Mounting system: Clickmount
- 100V Transformer Tappings: 60, 30, 15 and 6 watts
- Impedance (ohms): 16
- Low impedance dynamic power: 200 watts
- SPL 1W/1m: 90dB
- Max SPL 1m: 110dB
- Frequency response: 65-20k/Hz
- Main construction material: ABS plastic
- Grille main material: Aluminium
- IP rating: 64
- Horizontal dispersion angle 1000Hz: 180°
- Vertical dispersion angle 1000Hz: 180°
- Height: 328mm
- Width: 198mm
- Depth: 190mm
- Weight: 3.35g
Apart SUBLIME-W & SUBLIME-BL Subwoofer Specifications
- height: 420 mm
- width: 470 mm
- depth: 120 mm
- loudspeaker system: dual coil
- woofer size: 6.5 inch
- woofer cone material: coated paper
- mounting system: wall bracket
- impedance (ohms): 8
- low impedance dynamic power: 2 x 80 watts
- low impedance RMS power: 2 x 40 watts
- SPL 1W/1m: 85 dB
- max SPL 1m: 107 dB
- frequency response: 50 - 200 Hz
- main construction material: mdf wood
- grille main material: cloth
- IP rating: 20
- closest RAL colour (subject to deviations): RAL9003 (W) / RAL9011 (BL)
- Net weight product (kg): 8,00
IMG Stageline MMX-602/SW Specifications
- No. of channels: 6
- No. of inputs: 12
- Mic input: 1 mV/6.6 k?, 6 x 3-pole XLR, bal.
- Line input: 100 mV/10 k?, 6 x RCA L/R
- Master output: 1 V/600 ?, 1 x RCA L/R, 1 x 3-pole XLR L/R, bal.
- Record output: 310 mV/600 ?, 1 x RCA L/R
- Headphones: > 8 ?, 1 x 6.3 mm jack
- Frequency range: 20-20,000 Hz
- THD: 0.1%
- S/N ratio: 62 dB, unweighted
- Equalizer bass: ±12 dB/50 Hz
- Equalizer midrange: ±12 dB/1 kHz
- Equalizer treble: ±12 dB/10 kHz
- Talkover: -12 dB, manual
- Power supply: ~ 230 V/50 Hz/12 VA
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 12 VA
- Admiss. ambient temp.: 0-40 °C
- Width: 482 mm
- Height: 47 mm
- Depth: 208 mm
- Rack spaces, RS: 1
- Weight: 2.8 kg
Apart MASK6CT-W & MASK6CT-BL PDF File Download
Apart SUBLIME Subwoofer PDF Downloads
IMG Stageline MMX-602/SW - PDF file download
Download Product Data Sheet HERE
