IMG Stageline DIB-100 Passive DI Box - Perfect for the Studio or Stage
IMG Stageline DIB-100 Passive DI Box - Perfect for the Studio or Stage
IMG Stageline DIB-100 Passive DI Box - Perfect for the Studio or Stage
IMG Stageline

IMG Stageline DIB-100 Passive DI Box - Perfect for the Studio or Stage

Regular price £19.99 (inc. VAT) Sale price £35.99 (inc. VAT)

The IMG Stageline DIB-100 is a professional yet affordable Passive DI Box, allowing for line level signals to be transitioned into mic level signals, perfect for amplifiers and mixers.

The DIB-100 is a professional and great performing DI box, and a must have when recording in the studio or for a live performance. It takes a line level signal, such as a guitar or bass and converts it into a mic level signal, allowing it to be connected to a mixer or amplifier.

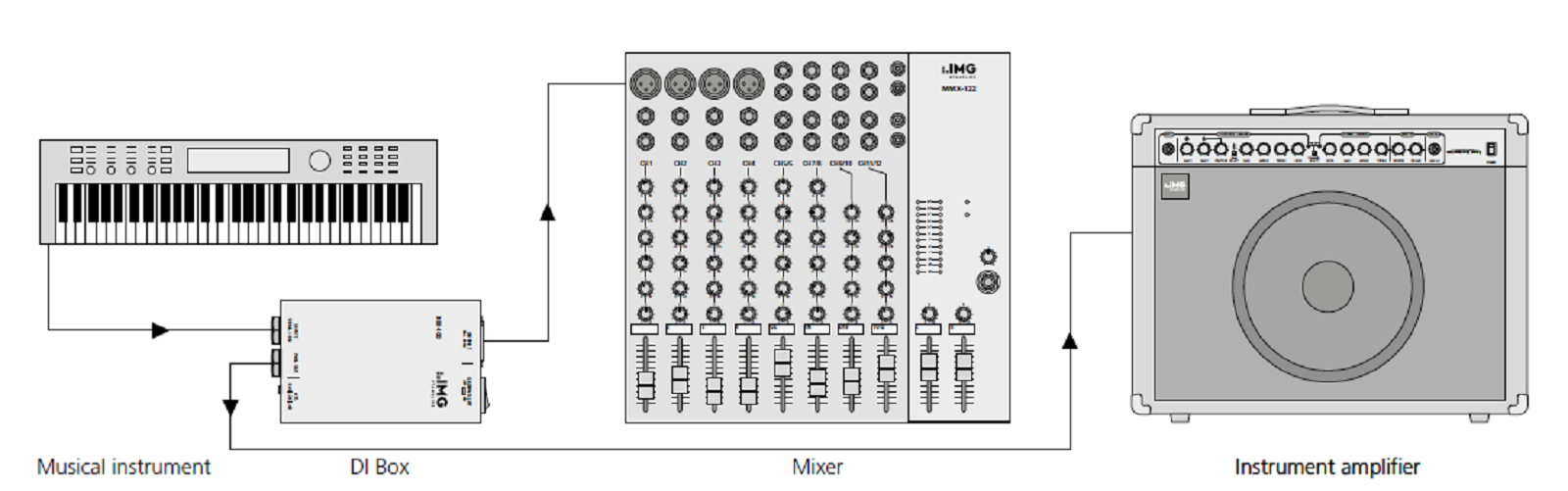

It can also output the original signal via the Par. Out, enabling it to be connected to another piece of equipment (see image 3).



Example Setup:

A bass guitar is connected to the input of the DIB-100.

The XLR output is routed into a mixer to record a raw unaltered signal. This can then be processed with software. The Par. Out simultaneously takes a signal to a bass amplifier, for a more authentic bass tone, which is recorded with a microphone.

The two signals can then be processed together to create the desired sound.

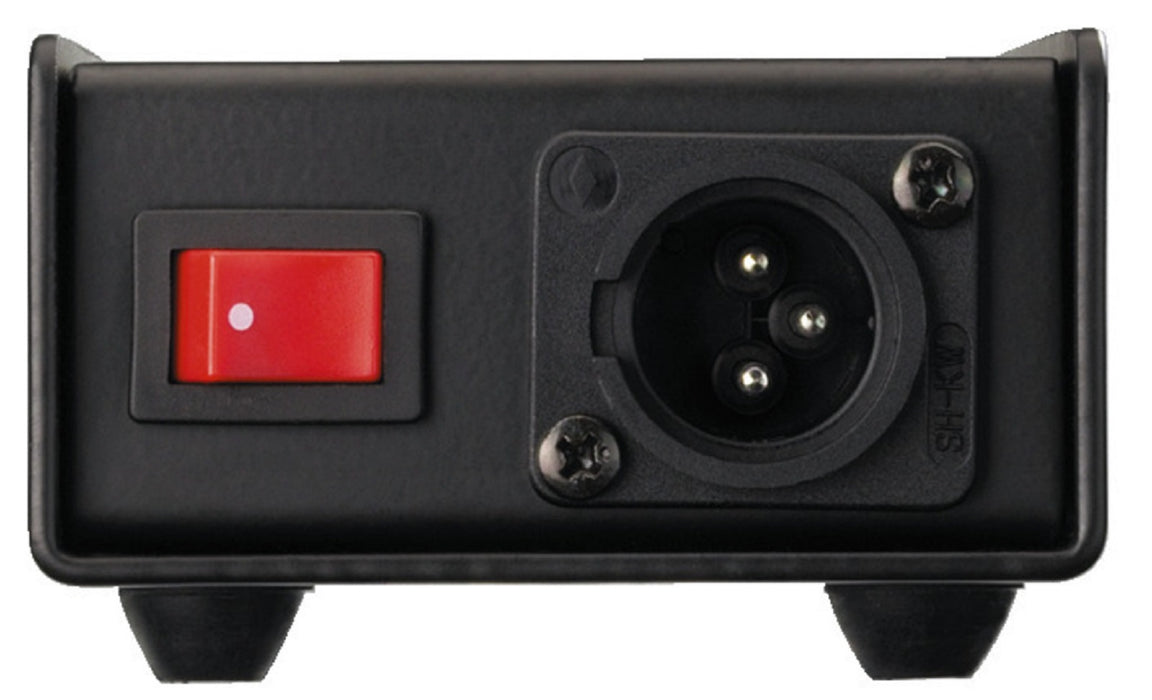

The unit is built for the user in mind. The sturdy metal housing ensures a long life, and the overhanging chassis ensures there are no accidental knocks to the ground lift switch, which disables pin one of the XLR output.

The line input can take just about any signal, as the attenuator can vary from 0/-20/-40 dB.

Key features include:

  • Solid metal body

  • Parallel output

  • Ground lift switch

  • 3-fold attenuation switch (0/-20/-40 dB)

IMG Stageline Brand Logo

All IMG Stageline products carry an industry leading 3 year warranty

If you require any assistance with any of our products then call us on 02476 369890 and one of our specialists will be happy to help. Or you can use our Request a call back form.

See SPECIFICATION tab for technical specs

IMG Stageline DIB-100 Passive DI Box Specifications

Type: DI box
Frequency range: 15-30,000 Hz, ±0 dB
Input impedance: 50 kΩ
Output impedance: 600 Ω (bal.), 50 kΩ (unbal.)
Gain: 0/-20/-40 dB
Transmission ratio: 10:1
Admiss. ambient temp.: 0-40 °C
Dimensions: 74 x 45 x 130 mm
Weight: 560 g
Inputs: 6.3 mm jack, unbal
Outputs: 6.3 mm jack, unbal., par. out, XLR, bal.


          IMG Stageline DIB-100 Passive DI Box - PDF file download

          Download the User Manual HERE

          Download Product Data Sheet HERE

          IMG Stageline Brand Logo

          IMG Stageline - Engineered in Germany, this premium brand offers high-quality audio products for the stage or any live event.

          IMG Stageline is a live-event focused brand by Moncaor, one of the worlds leading designers and manufacturers of background audio systems, and have been providing products to consumers since the 1960's.

          As well as providing a superior sound quality and an industry leading 3-year warranty on their products, being a brand of Monacor also ensures access to the in-house UK based repair workshop, giving you peace of mind.

          Audio Volt is proud to stock IMG Stageline and offers FREE UK Shipping on orders over £50 with in-stock items dispatched within 24 hours.
