HH Electronics M-750D 2 x 750W Power Amplifier, 4/8 Ohms
DETAILS
Introducing the M-750D 2-Channel Power Amplifier by HH Electronics - a professional 2 x 750W Class-H Amplifier designed for demanding high-power PA applications.
The HH M-750D boasts an impressive power output of 750 watts per channel at 4 Ohms ensuring a robust and dynamic audio experience.
Equipped with a comprehensive range of connectivity options, the M-750D seamlessly integrates into any audio setup. Its balanced XLR inputs and Speakon outputs ensure reliable connections with your mixer, speakers, and other audio equipment. Additionally, the amplifier offers bridge mode operation, allowing you to combine two channels for even greater power output.
Crafted with durability in mind, the M-750D is built to withstand the demands of professional use. Its robust construction, sturdy chassis, and reliable cooling system ensure optimal performance even during extended periods of operation.
The M-750D incorporates user-friendly features that simplify your audio setup and operation. With its front-panel gain controls, you can effortlessly adjust the levels to achieve the perfect balance. LED indicators provide visual feedback on power, signal, and clipping, keeping you informed at a glance. The amplifier's compact and rack-mountable design adds convenience and flexibility to your audio system.
HH Electronics M-750D Key Features:
- Powerful Performance: Delivers 750 watts per channel for impactful sound.
- Crystal Clear Sound: Exceptional sound clarity and fidelity with high-quality components.
- Versatile Connectivity: Balanced XLR inputs, Speakon outputs, and bridge mode operation.
- Robust and Reliable: Sturdy chassis and reliable cooling system for durability.
- User-Friendly Controls: Front-panel gain controls and LED indicators for easy operation.
- Trusted Brand: Backed by HH Electronics' reputation for reliability and performance.
SPECS & DOWNLOADS
Download the HH Electronics M-750D PDF Data Sheet HERE >
HH M-750D Specifications
- Amplifier Type: Class H High Performance Professional linear design
- Controls: Volume Controls (per channel), Power switch, Input Sensitivity Switch, Bridge/Routing Mode Switch
- Dimensions: 88 x 482 x 239mm, 3.5 x 19 x 9.4"
- Features: Soft start, comprehensive protection
- Inputs: 2x Balanced XLRs

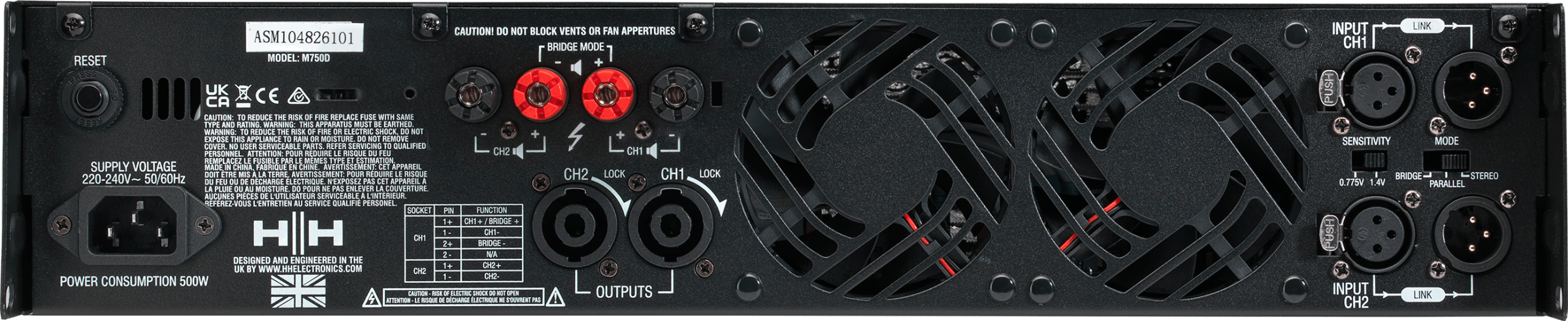

- Outputs: 2x locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced XLR link outs
- Output Power : 4 Ohm Stereo: 2x750W
- Output Power : 8 Ohm Stereo: 2x500W
- Output Power : 8 Ohm Bridge: 1500W
- System Type: 2U Professional Power Amplifier
- Weight: 12.5Kg/pc, 27.6 lbs/pc
- Cooling: Forced air, variable speed fan, air flow front to back
- Damping Factor: >200
- Input Sensitivity: 0.775V/1.4V
- Packed Weight: 14.8Kg/pc, 32.6 lbs/pc
- Protection: Soft start, VHF, RF, short circuit, over load, clip limit, over heat
- S/N: ≥100dB
- Voltage Gain (8Ω): 36dB
- Input Impedance (Bal/Unbal): 20KΩ/10KΩ
- Frequency Response: 20Hz - 20KHz (+0, -1dB)
- Slew Rate: ≥20V/µS
- THD+N: ≤0.5% 20Hz-20kHz
- Power Connector: Removeable IEC Power Cord C14
- Carton Dimensions (Hwd): 160 x 580 x 540mm, 6.3 x 22.8 x 21.3"
