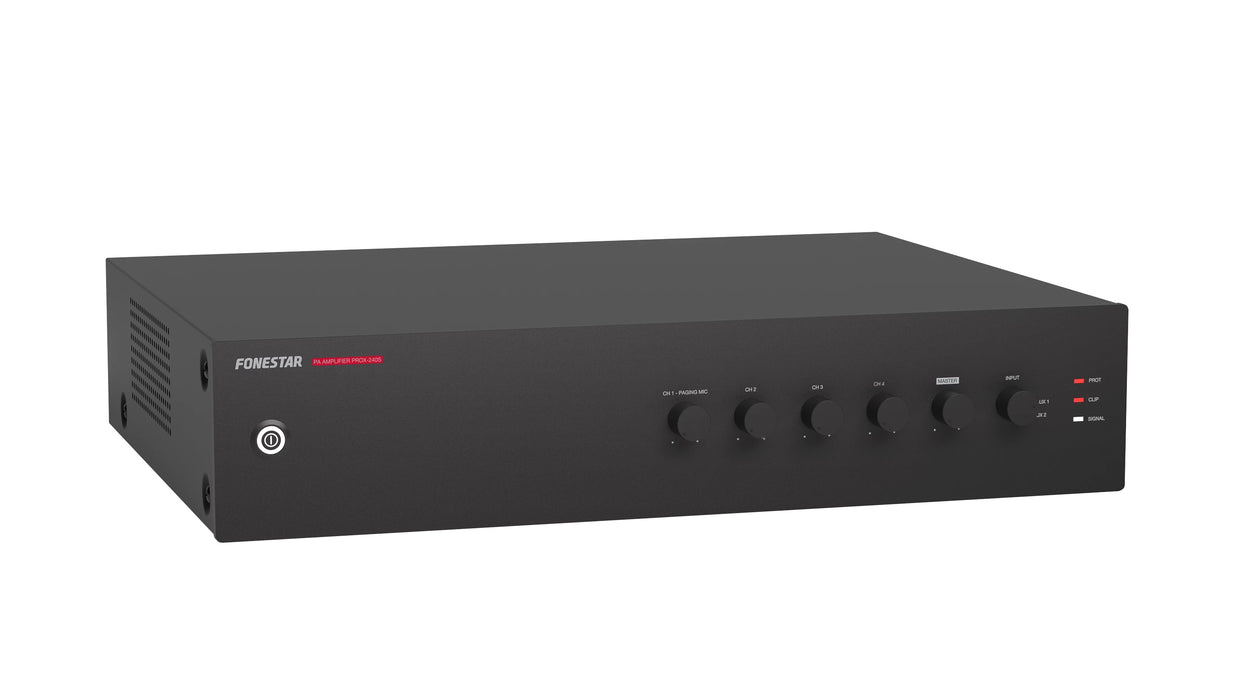

Fonestar PROX-240S 240W Mixer Amplifier, 100V/4Ω, 19" Rack Mountable
BLACK FRIDAY - Use code BF10 at checkout
Save an EXTRA 10% sitewide, including Sale items!
DETAILS
The Fonestar PROX-240S is a versatile and powerful mixer amplifier designed for commercial environments that demand high-quality sound performance and reliability.
With 240W of RMS power, it’s ideal for public address systems and background music in settings like retail spaces, restaurants, bars, places of worship, and offices. This amplifier supports both 100V line and low-impedance (4Ω) speakers, making it suitable for a wide variety of installation setups.
This unit includes three microphone inputs, each with switchable +48V phantom power, catering to both dynamic and condenser microphones. The dedicated paging microphone input offers VOX priority, allowing public address announcements to override background music as required. Additionally, two auxiliary inputs enable external devices such as media players, radios, and CD players to be connected with ease.
For added safety, the PROX-240S includes an emergency mute input, which automatically silences the 100V output when triggered, making it suitable for integration with fire alarms or emergency systems. Built to be user-friendly, its straightforward controls ensure simple operation for everyday use.
Fonestar PROX-240S Key Features:
- Output Power: 240W RMS, compatible with 100V line or 4Ω low-impedance speakers
- Paging Mic Input with VOX Priority: Automatically overrides background music for important announcements
- 3 Microphone Inputs: Includes switchable +48V phantom power for use with condenser microphones
- 2 Auxiliary Inputs: Connect external audio sources such as media players, radios, or CD players
- Emergency Mute Input: Overrides the 100V output when triggered by fire alarms or emergency systems
-
User-Friendly Design: Simple operation with tone and volume controls for ease of use
Fonestar PROX-240S is Ideal For:
- Retail Stores
- Restaurants & Cafés
- Bars & Pubs
- Offices & Conference Rooms
- Places of Worship
- Warehouses & Industrial Facilities
SPECS & DOWNLOADS
Fonestar PROX-240S PDF Spec Sheet > DOWNLOAD HERE
Fonestar PROX-240S Specifications
-
Power: 240 W RMS
-
Frequency Response: 40-20,000 Hz (-10 dB)
-
Distortion: THD+N: < 1% @ 1 kHz
-
S/N Ratio: >77 dB
-
Protections: Overcurrent, DC and short-circuit at the output
- Inputs: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock., CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector, Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω, Line signal level: 250 mV RMS (-12 dBV) / 100k Ω, 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω, 1 x emergency. Euroblock connector. Speaker line signal level 100 V, 1 x Mute (Emergency Priority) by contact closure. Euroblock connector
- Outputs: 1 line. 2 x RCA connector. 1.25 V RMS (+2 dBV) signal level, 100 V or 4 Ω speaker output. Connector screw terminals
-
Impedance: 4 Ω and 100 V line (83 Ω)
-
Operating Temperature: Operation: 0º ~ 40ºC
-
Maximum Humidity: 95%
- Power Supply: 230/115 V AC 50-60 Hz, 320 W, Fuse AC 230 V 3.15 A / 115 V 6 A
-
Dimensions: 433 x 89 x 360 mm depth. 2 U 19” rack
- Weight: 11.4 kg
