DETAILS

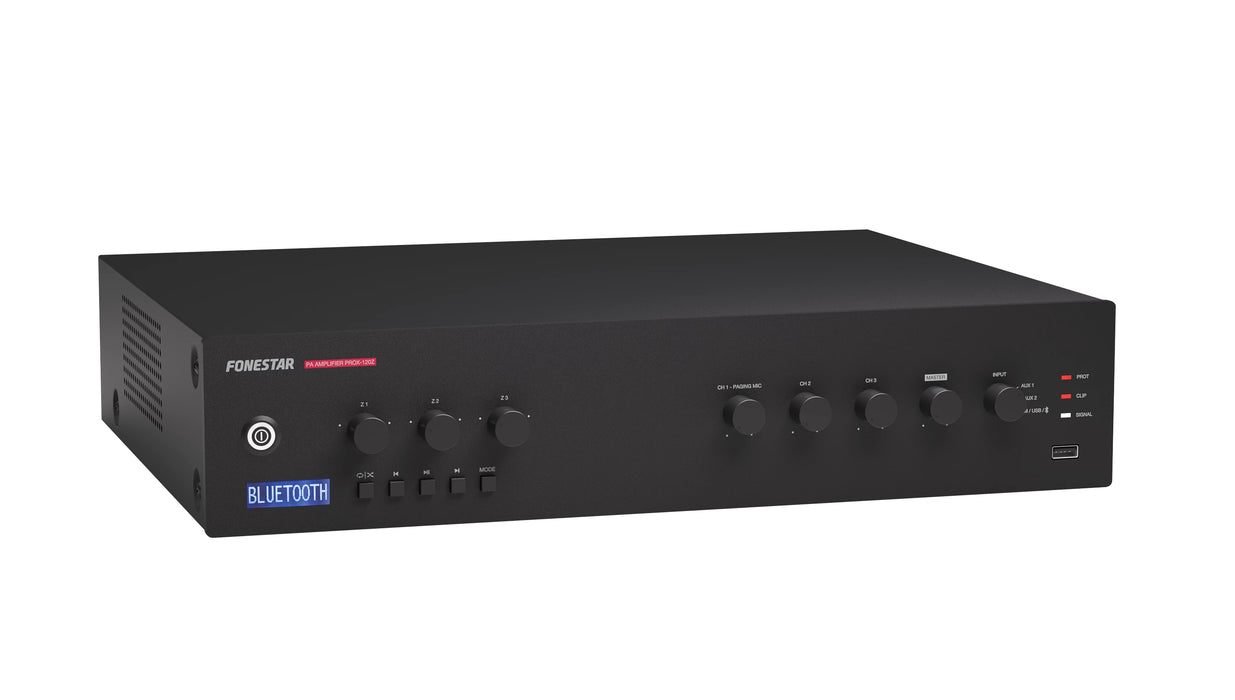

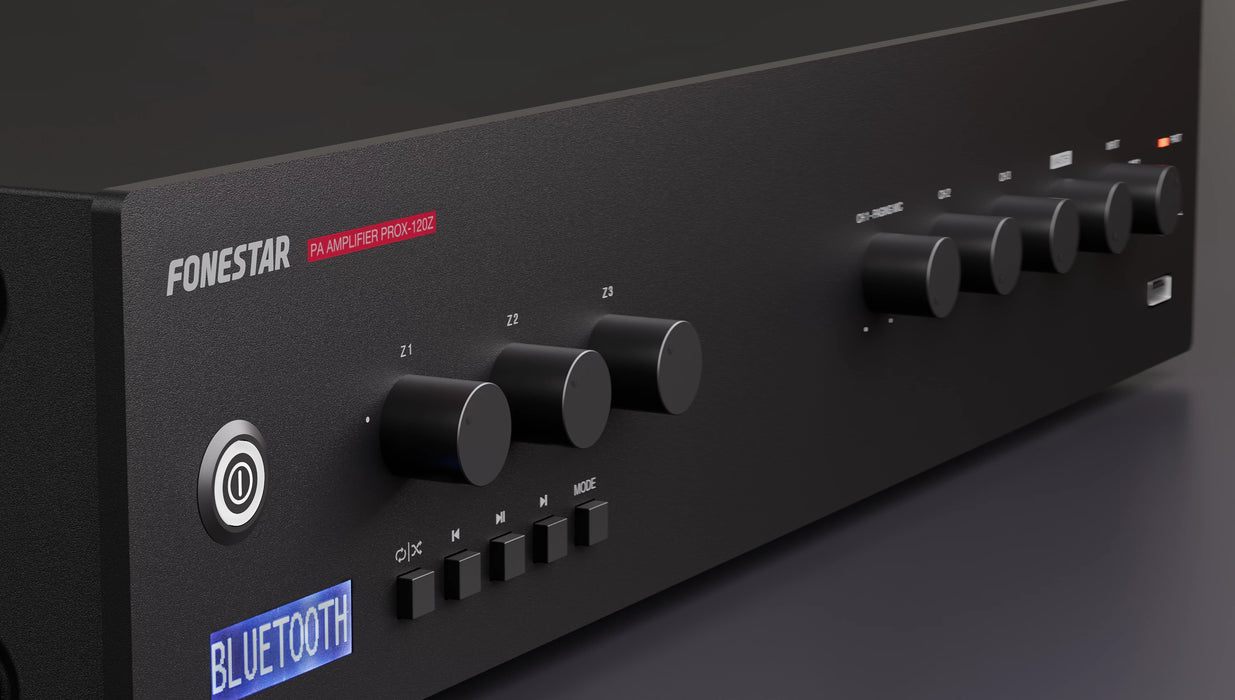

The Fonestar PROX-120Z 120W Mixer Amplifier is an exceptional solution for sound coverage in commercial environments that require multi-zone volume control.
Ideal for establishments such as offices, retail spaces, bars, restaurants, and places of worship, this amplifier combines high-quality performance with user-friendly features. It supports distributed audio installations with 100V loudspeakers and low impedance output, ensuring reliable sound distribution throughout any venue.
This versatile amplifier features a built-in Bluetooth® media player, FM tuner, and USB port, allowing for seamless background music playback. With three zone outputs and individual volume control, you can easily customise the audio experience in different areas, making it perfect for venues that host diverse activities or atmospheres. The auto-play function activates your selected audio source upon powering on, providing an effortless listening experience.
The PROX-120Z includes a dedicated paging mic input with VOX priority over channels 1 to 3, ensuring that important public address announcements can be made over any background music. Each microphone input is equipped with switchable +48V phantom power for use with condenser microphones, providing flexibility for various audio applications.
Additionally, the amplifier features two auxiliary inputs for connecting external audio sources, such as multimedia players, radios, or CD players. The emergency mute input ensures safety by overriding the 100V output when a signal is detected from systems like fire alarms or lockdown systems.
With its modern and discreet design, the PROX-120Z is not only functional but also aesthetically pleasing, making it suitable for desktop use or 19” rack installation. Its robust construction and secure connections ensure low maintenance and long-lasting performance.
Fonestar PROX-120Z Key Features:
- Built-in Bluetooth®, USB, and FM player for versatile music playback.
- Three zone outputs with individual volume control for tailored sound levels.
- Dedicated paging mic input with VOX priority for important announcements.
- Switchable +48V phantom power on all mic inputs for condenser microphones.
- Emergency mute input to override outputs for safety announcements.
Fonestar PROX-120Z is Ideal For:
- Offices
- Retail Spaces
- Places of Worship
- Warehousing
- Bars and Restaurants
SPECS & DOWNLOADS
Fonestar PROX-120Z PDF Spec Sheet > DOWNLOAD HERE
Fonestar PROX-120Z Specifications
-
Power: 120 W RMS
-
Frequency Response: 40-20,000 Hz (-10 dB)
-
Distortion: THD+N: < 1% @ 1 kHz
-
S/N Ratio: >77 dB
-
Protections: Overcurrent, DC and short-circuit at the output
- Inputs: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock., CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector, Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω, Line signal level: 250 mV RMS (-12 dBV) / 100k Ω, 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω, 1 x emergency. Euroblock connector. Speaker line signal level 100 V, 1 x Mute (Emergency Priority) by contact closure. Euroblock connector
-
Outputs: 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV)
100 V or 4 Ω speaker output, or 3 100 V speaker zones with 5-position volume selector and OFF. Connector screw terminals -
Impedance: 4 Ω and 100 V line (83 Ω)
-
Operating Temperature: Operation: 0º ~ 40ºC
-
Maximum Humidity: 95%
- Power Supply: 230/115 V AC 50-60 Hz, 320 W, Fuse AC 230 V 3.15 A / 115 V 6 A
- Weight: 9.6 kg
