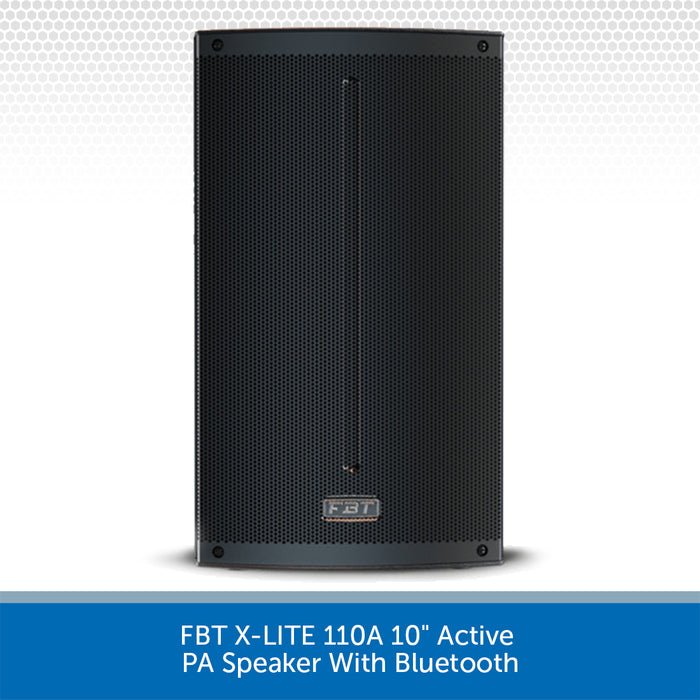

FBT X-LITE 110A 10" Active PA Speaker With Bluetooth
DETAILS
The FBT X-LITE 110A is a professional 10-inch Active PA speaker with Bluetooth connectivity.
The FBT XLITE 110A speaker features an integrated 3-channel mixer with a lightweight, yet rugged gas-injected molded polypropylene cabinet construction. Available in a black finish, the FBT XLITE 110A series speakers provide fixed installations with an elegant design that blends into any decor.
The asymmetrical shape of the FBT XLITE 110A cabinet also allows for use as a powered floor stage monitor.
The FBT XLITE 110A has a two-way design incorporating a 10” low-frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 58Hz - 20kHz the FBT XLITE 110A speaker provides high-fidelity sound for both speech and music applications with a maximum SPL of 127dB.

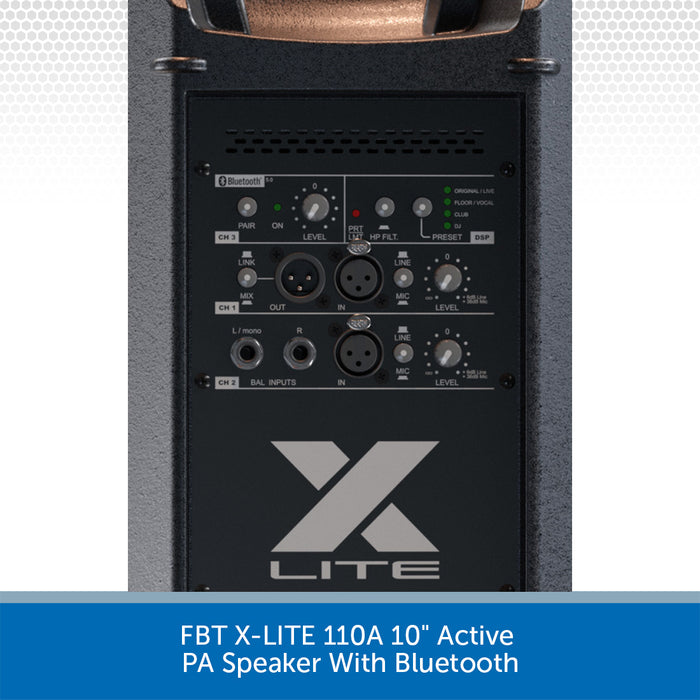

The bi-amplified FBT XLITE 110A active speaker features a 1200W low-frequency amp and a 300W high-frequency amp. The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led.
4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 110A speaker to be surface mounted on walls or ceilings. A standard 35mm speaker stand socket allows the FBT XLITE 110A to be mounted on speaker stand.
FBT X-LITE 110A Active Speaker Key Features:
- 2 way bi-amplified bass reflex system
- Polypropylene moulded enclosure
- Custom 10" woofer (LF) / 2.5" voice coil
- 1" throat / 1.4" voice coil HF compression driver
- 1200w / 300w Built-In amplifier (LF / HF)
- Bluetooth 5.0
- 3-Channel mixer
- 4 DSP Presets
- 30 degrees & 45 degrees monitor tapers
- Universal switch mode power supply 100-240 VAC
- M10 rigging points
Typical Applications:
- Band P.A.
- Personal monitor
- Small theatres
- Auditoriums
- Piano bar
- DJ
- Stage monitor
- Conference rooms
- Fixed installations in live clubs
- Pubs
- Gyms
SPECS & DOWNLOADS
Download the FBT X-LITE 110A PDF Data Sheet HERE >
Download the FBT X-LITE 110A PDF User Manual HERE >
FBT X-LITE 110A Specifications
- Configuration: 2 Way
- Frequency response: 58Hz - 20KHz
- Low frequency woofer: 10" - 2.5" VC
- High frequency driver: 1" - 1.4" VC
- Maximum SPL cont/peak: 123/127 dB
- Dispersion: 90 x 60
- Input impedance: 22
- Input connector: XLR IN/OUT
- Net Dimension (WxHxD): 300 x 536 x 301.5
- Net Weight: 13 KG
- Transport Dimension (WxHxD): 370 x 615 x 380
- Transport Weight: 14.8 KG
- Built in amplifier peak: LF 1200w HF 300w
