FBT J12A 12" 450W Active PA Speaker (Available in Black or White)

by FBT
Original price £499.00 (inc. VAT) - Original price £499.00 (inc. VAT)
Original price £499.00 (inc. VAT)
£499.00 (inc. VAT)
£499.00 (inc. VAT) - £499.00 (inc. VAT)
Current price £499.00 (inc. VAT)
SKU 37714
Colour: Black
 DETAILS

The FBT J12A is a 12-inch 450W active PA speaker designed for portable and installed audio applications.

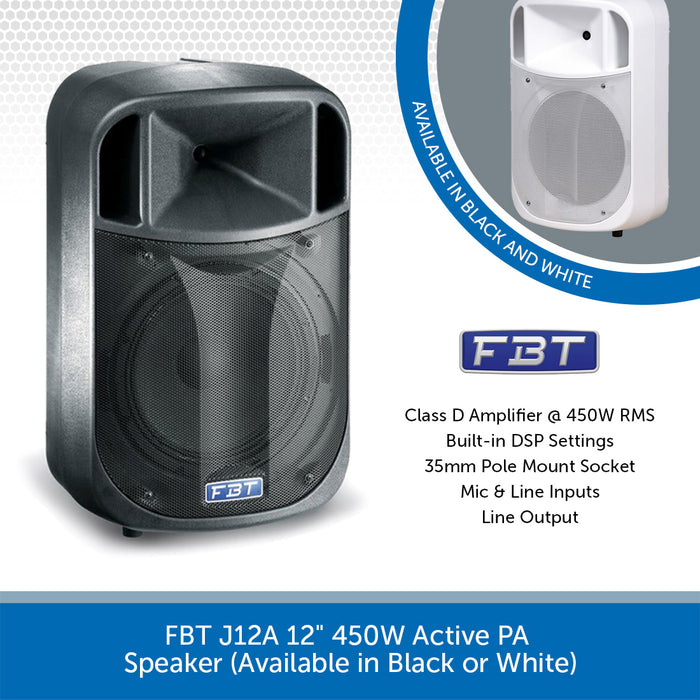

The FBT J12A active PA speaker features a lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in a black & white finish the FBT 12A speakers' modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

The FBT J12A is has a two-way design incorporating a 12" low-frequency woofer and 2" HF custom compression driver coupled to a 90°H x 60°V horn. The active internal crossover is at a fixed frequency of 2kHz. With a frequency range of 50Hz - 20kHz the FBT J12A speaker provides high-fidelity sound for both speech and music applications with a maximum SPL of 128dB. A front face steel grille protects the speaker from external damage.

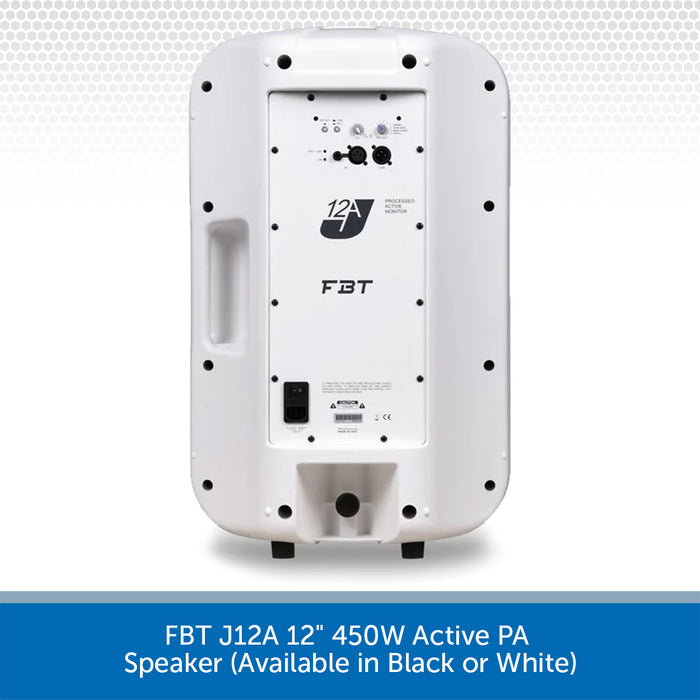

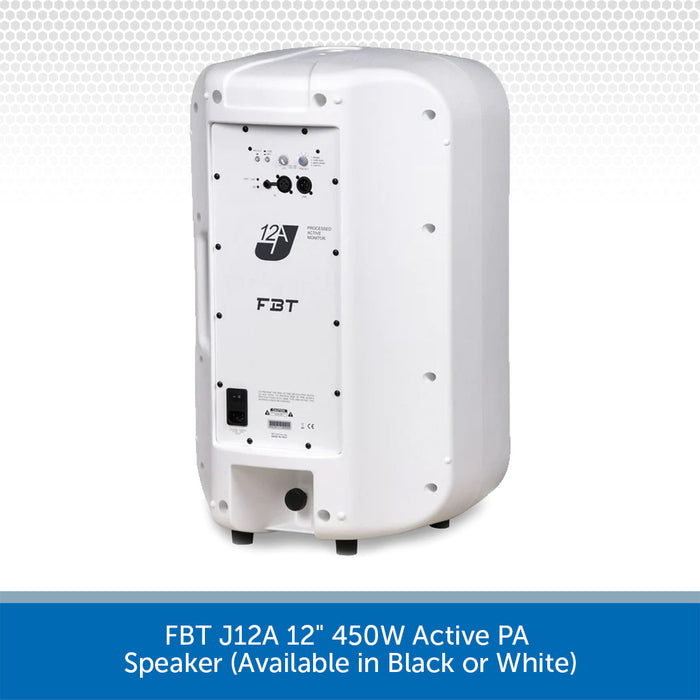

The bi-amplified FBT J12A active speaker features a 250W RMS low-frequency amp and a 50W RMS high-frequency amp. The control panel features a level control, HP filter switch, mic/line selector, preset switch (original, floor/vocal, boost/lounge, club/dj)) led power on, protection/limiter led indicators, a balanced XLR and Jack in, a balanced XLR link out .

The two M10 fly points built into the cabinet along with the optional mounting brackets allow the FBT J12Aspeaker to be surface mounted on walls or ceilings. A standard 1,38" speaker stand socket allows the FBT J12A to be mounted on a speaker stand.

FBT J12A Active PA Speaker Key Features:

  • 320mm (12’’) custom woofer with improved efficiency and linearity
  • 25mm (1”) HF custom compression driver
  • 90°H x 60°V constant directivity horn
  • 2-way bi-amplified system in Bass-Reflex
  • 350Wrms class D amplifier for LF and 100Wrms for HF
  • High efficiency switch mode power supply
  • On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
  • 4 DSP preset for maximum acoustical flexibility
  • Polypropylene enclosure with integrated handle
  • 2 x M10 anchoring points
  • 35mm Internal top hat

Typical Applications:

  • Band P.A.
  • Personal monitor
  • Small theatres
  • Auditoriums
  • Piano bar
  • DJ
  • Stage monitor
  • Conference rooms
  • Fixed installations in live clubs
  • Pubs
  • Gyms
    SPECS & DOWNLOADS

    Download the FBT J12A PDF Data Sheet HERE >

    Download the FBT J12A PDF User Manual HERE >

    FBT J12A Specifications

    • Configuration: 2 Way
    • Frequency response: 55Hz - 20kHz
    • Low frequency woofer: 12
    • High frequency driver: 1
    • Maximum SPL cont/peak: 123 / 127db
    • Dispersion: 90 x 60 (HxV)
    • Input impedance: 8 ohm
    • Crossover frequency: 2 kHz
    • Input connector: 2x Speakon NL4 In & Thru
    • Net Dimension (WxHxD): 410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
    • Net Weight: 14.1kg / 31.8lb
    • Transport Dimension (WxHxD): 495 x 740 x 475mm / 19.48 x 26.10 x 18.7in
    • Transport Weight: 17.2kg / 37.91lb
    • AC Power requirements: 400VA
    • Built-in amplifier LF/HF: 350/50W RMS
    • Built-in amplifier peak LF/HF: 700/200W
    • Power cord: 5m EC




    }
