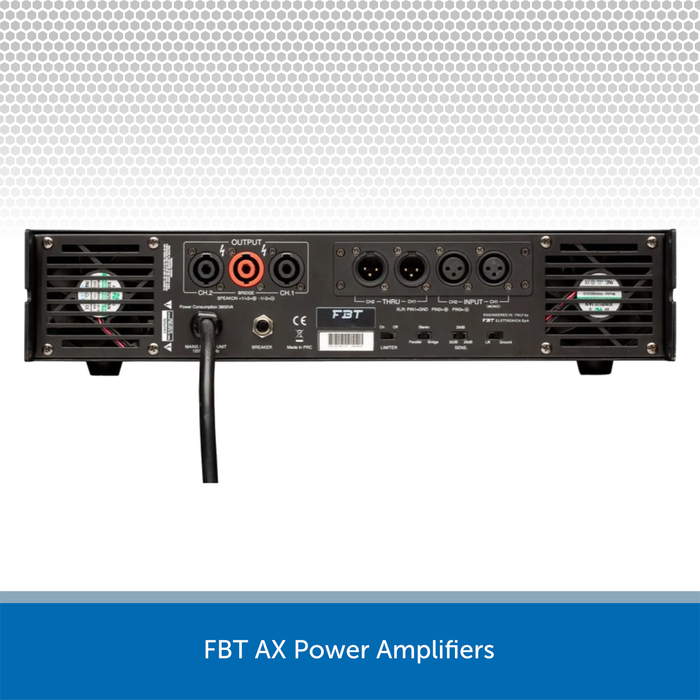

FBT AX 2000 2-Channel Power Amplifier, 2 x 1000W, 4-8 Ohms

by FBT
£655.00 (inc. VAT)
SKU 39696
DETAILS

The FBT AX 2000 is a 2-Channel Stereo Power Amplifier designed for foreground music/PA applications.

Delivering 2 x 1000W @ 4 Ohms or 1 x 2000W @ 8 Ohms Bridged, the AX 2000 is ideal for live sound speaker systems that require a powerful punch such as in bars, clubs, theatres, halls, and environments alike.

The FBT AX 2000 has been designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.

FBT AX 2000 Key Features

  • Both channel driven 8 ohm 1% THD Continous/impulsive: 630/650W
  • Both channel driven 4 ohm 1% THD Continous/impulsive: 840/1000W
  • Bridge 8ohm 1% THD: 1680/2000W
  • Input impedance: 20K balanced
  • Signal to noise ratio S/N: >100dB
  • Total harmonic dist. (1kHz-4ohm): <0.03%
  • Frequency response: 20Hz-40kHz -6dB
  • Damping Factor: >400
  • Class: H - 2 step
  • Maximum power consuption: 2400va
  • Power supply voltage: 120 or 230 vac 50/60 Hz
  • Protections: Short circuit / thermal
  • Connectors: In: XLR/Jack out: Speakon/Binding post


SPECS & DOWNLOADS

FBT AX 2000 Specifications

  • Power Output @ 4 Ohms: 2 x 1000W RMS
  • 8 Ohms Bridged: 2000W RMS
  • Frequency Response: 20Hz-40Khz
  • Dimensions: 482 x 88 x 290mm

            FBT AX 1200 - PDF Downloads

            Download the User Manual HERE
