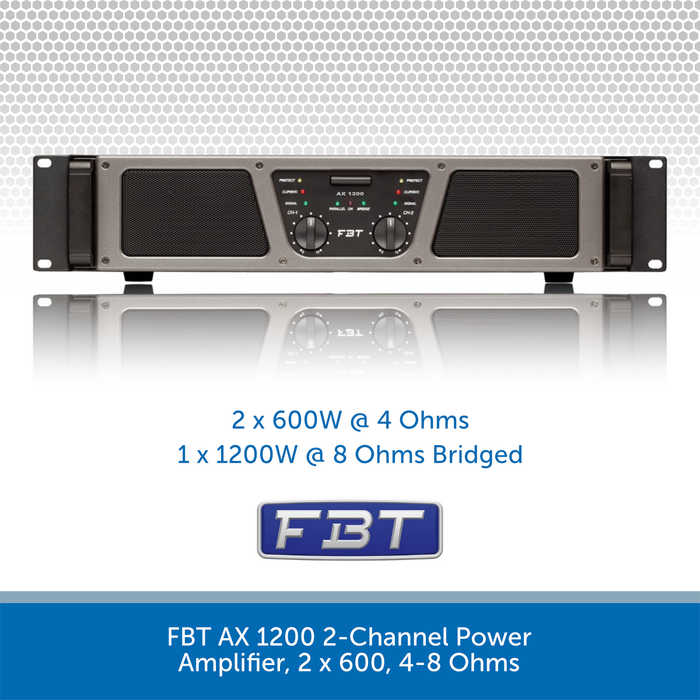

FBT AX 1200 2-Channel Power Amplifier, 2 x 600W, 4-8 Ohms

by FBT
Original price £455.00 (inc. VAT) - Original price £455.00 (inc. VAT)
Original price £455.00 (inc. VAT)
£455.00 (inc. VAT)
£455.00 (inc. VAT) - £455.00 (inc. VAT)
Current price £455.00 (inc. VAT)
SKU 39695
DETAILS

The FBT AX 1200 is a 2-Channel Stereo Power Amplifier designed for foreground music/PA applications.

Delivering 2 x 600W @ 4 Ohms or 1 x 1200W @ 8 Ohms Bridged, the AX 1200 is ideal for small live sound speaker systems that require a powerful punch such as in bars, clubs, theatres, halls, and environments alike.

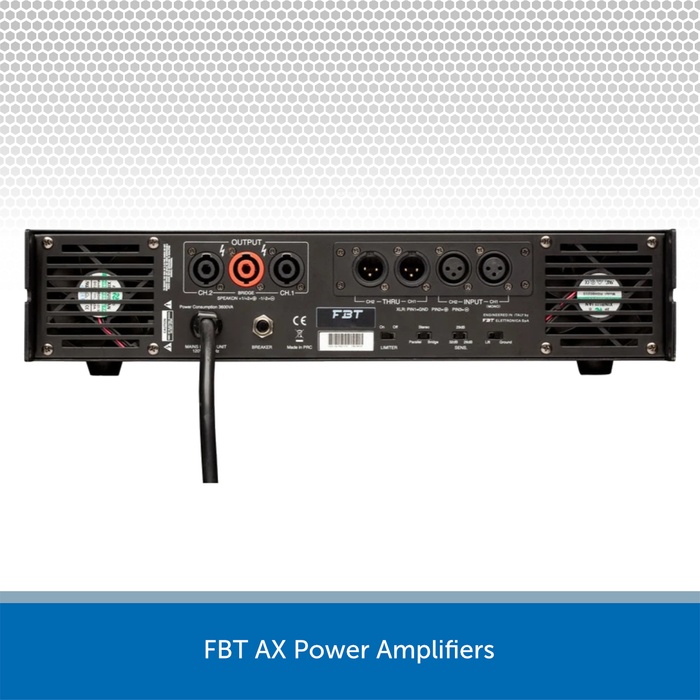

The FBT AX 1200 has been designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.

FBT AX 1200 Key Features

  • Both channel driven 8 ohm 1% THD Continous/impulsive: 340/350W
  • Both channel driven 4 ohm 1% THD Continous/impulsive: 460/600W
  • Bridge 8ohm 1% THD: 920/1200W
  • Input impedance: 20K balanced
  • Signal to noise ratio S/N: >100dB
  • Total harmonic dist. (1kHz-4ohm): < 0.03%
  • Frequency response: 20Hz-40Khz -6dB
  • Damping Factor: > 400
  • Class: H - 2 step
  • Maximum power consuption: 1300VA
  • Power supply voltage: 120 or 230 Vac 50/60Hz
  • Protections: Short circuit / thermal
  • Cooling: in: XLR/Jack out: Speakon/Binding oist


SPECS & DOWNLOADS

FBT AX 1200 Specifications

  • Power Output @ 4 Ohms: 2 x 600W RMS
  • 8 Ohms Bridged: 1200W RMS
  • Frequency Response: 20Hz-40Khz
  • Dimensions: 482 x 88 x 290mm

            FBT AX 1200 - PDF Downloads

            Download the User Manual HERE
