Electro-Voice PA Sound System for Masjid & Mosques - EVID 4.2T Speakers
Complete PA Sound System with Electro-Voice Loudspeakers ideal for speech, prayer & music applications in Masjids, Mosques, temples & other places of worship.

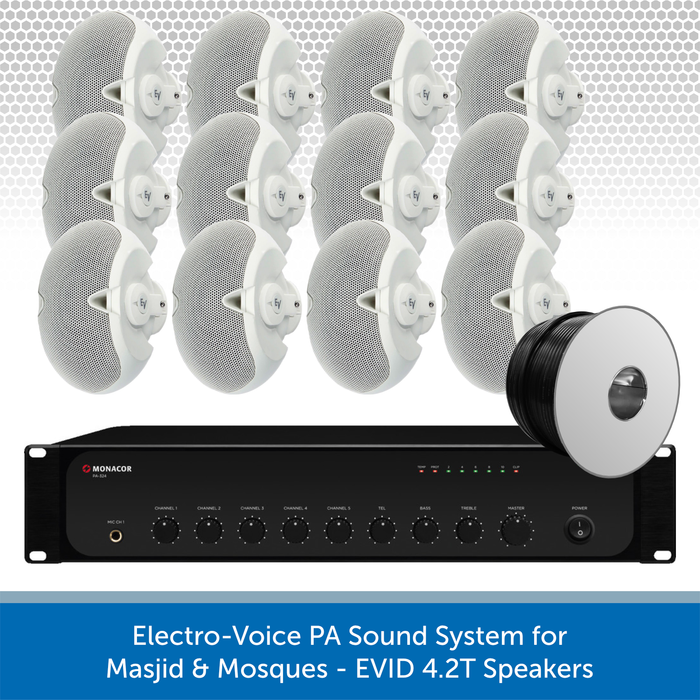

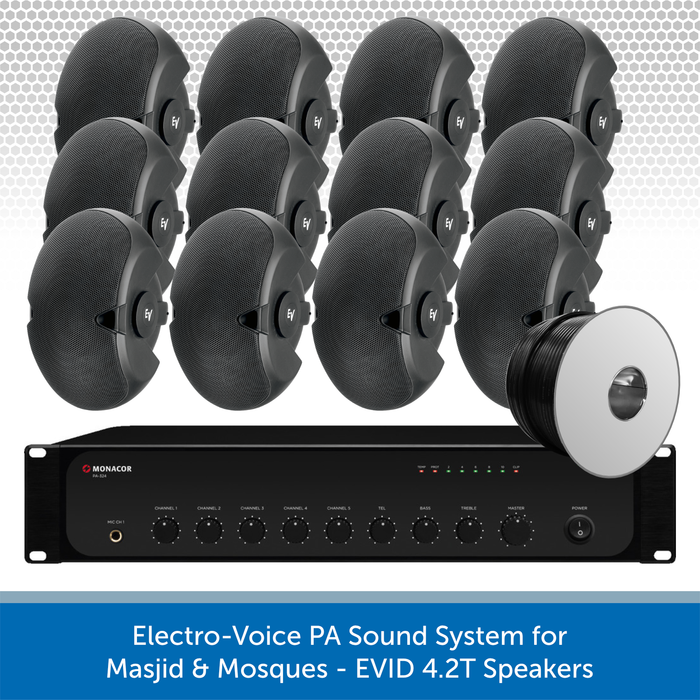

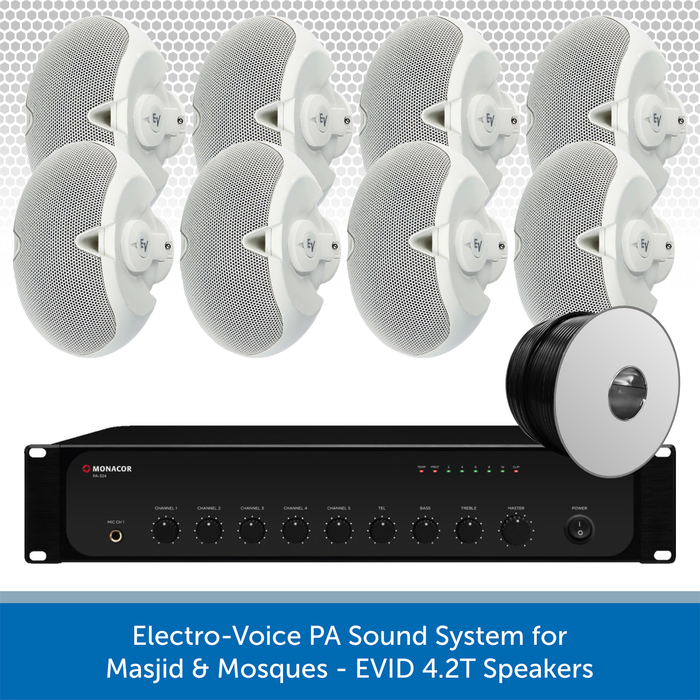

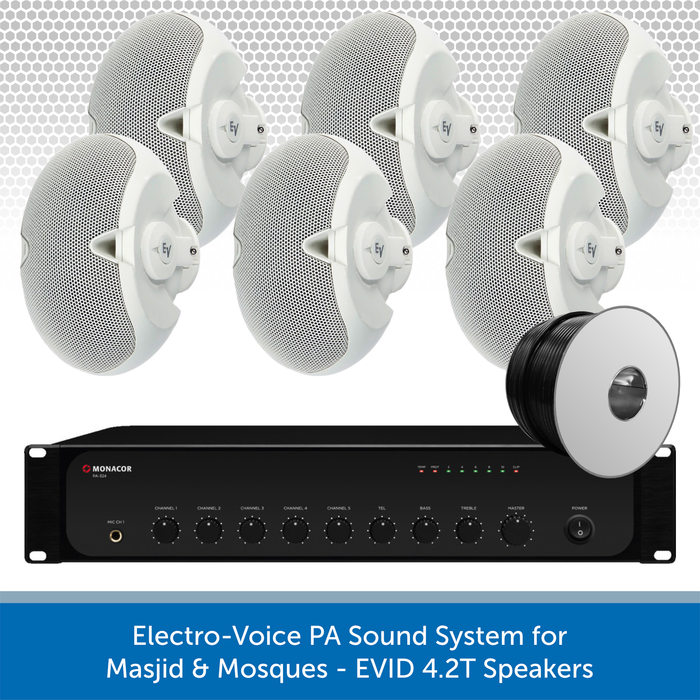

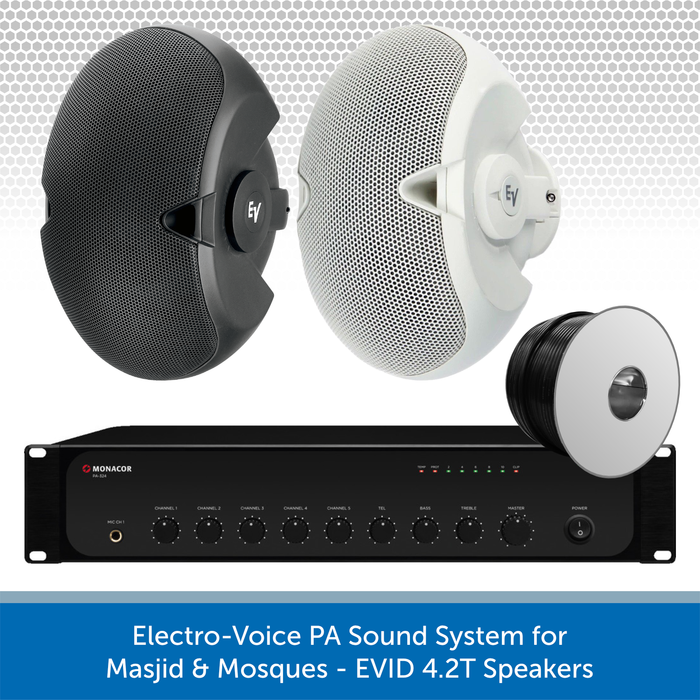

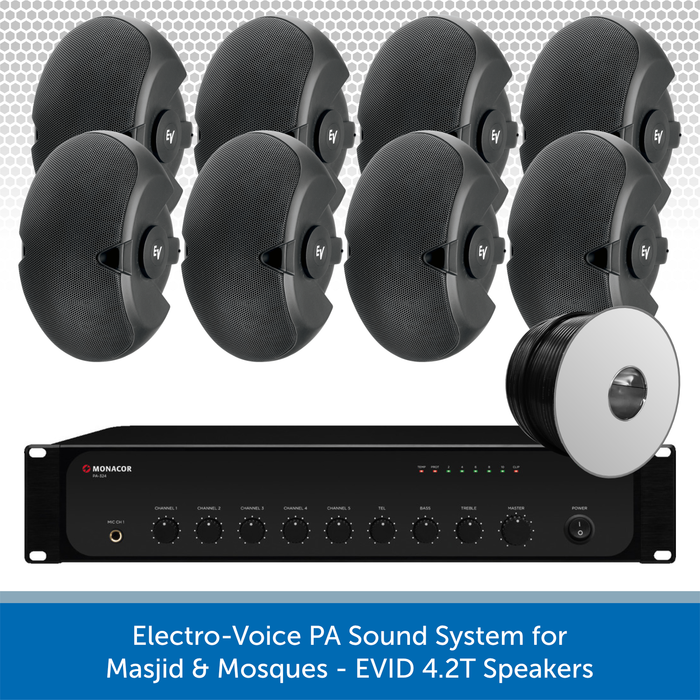

Our Masjid speaker system comes complete with a 240W 100V Mixer Amplifier, a choice of 6, 8 or 12 Electro-Voice EVID 4.2T Loudspeakers, and a 100m drum of high-quality 2-core speaker cable.
The Electro-Voice EVID 4.2T Loudspeakers deliver a full-range sound whilst retaining an extremely compact design; ideal for fixed PA installations into any Mosque, Masjid or temple. The 100V wall-speakers are able to deliver a 110-dB sound level (SPL) over a wide coverage area. The EVID 4.2T speakers are supplied with a Strong-Arm Mount for easy, flexible aiming and are housed in a weather-resistant ABS enclosure so they can be installed outdoors.
The included 240W Mixer Amplifier has 5-input channels which can all be mixed together and heard at the same time. Inputs include RCA, 1/4" Jack & XLR which allow for the connection of mixing desks, laptops/PC's, CD players & microphones, etc.
Installing our Electro-Voice Masjid PA System is extremely easy and should be straight-forward for any electrical installer to fit. The speakers can be wired to the amplifier in a 'daisy-chain' fashion from one to another, or wired back on separate runs if easier.
- 1 x Monacor 240W 100V Mixer Amplifier
- 6, 8 or 10 x Electro-Voice EVID 4.2T 100V Wall Speakers (Black or White)
- 100m High-Quality 2-Core Speaker Cable
***For the 12 speaker system, we recommend setting the speakers to 15W maximum to avoid putting to much stress on the amplifier.
If you require any further assistance regarding our Masjid PA Sound System range just contact us on 02476 369898 and one of our experts will be happy to help.
Monacor Mixer Amplifier
- Channels: 6
- Power rating: 240 W
- Peak music power output (PMAX): 340 W
- Inputs: 5 mV/600 ? (mic), 350 mV/10 k? (aux), 1 V/10 k? (telephone)
- Frequency range: 50-16,000 Hz
- Equalizer bass: ± 10 dB/100 Hz
- Equalizer treble: ± 10 dB/10 kHz
- S/N ratio: 66 dB (mic), 80 dB (aux)
- THD: < 0.5%
- Power supply: ~ 230 V/50 Hz/740 VA
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 740 VA
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 430 x 88 x 380 mm, 2 RS
- Width: 430 mm
- Height: 88 mm
- Depth: 380 mm
- Rack spaces, RS: 2
- Weight: 16.6 kg
- Connections: 1 x 6.3 mm/XLR (combo), 1 x 6.3 mm jack (mic 1), 2 x 6.3 mm jack (mic 2-3), 2 x RCA L/R (aux 1-2), screw terminals (telephone), 1 x RCA L/R (line out)
- Inputs Microphone: mic/line: 4 x XLR/6.3 mm (combo), 4 x plug-in screw terminal Aux, phono: 2 x RCA L/R (aux 1/2), 2 x plug-in screw terminal
Electro-Voice EVID 4.2T Speakers
- Chassis Size: 101.6mm
- Colour: Black or White
- Input Connections: Spring Terminal
- Speaker Type: Full-range, Mid-High, Two-Way
- Transformer Taps: 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8 Ω Bypass
- Frequency Response (-10 dB): 65 - 20000 Hz
- Internal Crossover: Yes
- Sensitivity 1 W/1 m: 89 dB
- Max. SPL/1m (calc): 115 dB
- Coverage (Nominal -6 dB) H: 120 °
- Coverage (Nominal -6 dB) V: 80 °
- System Power Handling (Continuous/Program/Peak): 100//400 Watts
- LF Transducer: Two 4-inch
- LF Power Handling: Two 4-inch Watts
- HF Power Handling: 1-inch Watts
- HF Transducer: 1-inch
- Nominal Impedance (Passive): 8Ω
- Minimum Impedance: 6Ω
- Outdoor: Yes
- Height: 309.89mm
- Width: 175.26mm
- Depth: 215.9mm
- Weight: 3.9kg
Double Insulated Speaker Cable Specifications
- CSA: 2 x 0.75mm²
- Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
- Dimensions: 7mmØ
- Current: 6A max.
- Sheath: Black PVC
- Length: 100m
