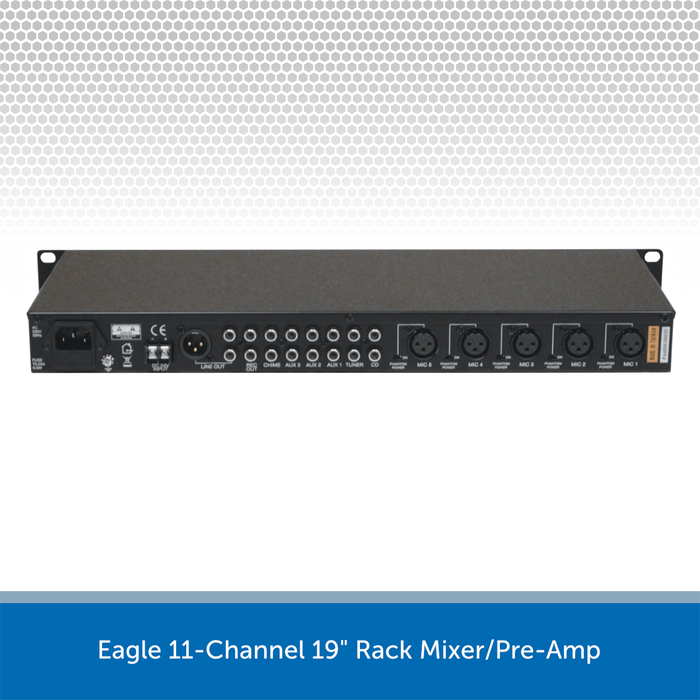

Eagle 11-Channel 19" Rack Mixer/Pre-Amp

by Eagle
£105.00 (inc. VAT)
SKU P648A
DETAILS

Eagle P648A 11-Channel 19" Rack Mixer designed for paging and music applications.

It accepts 11 input sources covering 5x Mic, 3x Aux, CD, Tuner, and Chime input. The signal from Mic 1, Mic 2, and the Chime input will mute the signal from other channels.

48V Phantom Power on microphone inputs.

SPECS & DOWNLOADS

Eagle P648A Rack Mixer Specifications

  • Colour Black
  • Inputs MIC: 15: 1 mV @ 600 Ohm, Balanced (with Phantom power switch) AUX: 13: 150 mV @1k Ohm, Unbalanced CD: 150 mV @1k Ohm, Unbalanced Tuner: 150 mV @1k Ohm, Unbalanced Chime: 1 V @10k Ohm, Unbalanced
  • Power Input 230 VAC @ 50 Hz
  • Weight (kg) 4
  • Product Dimensions (mm) 45x483x200
  • Net weight (kg) 3.24
